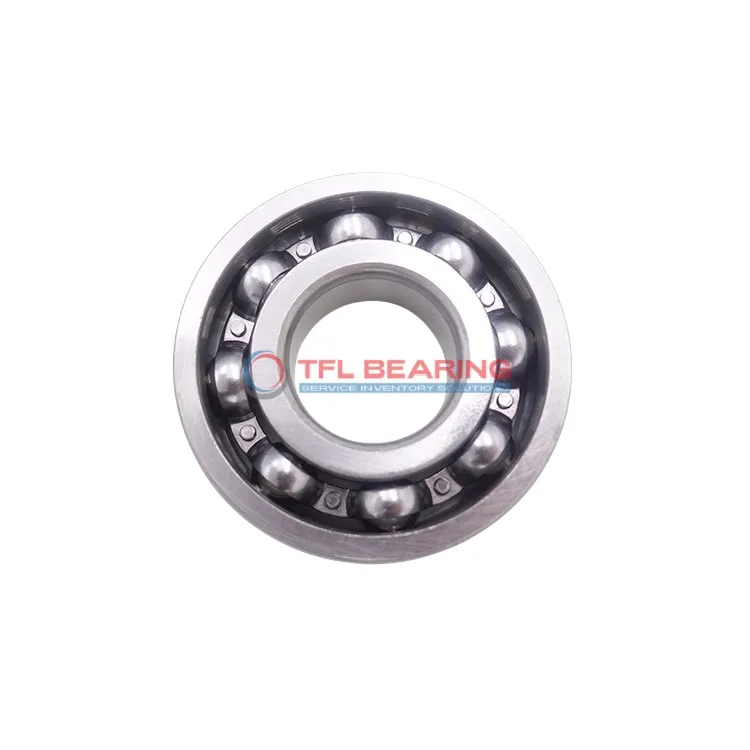

Single Row Deep Groove Ball Bearings 6019

Single Row Deep Groove Ball Bearings 6019

The 6019 is a single-row deep groove ball bearing with a 95mm bore and 145mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 14320 lbf and operates smoothly at speeds up to 6000 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. Suitable for temperatures ranging from -30°C to 120°C, it’s versatile for various conditions.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. Perfect for machinery like pumps or electric motors where radial loads are common.

Compliant with RoHS and REACH standards, it ensures safe and eco-friendly use. Its compact 24mm width makes it easy to fit into tight spaces without sacrificing performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6019
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 95 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 145 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 24 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 14320 lbf
  • Static Radial Load 12140 lbf
  • Max Speed 6000 rpm
  • price（$） 36.72
Single Row Deep Groove Ball Bearings 6019 dimension drawing
Download DWG Download PDF

Features

How Does 6019 Bearing Reduce Friction?

6019 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The chrome steel construction ensures durability while minimising friction during operation.

With a dynamic radial load capacity of 14320 lbf, it handles demanding applications efficiently.
Its open design allows for easy maintenance and lubrication, extending its service life.

The P6 tolerance class ensures precise performance, making it suitable for high-accuracy tasks.
Operating between -30° to 120°C, it remains reliable in various temperature conditions.

Application

Industrial Uses of 6019 Bearing
6019 Bearing is commonly used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads efficiently. The chrome steel construction ensures durability in demanding environments.

What Makes 6019 Bearing a Preferred Choice?
In automotive applications, 6019 Bearing fits well in wheel hubs and transmissions, offering smooth performance under high speeds. Its metric sizing makes it versatile for various vehicle designs.

Perfect Fit for Automation: 6019 Bearing
For automated systems, 6019 Bearing works reliably in robotic arms and conveyor belts, thanks to its precise P6 tolerance. The open seal design allows for easy lubrication and maintenance.

Medical vs Industrial: Where 6019 Bearing Excels
In medical devices like centrifuges, 6019 Bearing provides stable rotation with minimal noise. Its stainless steel cage resists corrosion, making it suitable for sterile environments.

Where to Use 6019 Bearing
In household appliances like washing machines, 6019 Bearing ensures quiet and efficient operation. The wide temperature range makes it adaptable to different usage conditions.
