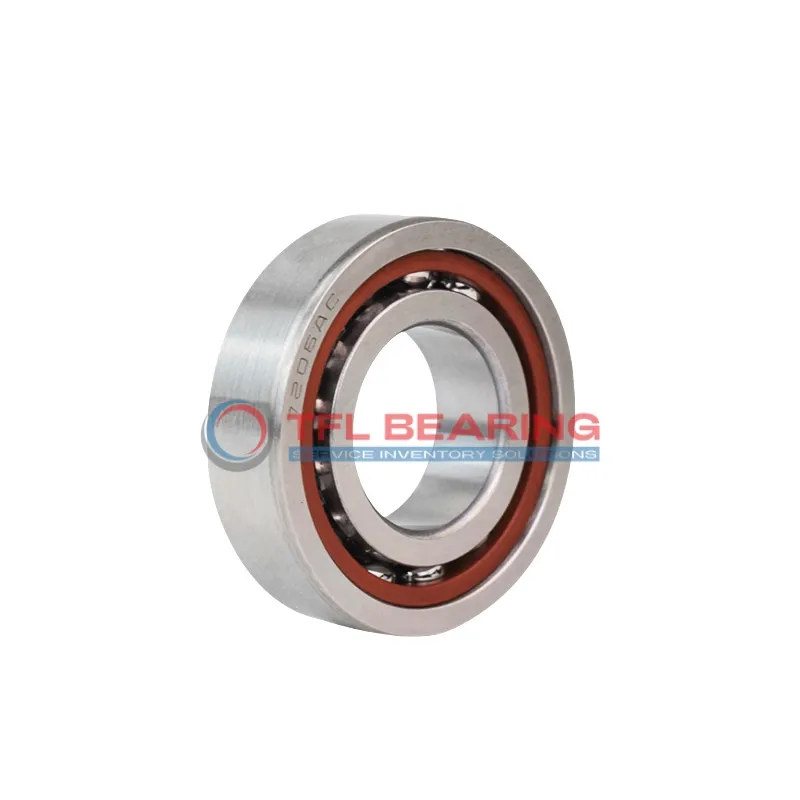

Single Row Angular Contact Ball Bearings (General) 7305 BEGBP

Brand: TFL Bearing Interchangeable: SKF 7305 BEGBP 25 mm × 62 mm × 17 mm Metric Open
Part number: 7305 BEGBP
Single Row Angular Contact Ball Bearings (General) 7305 BEGBP
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia25 mm
Bore Dia Tolerance-0.008mm to 0
Outer Dia62 mm
Outer Dia Tolerance-0.011mm to 0
Width17 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)39.75 mm
External Diameter On Inner Ring (Small Side Face)32.38 mm
Internal Diameter On Outer Ring48.25 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load5,962 lbf
Static Radial Load3,442 lbf
Temperature Range-30° to 110 °C
Max Speed15,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle40°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)26.8 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight0.23 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 7305 BEGBP is a single-row angular contact ball bearing with a 25mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 5962 lbf and spins smoothly at speeds up to 15000 RPM.

Its 40° contact angle efficiently manages combined loads, while the open design allows easy lubrication. The nylon cage reduces friction, ensuring quiet operation.

This bearing suits applications like pumps or gearboxes where angular loads are present. It works well in temperatures from -30°C to 110°C and meets P6 precision standards.

Weighing 0.23kg, it’s lightweight yet durable. Compliant with RoHS and REACH, it’s a reliable choice for replacements, interchangeable with SKF models. Ideal for industrial machinery requiring precise performance.

Features

Performance Features of 7305 BEGBP Bearing

7305 BEGBP Bearing features a 40° contact angle, optimised for handling combined radial and axial loads.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.

The nylon cage in 7305 BEGBP Bearing reduces friction and noise, making it suitable for high-speed operations.
With a maximum speed of 15,000 rpm, it delivers reliable performance in various industrial settings.

7305 BEGBP Bearing operates efficiently within a temperature range of -30° to 110°C.
Its P6 tolerance class (ABEC-3) guarantees precision and consistent performance over time.

The open design of 7305 BEGBP Bearing simplifies maintenance and lubrication.
Its dynamic radial load capacity of 5962 lbf ensures long-lasting operation under heavy loads.

Application

Industrial Uses of 7305 BEGBP Bearing
7305 BEGBP Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. The open design and nylon cage make it suitable for high-speed operations up to 15,000 rpm.

In automotive applications, 7305 BEGBP Bearing supports components like wheel hubs and transmissions, ensuring smooth performance under angular loads. Its P6 tolerance class provides the precision needed for reliable vehicle operation.

For automation systems, 7305 BEGBP Bearing is a solid choice for robotic arms and conveyor belts, thanks to its durable chrome steel construction. The lubricated design reduces friction, extending service life in continuous-use environments.

Where Is 7305 BEGBP Bearing Used?
You’ll often find 7305 BEGBP Bearing in industrial fans and pumps, where its high-speed capability and load handling shine. The metric sizing ensures compatibility with a wide range of European machinery.

In household appliances like washing machines, 7305 BEGBP Bearing provides quiet and efficient operation. Its temperature range of -30° to 110°C makes it adaptable to various environmental conditions.

Optimized for Performance: 7305 BEGBP Bearing
7305 BEGBP Bearing excels in precision equipment like dental drills, where its ABEC-3 tolerance ensures accurate performance. The chrome steel balls and rings offer durability in demanding medical applications.

For 3D printers, 7305 BEGBP Bearing’s low friction and high-speed capability contribute to smooth, precise movements. The lightweight nylon cage helps reduce overall machine noise during operation.

Light-Duty vs Heavy-Duty: Best Uses for 7305 BEGBP Bearing
In light-duty applications like office printers, 7305 BEGBP Bearing provides reliable performance with minimal maintenance. Its compact size and weight make it ideal for space-constrained designs.

For heavy-duty industrial gearboxes, 7305 BEGBP Bearing handles significant radial and axial loads without compromising speed. The robust construction ensures longevity even in harsh operating conditions.
