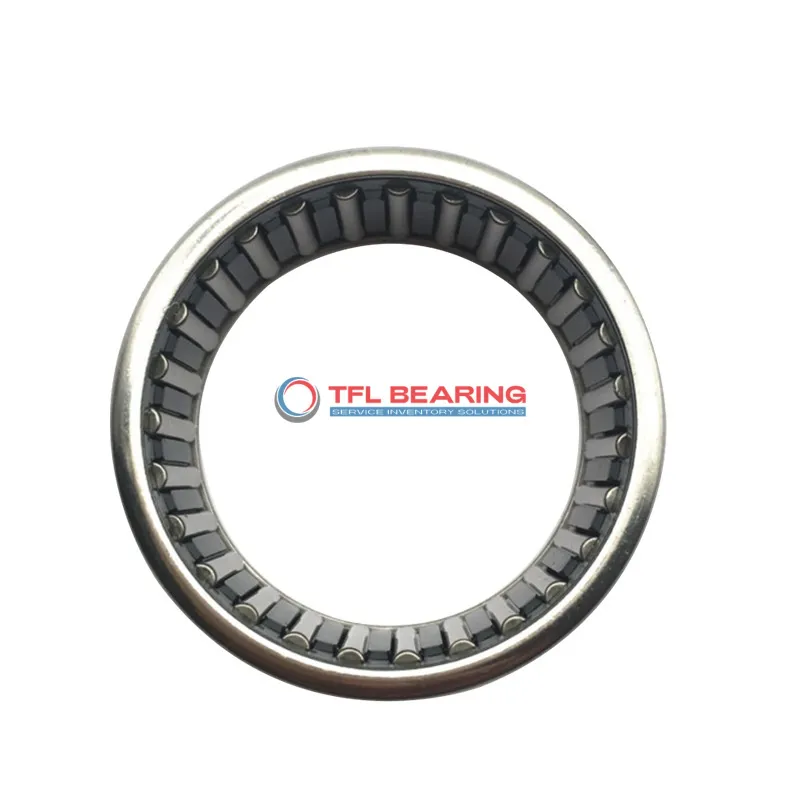

Drawn Cup Needle Roller Bearings SCE138

Drawn Cup Needle Roller Bearings SCE138

The SCE138 is a drawn cup needle roller bearing with a 0.8125″ bore and 1.0625″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 2428 lbf and spins smoothly at speeds up to 12200 RPM.
Its open-end design and press-fit mounting make it easy to install, while the steel cage ensures durability. The bearing operates well in temperatures ranging from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for applications like automotive components or small machinery where space is limited.
Regular lubrication is recommended to maintain its performance. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE138
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.8125"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.0625"
  • Outer Dia Tolerance Not Rated
  • Width 0.5"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 2428 lbf
  • Static Radial Load 3215 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 12200 rpm
  • Weight 16 g
Drawn Cup Needle Roller Bearings SCE138 dimension drawing
Download DWG Download PDF

Features

How Does SCE138 Bearing Handle High-Speed Applications?
SCE138 Bearing is built with steel rings and needles, offering robust performance under radial loads.
Its dynamic radial load capacity of 2428 lbf ensures reliability in high-speed operations.
The open-end design of SCE138 Bearing allows for easy press-fit installation, saving time and effort.
With a maximum speed of 12,200 rpm, it delivers consistent performance in demanding conditions.
SCE138 Bearing operates efficiently within a temperature range of -20 to 110°C, suitable for various environments.
Regular lubrication ensures smooth operation and extends the bearing’s service life.

Application

Common Applications of SCE138 Bearing
SCE138 Bearing is widely used in industrial machinery, especially in compact spaces where high radial load capacity is needed, such as conveyor rollers and gear pumps. Its press-fit design ensures a secure mount, reducing maintenance needs in busy production lines.
Where Is SCE138 Bearing Used?
You’ll often find SCE138 Bearing in automotive applications like steering systems and transmission assemblies, thanks to its ability to handle high speeds and radial loads. The inch sizing makes it a handy choice for older or custom-built vehicles.
Ideal for Precision: SCE138 Bearing
In medical devices like dental drills, SCE138 Bearing offers smooth operation due to its steel construction and needle roller design. The open-end series allows for easy lubrication, keeping performance consistent over time.
Automotive vs Industrial: Applications of SCE138 Bearing
While SCE138 Bearing excels in car transmissions, it’s equally useful in industrial settings like printing presses, where its compact size and durability shine. The steel cage ensures long life even under constant use.
Perfect Fit for Automation: SCE138 Bearing
SCE138 Bearing works well in robotic arms and small automation tools, where space is tight but performance can’t be compromised. Its high-speed capability makes it a reliable pick for precision tasks.
