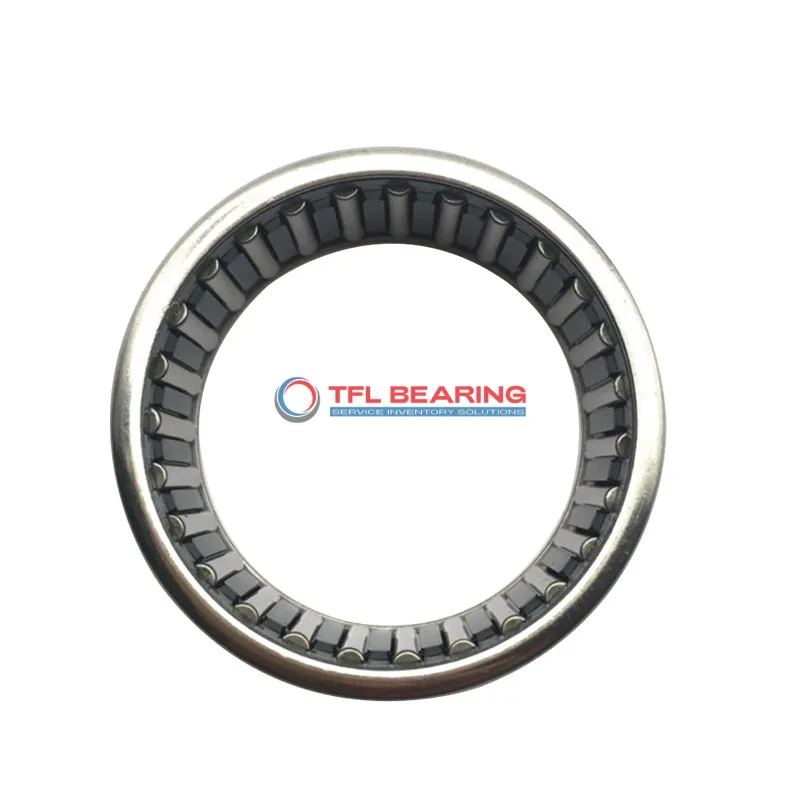

Drawn Cup Needle Roller Bearings SCE1314

Drawn Cup Needle Roller Bearings SCE1314

The SCE1314 is a drawn cup needle roller bearing with a 0.8125″ bore and 1.0625″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 4159 lbf and spins smoothly at speeds up to 12200 RPM.
Its open-end design and press-fit mounting make installation straightforward, while the steel cage ensures durability. Regular lubrication is needed to maintain optimal performance.
This bearing works well in temperatures from -20°C to 110°C, making it suitable for various environments. It’s interchangeable with INA bearings, offering a practical replacement option.
Ideal for applications like automotive components or small machinery where space is limited but high load capacity is needed. RoHS compliant for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE1314
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.8125"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.0625"
  • Outer Dia Tolerance Not Rated
  • Width 0.875"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 4159 lbf
  • Static Radial Load 6519 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 12200 rpm
  • Weight 27 g
Drawn Cup Needle Roller Bearings SCE1314 dimension drawing
Download DWG Download PDF

Features

How Does SCE1314 Bearing Handle High-Speed Applications?
SCE1314 Bearing is built with steel rings and rollers, offering robust performance under radial loads.
Its dynamic radial load capacity of 4159 lbf ensures reliable operation in high-speed environments.
The press-fit shaft mount design simplifies installation, saving time and effort.
With a maximum speed of 12,200 rpm, SCE1314 Bearing delivers consistent performance in demanding conditions.
The open-end construction allows for easy lubrication, enhancing longevity.
Its steel cage maintains roller alignment, reducing friction and wear.

Application

Industrial Uses of SCE1314 Bearing
SCE1314 Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
Where Is SCE1314 Bearing Used?
You’ll often find SCE1314 Bearing in automotive transmissions, providing smooth operation under high radial loads. Its press-fit design simplifies installation, saving time during assembly.
Built for Heavy-Duty Use: SCE1314 Bearing
SCE1314 Bearing handles high-speed applications like conveyor systems with ease, thanks to its robust steel rollers. The open-end design allows for easy lubrication, extending its service life.
Automotive vs Industrial: Applications of SCE1314 Bearing
In automotive steering systems, SCE1314 Bearing offers reliable performance, while in industrial pumps, it ensures efficient power transmission. Its inch sizing makes it versatile for various machinery.
Perfect Fit for Automation: SCE1314 Bearing
SCE1314 Bearing works well in robotic arms, where precision and load capacity are key. The steel cage provides stability, even during rapid movements.
