Drawn Cup Needle Roller Bearings BCE105

Drawn Cup Needle Roller Bearings BCE105

The BCE105 is a drawn cup needle roller bearing with a 0.625″ bore and 0.8125″ outer diameter, made from sturdy steel. It handles radial loads up to 967 lbf and spins smoothly at speeds up to 16000 RPM.
Its open design and press-fit mounting make it easy to install, while the steel cage ensures durability. The bearing operates well in temperatures from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a reliable replacement option. Ideal for applications like automotive components or small machinery where space is limited.
Regular lubrication is needed to maintain performance. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCE105
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.625"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.8125"
  • Outer Dia Tolerance Not Rated
  • Width 0.3125"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 967 lbf
  • Static Radial Load 1169 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 16000 rpm
  • Weight 5 g

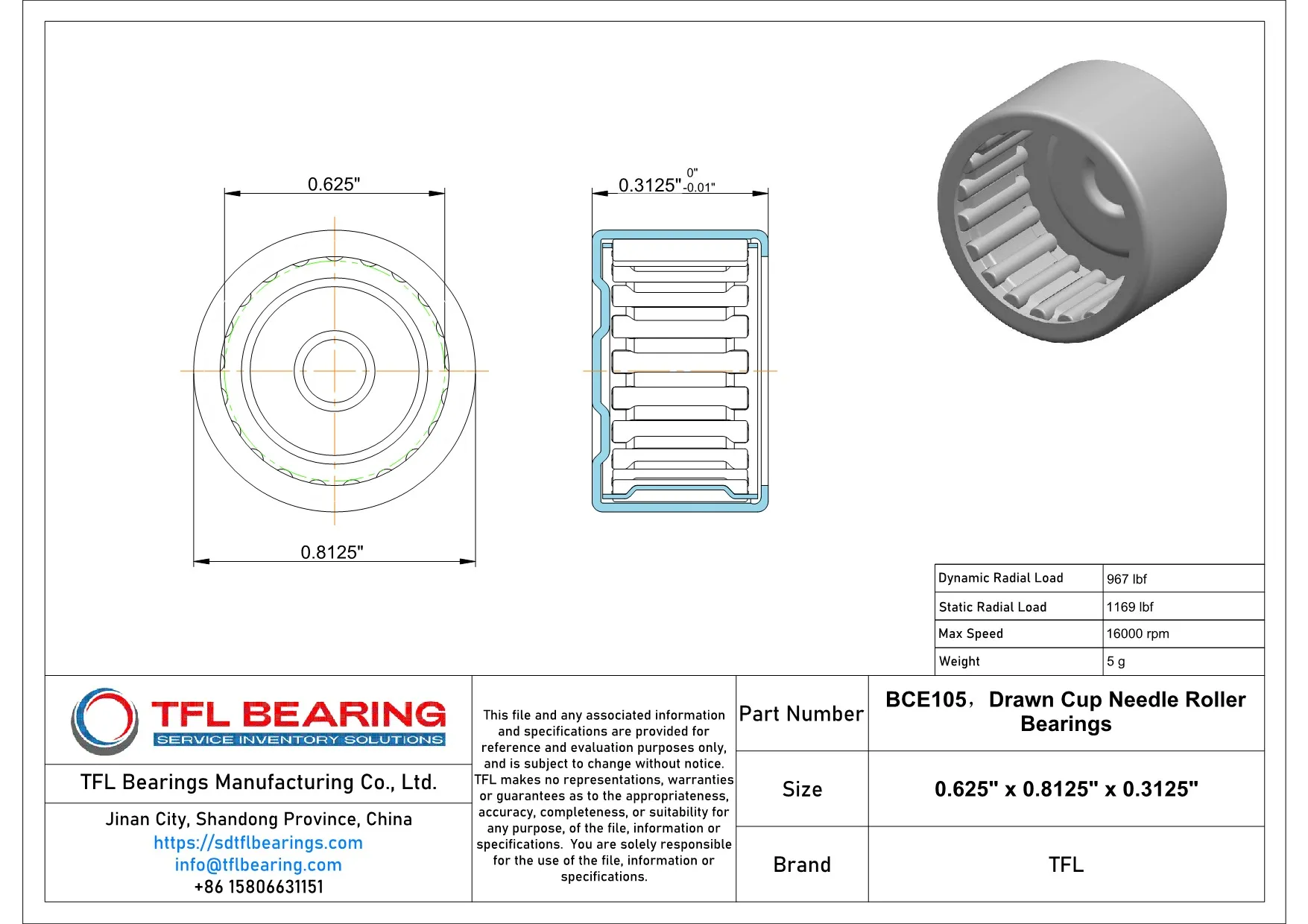

Drawn Cup Needle Roller Bearings BCE105 dimension drawing
Download DWG Download PDF

Features

Performance Features of BCE105 Bearing
BCE105 Bearing is crafted with steel rings and needles, offering robust radial load support.
Its dynamic radial load capacity of 967 lbf ensures reliable performance in various applications.
The press-fit shaft mount design simplifies installation, saving time and effort.
With a maximum speed of 16,000 rpm, it delivers efficient operation in demanding conditions.
BCE105 Bearing operates within a temperature range of -20 to 110°C, suitable for diverse environments.
Regular lubrication ensures smooth performance and extends the bearing’s service life.

Application

Common Applications of BCE105 Bearing
BCE105 Bearing is widely used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor rollers and printing presses. Its steel construction ensures durability in demanding environments.
In automotive systems, BCE105 Bearing fits well in gearboxes and steering mechanisms, providing smooth operation under high-speed conditions. The press-fit design makes installation straightforward for assembly lines.
For automation equipment, BCE105 Bearing supports precise movements in robotic arms and linear actuators. Its open seal allows for easy lubrication, extending service life in continuous-use applications.
Around the home, BCE105 Bearing can be found in appliances like washing machines, where its reliability keeps daily routines running smoothly. The inch sizing makes it compatible with many North American products.
