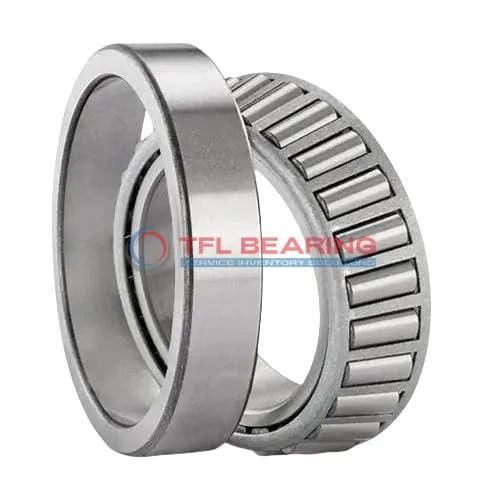

TS (Single Row Tapered Roller Bearings) (Imperial) 435-S-430X

TS (Single Row Tapered Roller Bearings) (Imperial) 435-S-430X

The 435-S-430X is a single-row tapered roller bearing with a 1.7717″ bore and 3.5433″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 28500 lbf radially and 3600 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 1.8 lb, it offers a balance of strength and manageable size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 435-S-430X
  • Brand TFL
  • Interchangeable Timken
  • Size 1.7717" x 3.5433" x 1.0938"
  • Bore Dia 1.7717"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.5433"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1772"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0938"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.080"
  • Cup Backface ToClear Radius 0.08"
  • Cone Frontface Backing Diameter 2.01"
  • Cone Backface Backing Diameter 2.17"
  • Cup Frontface Backing Diameter 3.34"
  • Cup Backface Backing Diameter 3.19"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.04"
  • Effective Center Location -0.36"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 435-S
  • Cup Part Number 430X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 435
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 28500 lbf
  • Static Radial Load 32400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 7400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3600 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.8 lb

Features

How Does 435-S-430X Bearing Handle Combined Loads?

435-S-430X Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 28,500 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

What Makes 435-S-430X Bearing Suitable for High-Temperature Applications?

435-S-430X Bearing operates efficiently in temperatures ranging from -30° to 110°C, making it versatile for different settings.
The chrome steel construction provides durability and resistance to thermal expansion.
Its standard radial clearance options (C3/C4/C5) allow for flexibility in high-temperature applications.
The open design ensures easy lubrication, maintaining smooth operation under heat stress.

Engineered for Precision: 435-S-430X Bearing

435-S-430X Bearing features precise dimensions, with a bore diameter tolerance of +0.005″ to 0 for accurate fitting.
The tapered roller design ensures optimal load distribution, enhancing performance and longevity.
Its ABEC-1 rating guarantees consistent quality and reliability.
The effective center location of -0.36″ ensures proper alignment in various assemblies.

Application

Industrial Uses of 435-S-430X Bearing
The 435-S-430X Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

Where Is 435-S-430X Bearing Used?
You’ll often find the 435-S-430X Bearing in automotive applications, particularly in wheel hubs and drivetrains, thanks to its ability to manage both radial and thrust loads. The inch sizing makes it a straightforward fit for many North American vehicle models.

Built for Heavy-Duty Use: 435-S-430X Bearing
In industrial settings, the 435-S-430X Bearing excels in conveyor systems and gearboxes, where its open design simplifies lubrication and maintenance. The steel cage adds extra strength for long-term reliability.

Automotive vs Aerospace: Applications of 435-S-430X Bearing
While the 435-S-430X Bearing is popular in automotive wheel assemblies, it’s also suitable for aerospace ground support equipment. Its ABEC-1 rating balances precision and cost-effectiveness for these varied uses.

Perfect Fit for Automation: 435-S-430X Bearing
The 435-S-430X Bearing works well in automated machinery, such as packaging lines, where consistent performance under combined loads is key. Its standard radial clearance ensures smooth operation without excessive friction.
