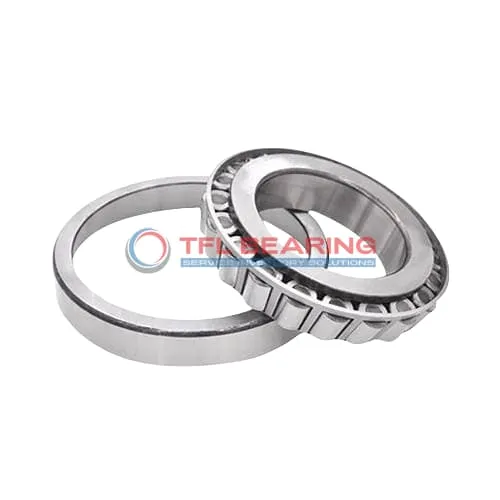

TS (Single Row Tapered Roller Bearings) (Imperial) 462A-453X

TS (Single Row Tapered Roller Bearings) (Imperial) 462A-453X

The 462A-453X is a single-row tapered roller bearing with a 2.25″ bore and 4.125″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 36100 lbf radially and 5380 lbf in thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 2.3 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for most environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 462A-453X
  • Brand TFL
  • Interchangeable Timken
  • Size 2.25" x 4.125" x 1.1875"
  • Bore Dia 2.25"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.125"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1542"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.9687"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.1875"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.09"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.68"
  • Cone Backface Backing Diameter 2.64"
  • Cup Frontface Backing Diameter 3.90"
  • Cup Backface Backing Diameter 3.62"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.28"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 462A
  • Cup Part Number 453X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 455
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 36100 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 9370 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5380 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.3 lb

Features

How Does 462A-453X Bearing Handle Combined Loads?

462A-453X Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 36,100 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

Why Choose 462A-453X Bearing for Precision Tasks?

462A-453X Bearing features precise cone and cup dimensions, ensuring accurate performance in combined load scenarios.
The chrome steel construction provides durability and resistance to wear under high stress.
Its standard radial clearance allows for smooth operation in most industrial applications.
The bearing’s ABEC-1 rating ensures consistent quality and reliability.

Engineered for Reliability: 462A-453X Bearing

462A-453X Bearing’s single-row tapered roller design efficiently manages combined loads.
The chrome steel rollers and rings enhance strength, while the steel cage maintains stability.
With a static radial load capacity of 37,200 lbf, it handles demanding conditions with ease.
Its wide temperature range makes it versatile for various environments.

Application

Key Fields for 462A-453X Bearing
In industrial settings, 462A-453X Bearing is a go-to for heavy machinery like conveyor systems and gearboxes, thanks to its robust tapered roller design. The chrome steel construction ensures it handles combined loads with ease.

Where Is 462A-453X Bearing Used?
You’ll often spot 462A-453X Bearing in automotive applications, particularly in wheel hubs and differentials, where its durability shines. The inch sizing makes it a fit for many North American vehicle models.

Built for Heavy-Duty Use: 462A-453X Bearing
For construction equipment, 462A-453X Bearing excels in handling high radial and thrust loads, like in crane booms or excavators. Its steel cage adds extra strength for tough environments.

Automotive vs Aerospace: Applications of 462A-453X Bearing
In cars, 462A-453X Bearing supports drivetrain components, while in aerospace, it’s trusted for landing gear systems due to its reliability. The ABEC-1 rating ensures consistent performance.

Practical Applications of 462A-453X Bearing
In agriculture, 462A-453X Bearing keeps tractors and harvesters running smoothly under heavy loads. The standard radial clearance option makes it versatile for various farm equipment needs.
