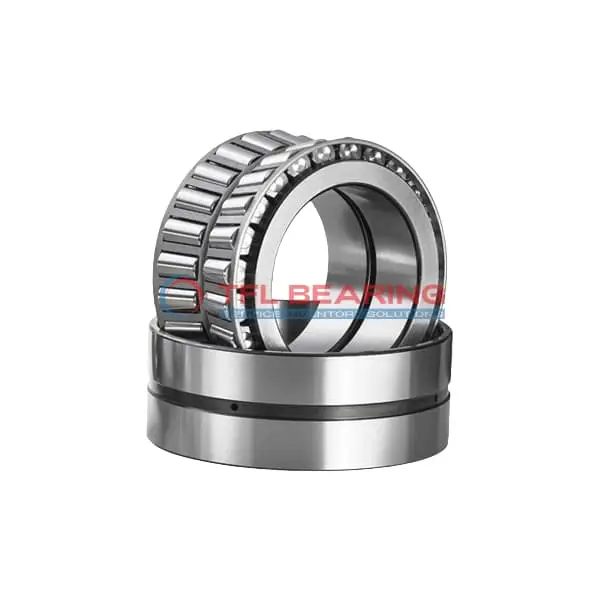

07097-07196D TDO (Two-Row Double-Outer Race) (Imperial)

07097-07196D TDO (Two-Row Double-Outer Race) (Imperial)

The 07097-07196D is a double-row tapered roller bearing with a 0.9843″ bore and 1.9687″ outer diameter, built from sturdy chrome steel. It handles combined loads well, with a dynamic radial load capacity of 11400 lbf.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is part of the 7000 series and meets ABEC-1 standards. It’s suitable for applications like heavy machinery or automotive systems where combined loads are common.

Weighing just 0.59 lb, it’s a compact yet robust choice. Compliant with RoHS and REACH regulations for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 07097-07196D
  • Brand TFL
  • Size 0.9843" x 1.9687" x 0.5614"
  • Bore Dia 0.9843"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 1.9687"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 1"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 0.5614"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 1.3126"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.03"
  • Cone Backface Backing Diameter 1.22"
  • Cup Frontface Backing Diameter 1.85"
  • Cage Cone Backface Clearance 0"
  • Dynamic Radial Load 11400 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 7097
  • Cup Part Number 07196D
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 7000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 1700 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 1170 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 2950 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.59 lb

Features

How Is 07097-07196D Bearing Engineered for Reliability?

07097-07196D Bearing features a double-row tapered roller design, providing strong resistance to combined radial and thrust loads.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 11400 lbf.
The steel cage maintains roller alignment, reducing friction and extending service life.
With a standard radial clearance, it offers reliable performance in various applications.

What Makes 07097-07196D Bearing Suitable for High-Temperature Applications?

07097-07196D Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its chrome steel rings and rollers resist thermal expansion, maintaining precision under heat.
The open design allows for easy lubrication, ensuring smooth operation in demanding conditions.
This makes it ideal for industrial machinery exposed to high temperatures.

Built for Durability: 07097-07196D Bearing

07097-07196D Bearing is constructed with high-quality chrome steel for enhanced strength and wear resistance.
Its double-row tapered rollers distribute loads evenly, reducing stress on individual components.
The steel cage ensures proper roller spacing, minimising wear and extending bearing life.
With a dynamic radial rating of 2950 lbf for two rows, it delivers long-lasting performance.

Steel vs Ceramic Bearings: Strengths of 07097-07196D Bearing

07097-07196D Bearing uses chrome steel for both rings and rollers, offering excellent load-bearing capacity.
This material choice provides superior durability compared to ceramic options in heavy-duty applications.
The steel construction ensures reliable performance under combined radial and thrust loads.
Its ABEC-1 rating guarantees consistent precision in industrial settings.

Application

Industrial Uses of 07097-07196D Bearing
07097-07196D Bearing is commonly used in heavy machinery, such as construction equipment and agricultural vehicles, where its double-row design handles combined radial and thrust loads efficiently. The chrome steel construction ensures durability in tough working conditions.

What Makes 07097-07196D Bearing a Preferred Choice?
In automotive applications, 07097-07196D Bearing supports wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: 07097-07196D Bearing
For industrial conveyor systems, 07097-07196D Bearing offers smooth operation and long service life, even in high-load scenarios. The open seal design allows for easy lubrication and maintenance.

Automotive vs Aerospace: Applications of 07097-07196D Bearing
While 07097-07196D Bearing excels in automotive wheel assemblies, it’s also suitable for aerospace ground support equipment. Its tapered roller design ensures stability under heavy loads.

Essential Roles of 07097-07196D Bearing
In mining equipment, 07097-07196D Bearing withstands harsh environments and continuous operation. The steel cage and chrome steel rollers enhance its resistance to wear and tear.
