High-Capacity Cylindrical Roller Bearings NCF 2336 ECJB/PEX

High-Capacity Cylindrical Roller Bearings NCF 2336 ECJB/PEX

The NCF 2336 ECJB/PEX is a high-capacity cylindrical roller bearing with a 180mm bore and 380mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 441000 lbf and runs smoothly at speeds up to 2000 RPM.
Its single-row design with an inner ring ensures stability, while the open construction allows for easy lubrication with grease or oil. The bearing operates well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or large gearboxes where robust performance is needed.
Weighing 67.5kg, it’s designed for durability and long service life. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 2336 ECJB/PEX
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Bore Dia 180 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 380 mm
  • Outer Dia Tolerance -0.04mm to 0
  • Width 126 mm
  • Width Tolerance -0.25mm to 0
  • Shoulder Dia Outer Ring 319.9 mm
  • Chamfer Dimension r1,2(min.) 4 mm
  • Permissible Axial Displacement(max.) 10.5 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Sheet steel cage, inner ring centred
  • Dynamic Radial Load 441000 lbf
  • Static Radial Load 540000 lbf
  • Max Speed 2000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 67.5 kg
  • Shoulder Dia Of Inner Ring 247.8 mm
  • Raceway Diameter Outer Ring 339 mm

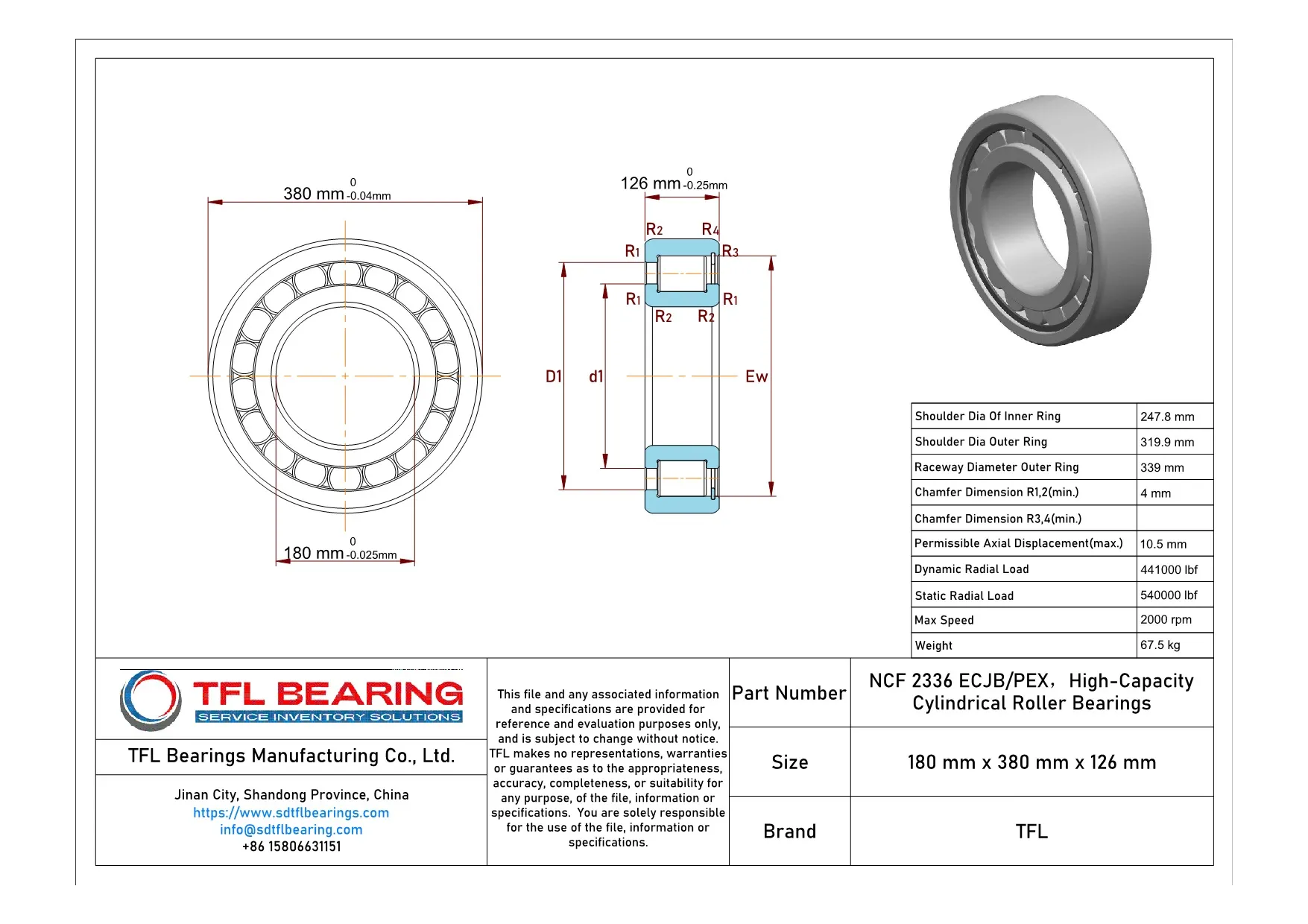

High-Capacity Cylindrical Roller Bearings NCF 2336 ECJB/PEX dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 2336 ECJB/PEX Bearing
NCF 2336 ECJB/PEX Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 441,000 lbf, ensuring reliable performance in heavy-duty applications.
The sheet steel cage keeps the rollers aligned, reducing wear and extending service life.
With a maximum speed of 2,000 rpm, it balances durability and efficiency in demanding conditions.
NCF 2336 ECJB/PEX Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with either grease or oil, reducing maintenance needs.
The precise tolerances of NCF 2336 ECJB/PEX Bearing ensure consistent performance.
Its robust construction makes it suitable for high-capacity industrial applications.

Application

Industrial Uses of NCF 2336 ECJB/PEX Bearing
NCF 2336 ECJB/PEX Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its high radial load capacity ensures reliable performance. The open design allows for efficient lubrication, making it suitable for continuous operation.
In automotive applications, NCF 2336 ECJB/PEX Bearing supports components such as truck transmissions and axle systems, handling combined loads with ease. Its chrome steel construction provides durability under demanding conditions.
For wind turbines, NCF 2336 ECJB/PEX Bearing’s ability to handle high speeds and heavy loads makes it a dependable choice. The sheet steel cage design enhances stability, even in variable weather conditions.
In mining equipment, NCF 2336 ECJB/PEX Bearing excels in environments with extreme dust and vibration. Its robust design ensures long service life, reducing downtime for maintenance.
Automation systems benefit from NCF 2336 ECJB/PEX Bearing’s precision and load-handling capabilities, particularly in robotic arms and assembly lines. The metric sizing ensures compatibility with a wide range of industrial machinery.
