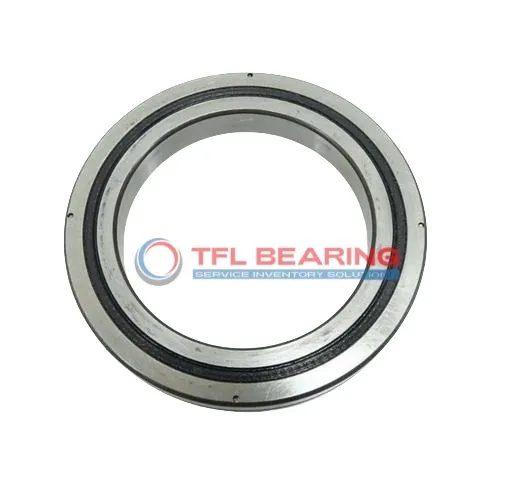

RB Crossed Roller Bearings RB12016UU

RB Crossed Roller Bearings RB12016UU

The RB12016UU is a crossed roller bearing with a 120mm bore and 150mm outer diameter, designed for combined loads. Its compact 16mm width and steel construction make it sturdy yet space-efficient.

With a basic load rating of 24.2 kN, it handles significant forces while maintaining smooth operation. The double-seal design keeps contaminants out and lubrication in, extending its lifespan.

This bearing features a press-fit shaft mount for secure installation and works in temperatures from 0°C to 110°C. It meets ABEC5 precision standards, with options for higher grades (ABEC7/9).

Ideal for robotics or precision machinery where space and accuracy matter. Compliant with RoHS and REACH, it weighs just 0.72kg for easy handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RB12016UU
  • Brand TFL
  • size 120 mm x 150 mm x 16 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Double Seal
  • Bore Dia 120 mm
  • Outer Dia 150 mm
  • Width 16 mm
  • R(min) 0.6 mm
  • Shoulder Height Ds(max) 127 mm
  • Shoulder Height Dh(min) 141 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 24.2 kN
  • Basic Load Rating Co 43.2 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.72 Kg

Features

Performance Features of RB12016UU Bearing

RB12016UU Bearing is designed with a single-row crossed roller construction, ideal for handling combined loads.
Its steel rings and rollers provide a basic load rating of 24.2 kN, ensuring reliable performance.
The double-seal design protects against contaminants, making it suitable for demanding environments.
With a temperature range of 0-230°F, it maintains stability in various operating conditions.

How Is RB12016UU Bearing Engineered for Reliability?

RB12016UU Bearing features a press-fit shaft mount, ensuring secure installation and reduced slippage.
The steel rollers and rings enhance durability, supporting a basic static load rating of 43.2 kN.
Its ABEC5 precision rating (with options for ABEC7/9) guarantees smooth and accurate operation.
Lubrication is required to maintain optimal performance and extend the bearing’s service life.

Built for Durability: RB12016UU Bearing

RB12016UU Bearing’s crossed roller design distributes loads evenly, reducing wear and tear.
The double-seal construction keeps out dust and moisture, enhancing longevity.
With a compact width of 16 mm, it fits into space-constrained applications without sacrificing performance.
Its steel construction ensures resistance to deformation under heavy loads.

Steel vs Ceramic Bearings: Strengths of RB12016UU Bearing

RB12016UU Bearing uses high-quality steel for both rings and rollers, offering excellent load capacity.
Unlike ceramic bearings, it provides a cost-effective solution with reliable performance in industrial settings.
The steel construction ensures better impact resistance, making it suitable for heavy-duty applications.
Its double-seal design further enhances durability in harsh environments.

Application

Industrial Uses of RB12016UU Bearing
RB12016UU Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision for rotary tables. The double seal helps keep contaminants out, ensuring long service life in demanding conditions.

Where Is RB12016UU Bearing Used?
You’ll often find RB12016UU Bearing in robotic arms, thanks to its ability to handle combined loads smoothly. Its press-fit mounting makes installation straightforward, even in tight spaces.

Built for Heavy-Duty Use: RB12016UU Bearing
RB12016UU Bearing works well in automation equipment, where its steel construction can withstand continuous operation. The ABEC5 rating ensures reliable performance for high-precision tasks.

Automotive vs Aerospace: Applications of RB12016UU Bearing
In automotive testing rigs, RB12016UU Bearing offers stability under varying loads. For aerospace applications, its temperature range makes it suitable for equipment exposed to different environments.

Perfect Fit for Automation: RB12016UU Bearing
RB12016UU Bearing is a great choice for 3D printers, where smooth motion is key. The required lubrication ensures consistent performance over time, reducing maintenance needs.
