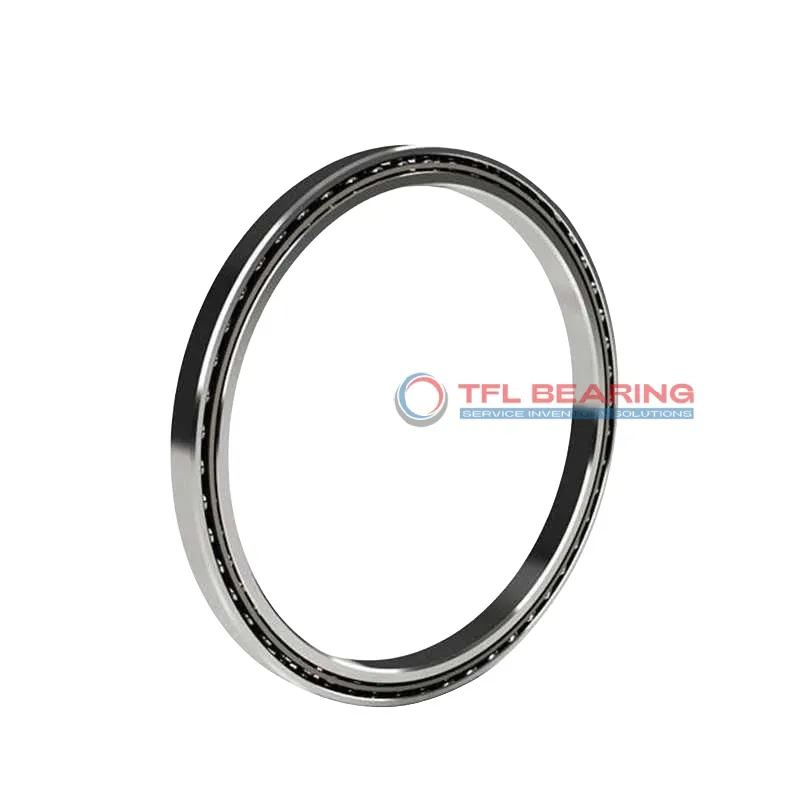

Constant Section (CS) Bearings JU085CP0

Constant Section (CS) Bearings JU085CP0

The JU085CP0 is a sealed, thin-section ball bearing measuring 8.5″ in bore and 9.25″ in outer diameter, with a slim 0.5″ width. Made from chrome steel with a brass cage, it’s built for radial loads up to 1624 lbf.

Its sealed design keeps lubrication in and contaminants out, making it low-maintenance. The ABEC-1 tolerance ensures smooth operation for general precision needs.

This bearing suits applications where space is tight but reliability is key, like robotics or medical equipment. It’s interchangeable with KAYDON models for easy replacement.

Weighing 1.12 lbs, it handles temperatures from -30°C to 110°C. RoHS compliant for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JU085CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 8.5"
  • Bore Dia Tolerance -0.0012"– 0"
  • Outer Dia 9.25"
  • Outer Dia Tolerance -0.0012"– 0"
  • Width 0.5"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JU 1/2" x 3/8"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 8.650"
  • Internal Diameter On Outer Ring (Small Side Face) 9.037"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1624 lbf
  • Static Radial Load 4270 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 3024 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 1.12 lbs
  • price（$） 185.31
Constant Section (CS) Bearings JU085CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of JU085CP0 Bearing

JU085CP0 Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 1624 lbf, ensuring reliable performance in various applications.

The brass cage maintains ball alignment, reducing friction and extending the bearing’s service life.
With a sealed construction, JU085CP0 Bearing is protected from contaminants, enhancing durability.

JU085CP0 Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its ABEC-1 tolerance class ensures consistent performance for precision applications.

Application

Industrial Uses of JU085CP0 Bearing
JU085CP0 Bearing is commonly used in industrial machinery where space is limited, such as robotic arms and conveyor systems. Its thin-section design ensures it fits into compact spaces without compromising performance.

What Makes JU085CP0 Bearing a Preferred Choice?
In automation systems, JU085CP0 Bearing provides smooth rotation for components like 3D printers and CNC machines. The sealed design keeps contaminants out, extending its lifespan in dusty environments.

Perfect Fit for Automation: JU085CP0 Bearing
JU085CP0 Bearing works well in medical imaging devices, offering reliable performance under radial loads. The chrome steel construction ensures durability, even in high-use scenarios.

Automotive vs Aerospace: Applications of JU085CP0 Bearing
In automotive applications, JU085CP0 Bearing supports components like steering systems, where its precision is key. For aerospace, it’s used in instrumentation due to its lightweight and reliability.

Where Is JU085CP0 Bearing Used?
JU085CP0 Bearing is ideal for consumer electronics, such as printers and scanners, where quiet operation is essential. The brass cage reduces friction, ensuring smooth movement over time.
