Constant Section (CS) Bearings NF090AR0

Constant Section (CS) Bearings NF090AR0

The NF090AR0 is a constant section bearing measuring 9″×10.5″×0.75″, made from durable chrome steel with a brass cage. It handles angular contact loads and offers smooth operation with a 30° contact angle.

With a dynamic radial load capacity of 5608 lbf and static thrust load up to 13700 lbf, it’s built for demanding applications. The open design allows easy lubrication, and it works in temperatures from -30°C to 110°C.

Its thin section design and chromium plating make it resistant to wear, while the ABEC-1 tolerance ensures reliable performance. The bearing is interchangeable with KAYDON models for easy replacement.

Ideal for machinery requiring precise angular contact, such as robotics or medical equipment. Weighing 3.95 lbs, it’s robust yet manageable for its size. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NF090AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 9"
  • Bore Dia Tolerance -0.0012"– 0"
  • Outer Dia 10.5"
  • Outer Dia Tolerance -0.0012"– 0"
  • Width 0.75"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NF 3/4" x 3/4"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 9.555"
  • Internal Diameter On Outer Ring (Small Side Face) 9.945"
  • Internal Diameter On Outer Ring (Large Side Face) 10.108"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 5608 lbf
  • Static Radial Load 13190 lbf
  • Static Thrust Load 13700 lbf
  • Static Moment 38090 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 9073 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 3.95 lbs
  • price（$） 282.89

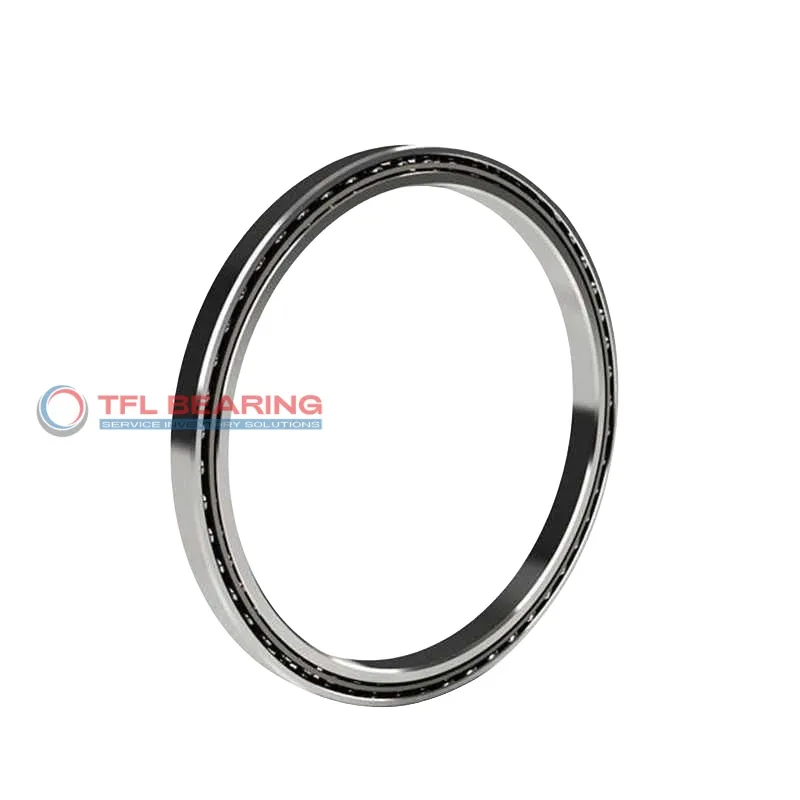

Constant Section (CS) Bearings NF090AR0 dimension drawing
Download DWG Download PDF
