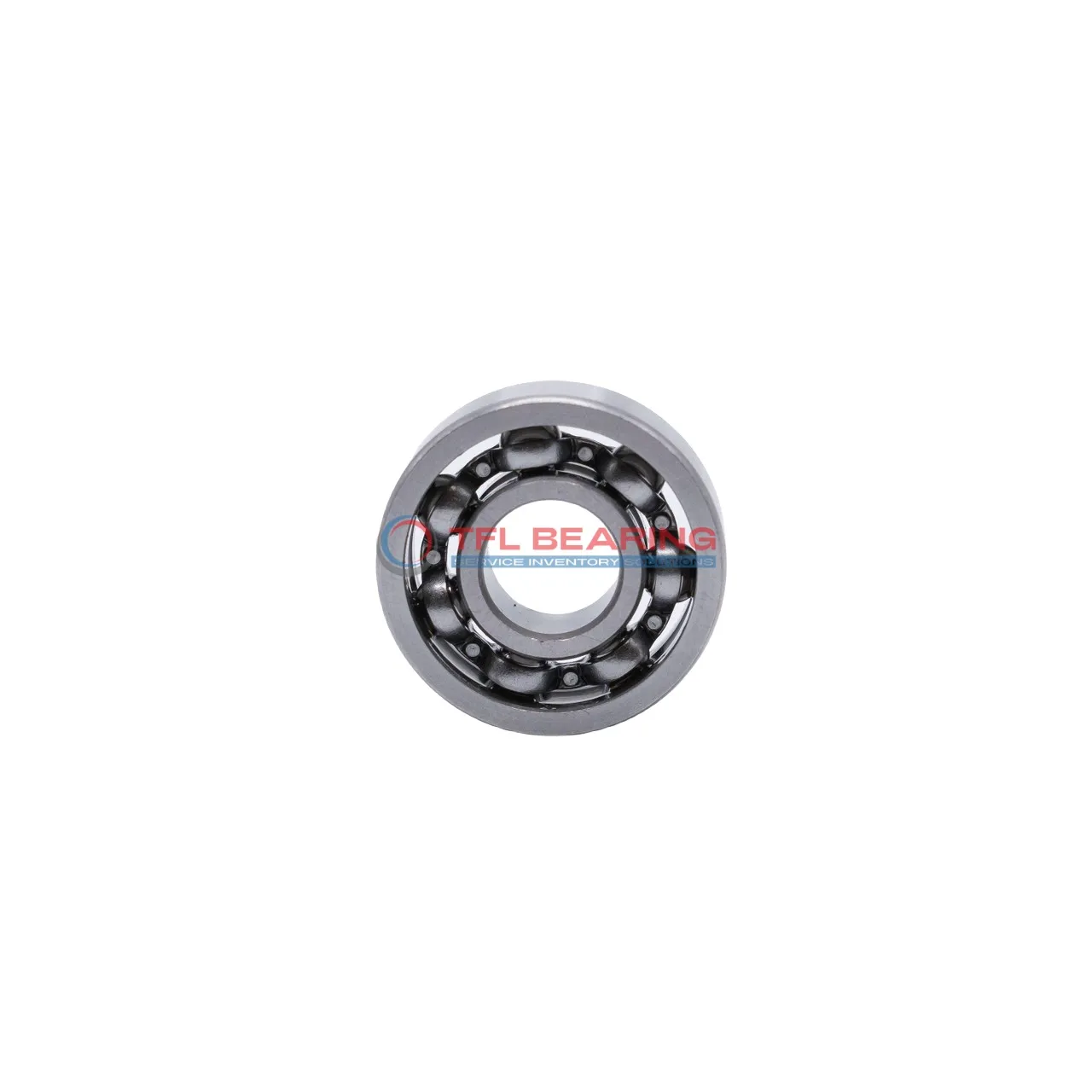

Single Row Deep Groove Ball Bearings 6202/VK2415

Single Row Deep Groove Ball Bearings 6202/VK2415

The 6202/VK2415 is a single-row deep groove ball bearing with a compact size of 15mm by 35mm by 11mm, crafted from durable chrome steel. It handles radial loads up to 1812 lbf and spins smoothly at speeds up to 20,000 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures reliable performance. The bearing operates well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s ideal for applications like electric motors or small machinery where radial loads are common.

Weighing just 45g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6202/VK2415
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 11 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 843 lbf
  • Max Speed 20000 rpm
  • Weight 45 g
  • price（$） 1.863
Single Row Deep Groove Ball Bearings 6202/VK2415 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6202/VK2415 Bearing

6202/VK2415 Bearing is crafted with chrome steel rings and balls, ensuring durability and smooth radial load handling.
Its dynamic radial load capacity of 1812 lbf makes it suitable for various industrial applications.
The open design allows for easy lubrication, enhancing performance and longevity.
With a maximum speed of 20,000 rpm, it offers reliable operation in high-speed conditions.

Application

Where Is 6202/VK2415 Bearing Used?
You’ll often spot 6202/VK2415 Bearing in small electric motors and household appliances like fans or power tools, thanks to its compact size and reliable radial load handling. The open design keeps maintenance straightforward, ideal for everyday use.

In industrial settings, 6202/VK2415 Bearing fits well into conveyor systems and light machinery, where its chrome steel construction ensures durability. Its metric sizing makes it a versatile choice for various equipment.

For automotive applications, 6202/VK2415 Bearing works smoothly in components like alternators or small gearboxes. The ABEC 1 tolerance offers a good balance of precision and affordability for these uses.

Automation systems also benefit from 6202/VK2415 Bearing, particularly in robotic arms or 3D printers. The high-speed capability (up to 20,000 rpm) ensures efficient performance in dynamic setups.
