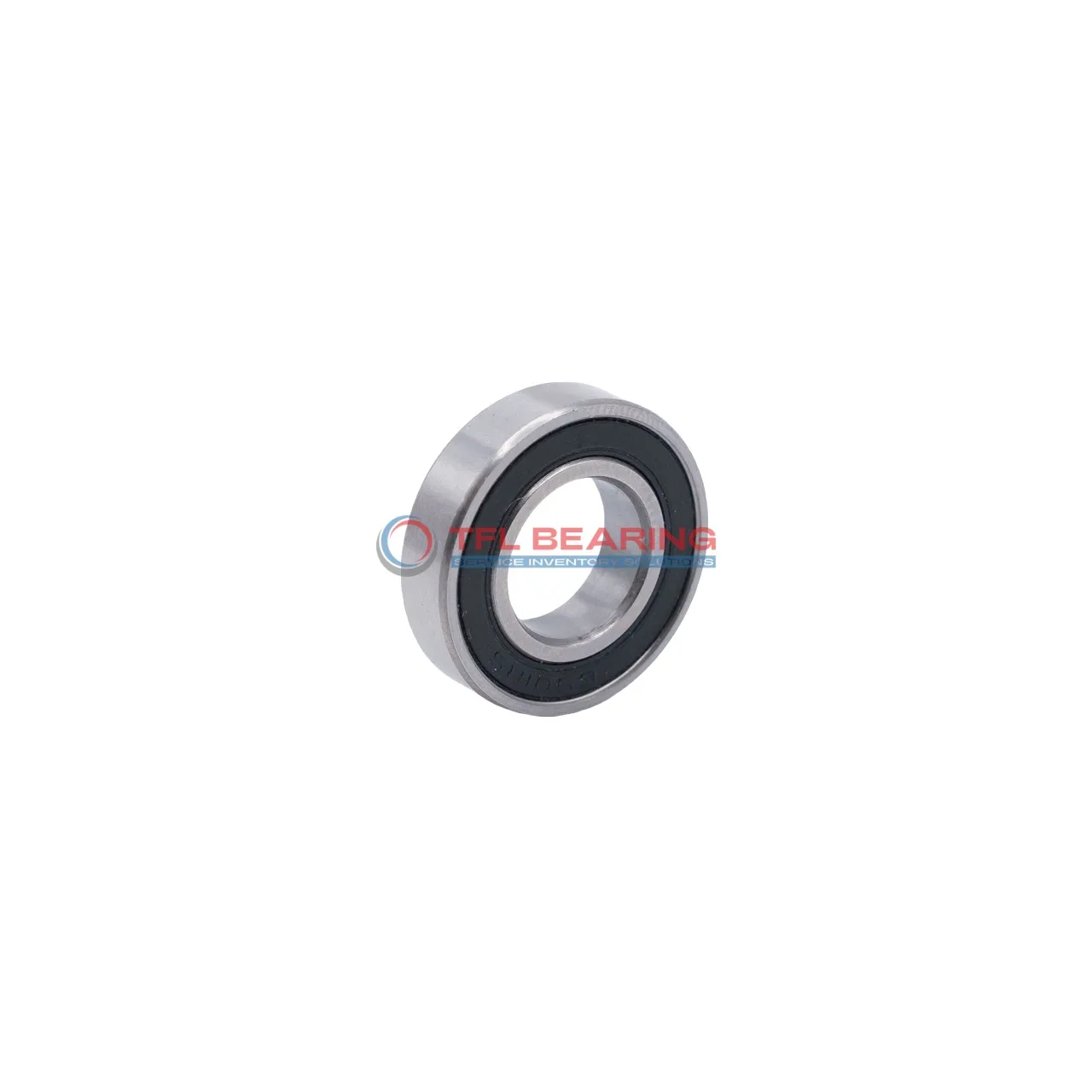

Single Row Deep Groove Ball Bearings 6202-2RSL/VT376

The 6202-2RSL/VT376 is a compact single-row deep groove ball bearing, measuring 15mm by 35mm by 11mm, crafted from durable chrome steel. It handles radial loads up to 1812 lbf and spins smoothly at speeds up to 20,000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The chrome steel cage adds strength and longevity, even in temperatures from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a reliable replacement option. It’s well-suited for small motors, pumps, or appliances where space is limited.

Weighing just 45g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6202-2RSL/VT376
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Bore Dia 15 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 35 mm
Outer Dia Tolerance -0.011mm to 0
Width 11 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 1812 lbf
Static Radial Load 843 lbf
Max Speed 20000 rpm
Weight 45 g

Single Row Deep Groove Ball Bearings 6202-2RSL/VT376 dimension drawing

Download DWG Download PDF

Features

Why Choose 6202-2RSL/VT376 Bearing for Precision Tasks?

6202-2RSL/VT376 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 1812 lbf, it handles demanding tasks with ease.
The bearing operates smoothly at speeds up to 20,000 rpm, making it suitable for high-speed applications.

Its compact size (15 mm×35 mm×11 mm) allows for easy integration into various machinery.
The temperature range of -30°C to 120°C ensures reliable performance in diverse environments.

The sealed design reduces maintenance needs, saving time and operational costs.
6202-2RSL/VT376 Bearing is a practical choice for precision and efficiency.

Application

Industrial Uses of 6202-2RSL/VT376 Bearing
This bearing is commonly used in electric motors and small machinery, where its sealed design keeps out dust and moisture. The chrome steel construction ensures durability in continuous operation.

Where Is 6202-2RSL/VT376 Bearing Used?
You’ll often find it in household appliances like washing machines and fans, thanks to its smooth radial load handling. Its compact size makes it ideal for tight spaces.

Built for Heavy-Duty Use: 6202-2RSL/VT376 Bearing
It handles moderate loads in conveyor systems and power tools without overheating. The ABEC 1 tolerance provides reliable performance for everyday industrial needs.

Automotive vs Industrial: Applications of 6202-2RSL/VT376 Bearing
In cars, it supports alternators and small gearboxes, while in factories, it keeps pumps and compressors running smoothly. The sealed design works well in both environments.
