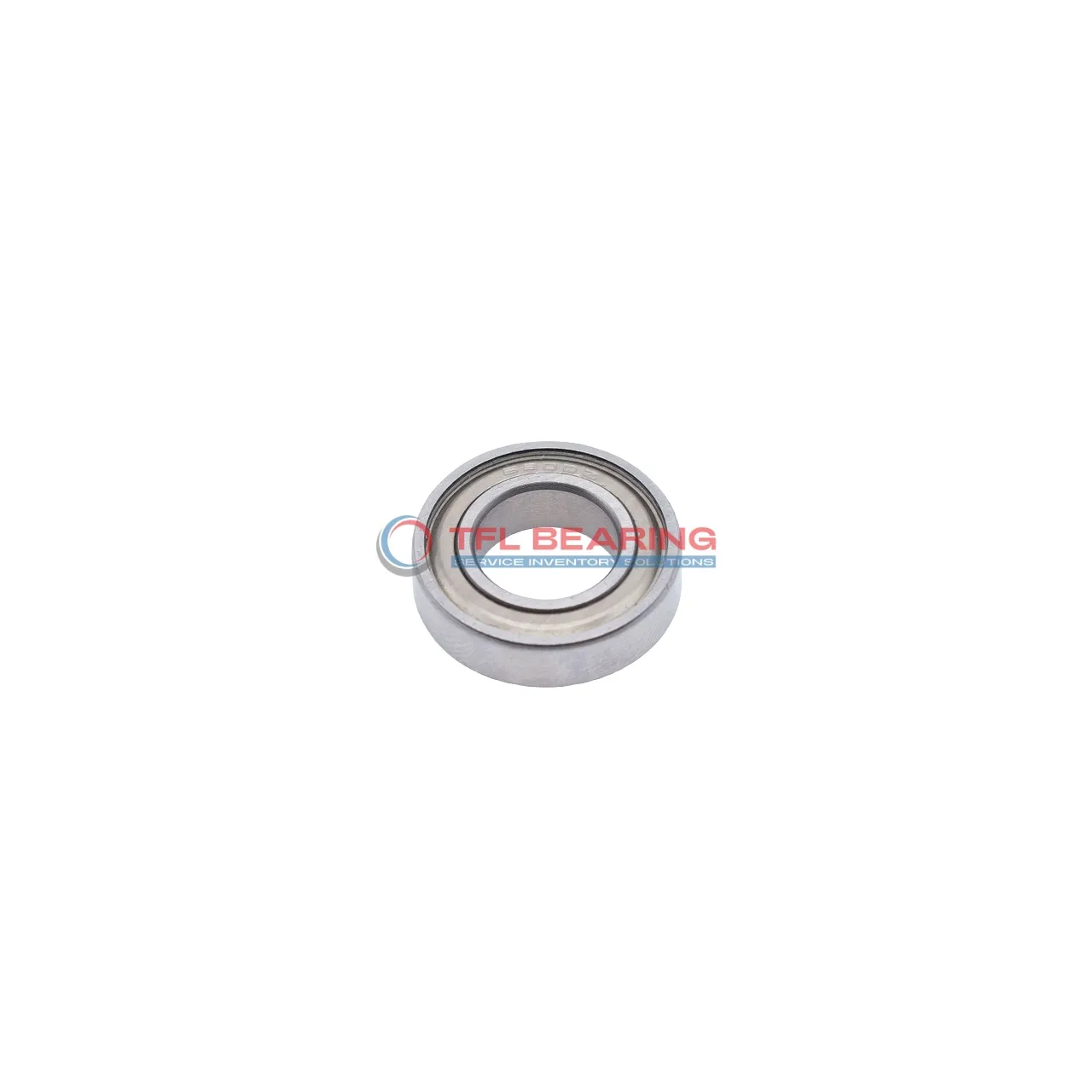

Single Row Deep Groove Ball Bearings 608-2Z/C2PVK232

Single Row Deep Groove Ball Bearings 608-2Z/C2PVK232

The 608-2Z/C2PVK232 is a compact single-row deep groove ball bearing, measuring 8mm by 22mm by 7mm, crafted from durable chrome steel. It handles radial loads up to 630 lbf and spins smoothly at speeds up to 34,000 RPM.

Its shielded design keeps dirt out while maintaining easy access for lubrication. The C2 radial clearance ensures reliable performance in various conditions, with a temperature range of -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for small machinery, skateboards, or electric motors where smooth rotation is key.

Weighing just 11.8g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 608-2Z/C2PVK232
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C2
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 630 lbf
  • Static Radial Load 248 lbf
  • Max Speed 34000 rpm
  • Weight 11.8 g
Single Row Deep Groove Ball Bearings 608-2Z/C2PVK232 dimension drawing
Download DWG Download PDF

Features

How Does 608-2Z/C2PVK232 Bearing Reduce Friction?

608-2Z/C2PVK232 Bearing features a single-row deep groove design, optimised for smooth radial load handling.
Its chrome steel construction ensures durability while maintaining low friction during operation.

The shielded design protects against contaminants, enhancing performance in various environments.
With a maximum speed of 34,000 rpm, it delivers efficient and reliable rotation.

Its C2 radial clearance provides a balance between precision and thermal expansion tolerance.
This makes 608-2Z/C2PVK232 Bearing suitable for applications requiring consistent performance.

Application

Common Applications of 608-2Z/C2PVK232 Bearing
You’ll often spot 608-2Z/C2PVK232 Bearing in small electric motors, like those in household appliances or power tools. Its shielded design keeps dust out while maintaining smooth rotation, ideal for everyday devices.

In skateboards and rollerblades, 608-2Z/C2PVK232 Bearing handles radial loads effortlessly, thanks to its deep groove design. The C2 clearance provides just enough play for smooth rolling without compromising stability.

For office equipment like printers, 608-2Z/C2PVK232 Bearing’s compact size and reliable performance make it a go-to choice. The chrome steel construction ensures it can handle continuous operation without wearing out quickly.
