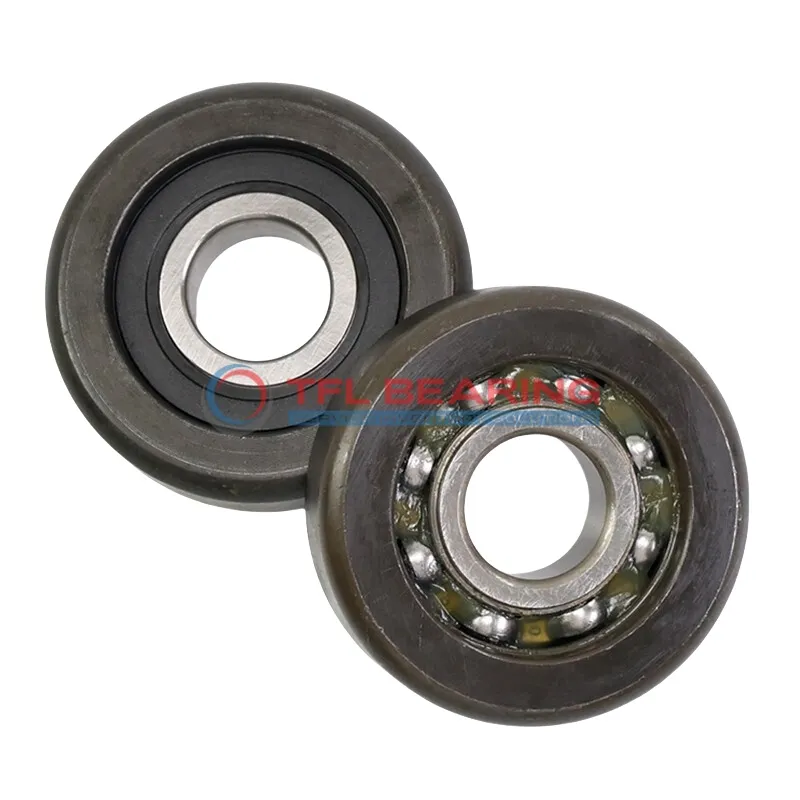

Mast Guide Bearings MG 28mm‑1

Mast Guide Bearings MG 28mm‑1

The MG 28mm-1 mast guide bearing is a sturdy unit measuring 28mm in inner diameter and 77.2mm in outer diameter, with a width of 27mm. Made for heavy-duty use, it handles dynamic loads up to 54,970 N and static loads up to 62,890 N.

Its compact design features a 5mm radius for smooth operation, while the 14.5mm inner ring width provides stability. The bearing weighs just 0.7711 kg, making it easy to handle during installation.

This model is ideal for mast guidance systems or other applications requiring precise movement under high loads. Its robust construction ensures reliable performance in demanding conditions.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 28mm‑1
  • Brand TFL & OEM
  • Inner Diameter (d) 28.000 mm
  • Outer Diameter (D) 77.20 mm
  • Inner Ring Width (b) 14.5 mm
  • Outer Ring Width (B) 27.000 mm
  • Radius (R) 5 mm
  • Dynamic Capacity (Cr.) 54,970 N
  • Static Capacity (Cor.) 62,890 N
  • Weight 0.7711 Kg
Mast Guide Bearings MG 28mm‑1 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 28mm‑1 Bearing

MG 28mm‑1 Bearing is built to handle dynamic loads up to 54,970 N, making it suitable for heavy-duty applications.
Its robust design ensures reliable performance, even under continuous use.

The bearing’s dimensions (28.000 mm x 77.20 mm x 27.000 mm) provide a compact yet sturdy solution for various machinery.
With a static capacity of 62,890 N, it offers excellent stability and load-bearing capabilities.

MG 28mm‑1 Bearing’s 5 mm radius design reduces stress concentration, enhancing durability.
Its 0.7711 Kg weight ensures ease of handling without compromising strength.

Application

Common Applications of MG 28mm‑1 Bearing
MG 28mm‑1 Bearing is widely used in industrial equipment like conveyor systems and lifting mechanisms, where its robust design handles heavy loads with ease. The 28mm inner diameter ensures a snug fit for various shaft sizes.

In automotive applications, MG 28mm‑1 Bearing is often found in steering columns and suspension systems, providing smooth rotation under pressure. Its high dynamic capacity makes it reliable for frequent use.

For automation and robotics, MG 28mm‑1 Bearing supports precise movements in robotic arms and CNC machines. The balanced weight distribution helps maintain accuracy during high-speed operations.

In household appliances, MG 28mm‑1 Bearing can be used in washing machines and fans, offering quiet and efficient performance. Its durable construction ensures long-term reliability in everyday use.
