Mast Guide Bearings MG 307 FFTT

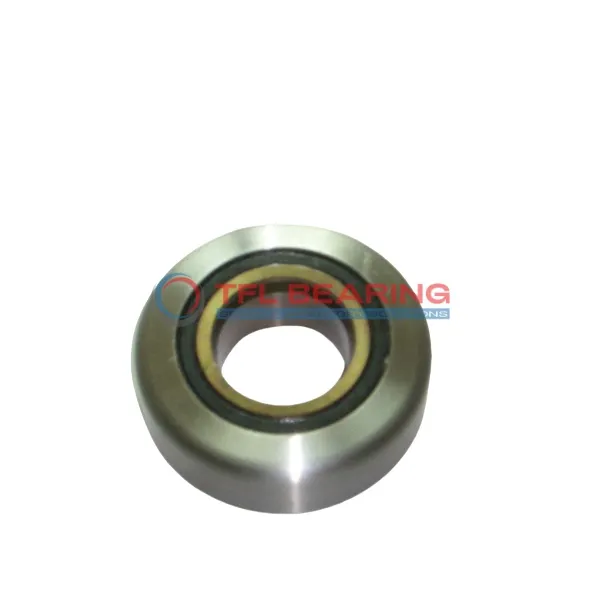

Mast Guide Bearings MG 307 FFTT

The MG 307 FFTT is a mast guide bearing with a 35mm inner diameter and 96.1mm outer diameter, designed for sturdy performance. Its compact width of 25mm makes it suitable for tight spaces, while the 5mm radius ensures smooth operation.

This bearing handles dynamic loads up to 33,540N and static loads up to 19,230N, offering reliable support in demanding conditions. The chrome steel construction provides durability and long service life.

With an inner ring width of 21mm and outer ring width of 25mm, it ensures stable alignment. Weighing just 0.93kg, it’s lightweight yet robust for its size.

Ideal for mast guidance systems or industrial machinery where precise movement and load handling are required. Its straightforward design simplifies installation and maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 307 FFTT
  • Brand TFL & OEM
  • Inner Diameter (d) 35.000 mm
  • Outer Diameter (D) 96.10 mm
  • Inner Ring Width (b) 21 mm
  • Outer Ring Width (B) 25.000 mm
  • Radius (R) 5 mm
  • Dynamic Capacity (Cr.) 33,540 N
  • Static Capacity (Cor.) 19,230 N
  • Weight 0.9299 Kg
Mast Guide Bearings MG 307 FFTT dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 307 FFTT Bearing

MG 307 FFTT Bearing is built with a robust design, featuring an inner diameter of 35.000 mm and an outer diameter of 96.10 mm.
Its dynamic capacity of 33,540 N ensures reliable performance under heavy loads.
The bearing’s inner ring width of 21 mm and outer ring width of 25.000 mm provide stability in various applications.
With a static capacity of 19,230 N, it offers durability and long service life.

Application

Industrial Uses of MG 307 FFTT Bearing
MG 307 FFTT Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its robust design handles high radial loads. The 35mm bore size makes it suitable for various shaft configurations.

In automation systems, MG 307 FFTT Bearing ensures smooth movement in robotic arms and conveyor belts. Its 96.10mm outer diameter provides stability, while the 25mm width offers space-efficient installation.

For wind turbines, MG 307 FFTT Bearing’s dynamic capacity of 33,540 N supports consistent performance under fluctuating loads. The 5mm radius design also reduces stress concentrations, extending service life.
