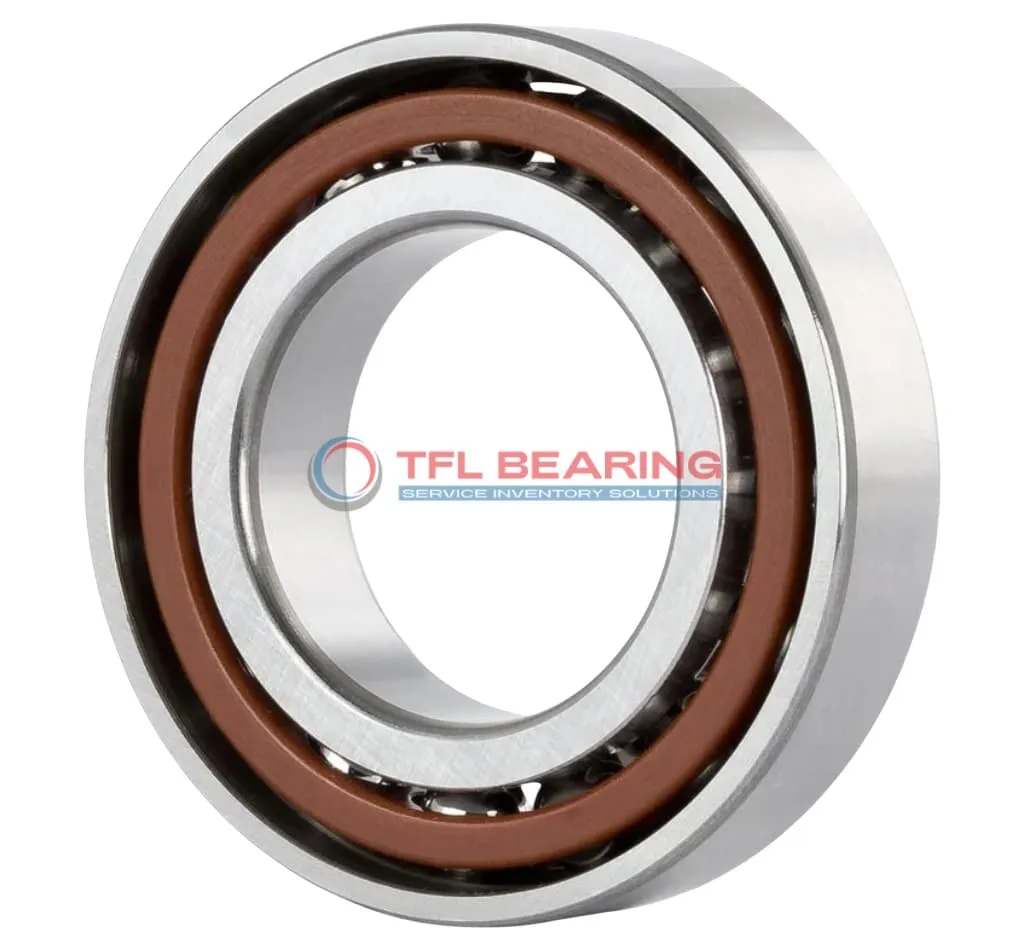

Super Precision Angular Contact Ball Bearings 7006 CDGA/HCP4A

Brand: TFL Bearing Interchangeable: SKF 7006 CDGA/HCP4A 30 mm × 55 mm × 13 mm Metric Open
Part number: 7006 CDGA/HCP4A
Super Precision Angular Contact Ball Bearings 7006 CDGA/HCP4A
In Stock
US$88.11 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia30 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia55 mm
Outer Dia Tolerance-0.004mm to 0
Width13 mm
Width Tolerance-0.2mm to 0
Ball Dia7.938 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load3,218 lbf
Static Radial Load1,800 lbf
Temperature Range- 30°C to 110 °C
Max Speed100,500 rpm
Characteristics
Ball Qty14
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
Number Of Bearings In Matched Set3
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.095 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7006 CDGA/HCP4A is a super precision angular contact ball bearing, measuring 30mm by 55mm by 13mm. Made from chrome steel with ceramic balls, it offers smooth operation and durability.

With a 15° contact angle, it handles radial loads up to 3218 lbf and spins at speeds up to 100,500 RPM. Its phenolic cage ensures stability during high-speed use.

The open design allows easy lubrication, while the P4A tolerance class guarantees precise performance. It works in temperatures from -30°C to 110°C.

Ideal for precision machinery like spindles or CNC tools, this bearing can be paired in back-to-back, face-to-face, or tandem arrangements. Weighing just 0.095kg, it’s lightweight yet robust.

Features

Performance Features of 7006 CDGA/HCP4A Bearing

7006 CDGA/HCP4A Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and ceramic balls enhance durability while reducing friction.

The phenolic cage ensures smooth operation, even at high speeds up to 100,500 rpm.
This bearing is ideal for precision tasks, thanks to its P4A tolerance class.

With a dynamic radial load capacity of 3218 lbf, it handles demanding conditions reliably.
The extra light preload (Class A) ensures minimal resistance and efficient performance.

Its universal matching capability allows flexible arrangements like back-to-back or tandem configurations.
The open design simplifies lubrication, maintaining consistent performance over time.

Application

Industrial Uses of 7006 CDGA/HCP4A Bearing
7006 CDGA/HCP4A Bearing is commonly used in high-speed machine tools, where its ceramic balls and phenolic cage reduce friction and heat buildup. The P4A tolerance ensures precise alignment for smooth operation in demanding conditions.

What Makes 7006 CDGA/HCP4A Bearing a Preferred Choice?
In automotive applications, 7006 CDGA/HCP4A Bearing excels in electric motor systems, thanks to its angular contact design handling combined loads efficiently. The chrome steel rings provide durability under continuous use.

Perfect Fit for Automation: 7006 CDGA/HCP4A Bearing
Robotic arms benefit from 7006 CDGA/HCP4A Bearing’s lightweight construction and high-speed capabilities, ensuring accurate movement. Its universal matching feature allows flexible arrangement in complex setups.

Medical vs Industrial: Where 7006 CDGA/HCP4A Bearing Excels
For medical imaging devices, 7006 CDGA/HCP4A Bearing offers quiet operation and reliability, while in industrial settings, it handles high radial loads effortlessly. The wide temperature range suits varied environments.
