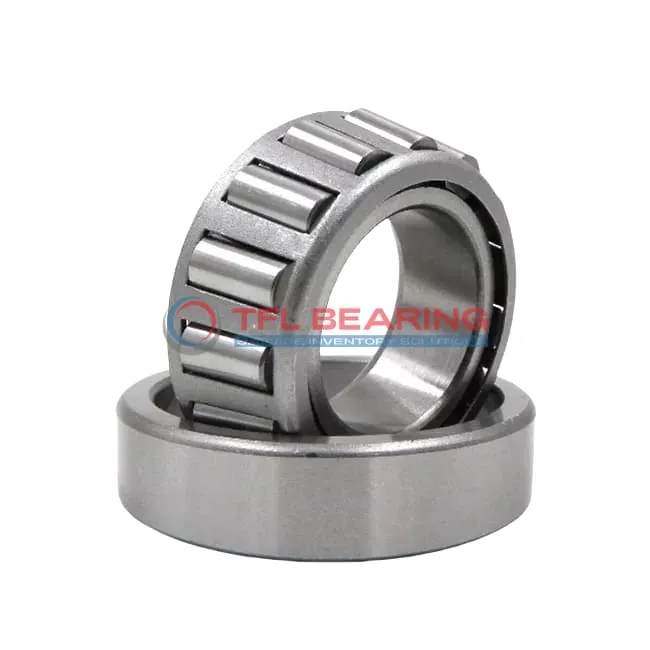

TS (Single Row Tapered Roller Bearings) (Imperial) 898-892

TS (Single Row Tapered Roller Bearings) (Imperial) 898-892

The 898-892 is a single-row tapered roller bearing with a 5.5″ bore and 9″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 117000 lbf radially and 21800 lbf thrust, making it robust for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive applications where combined loads are common.

Weighing 19.20 lb, it’s designed for stability and long service life. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 898-892
  • Brand TFL
  • Interchangeable Timken
  • Size 5.5" x 9" x 2.25"
  • Bore Dia 5.5"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 9"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.25"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.25"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 6.89"
  • Cone Backface Backing Diameter 6.3"
  • Cup Frontface Backing Diameter 8.54"
  • Cup Backface Backing Diameter 8.07"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.19"
  • Effective Center Location -0.24"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 898
  • Cup Part Number 892
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 895
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 117000 lbf
  • Static Radial Load 182000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 30300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 21800 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 19.20 lb

Features

Performance Features of 898-892 Bearing

898-892 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 117,000 lbf, ensuring reliable performance in heavy-duty applications.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

898-892 Bearing requires lubrication, ensuring smooth operation and reduced wear over time.
Its standard radial clearance options provide flexibility for different installation needs.

Application

Industrial Uses of 898-892 Bearing
The 898-892 Bearing is commonly used in heavy machinery like construction equipment and mining rigs, where its tapered roller design handles combined radial and thrust loads effortlessly.
Its chrome steel construction ensures durability even in harsh environments, making it a reliable choice for long-term use.

Where Is 898-892 Bearing Used?
You’ll often find the 898-892 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design supports high loads.
The open seal type allows for easy lubrication, which is essential in dusty or dirty conditions.

Built for Heavy-Duty Use: 898-892 Bearing
In industrial gearboxes, the 898-892 Bearing provides smooth operation under heavy loads, thanks to its tapered roller design.
The steel cage adds extra strength, making it suitable for applications with frequent shock loads.

Automotive vs Aerospace: Applications of 898-892 Bearing
In automotive applications, the 898-892 Bearing is ideal for wheel hubs and differentials, where it handles both radial and thrust forces.
For aerospace, its precision and reliability make it a good fit for landing gear systems, though it’s more commonly seen in ground support equipment.

Key Fields for 898-892 Bearing
The 898-892 Bearing is a staple in railway applications, particularly in axle boxes where durability and load capacity are critical.
Its inch sizing makes it compatible with many North American machinery standards, simplifying replacements and maintenance.
