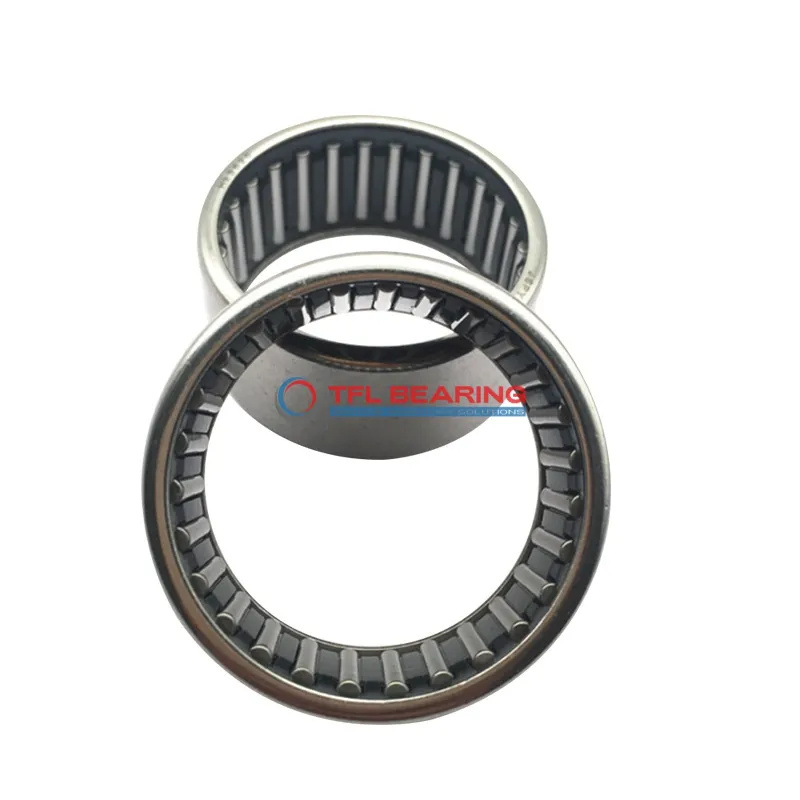

Drawn Cup Needle Roller Bearings SCE1110

Drawn Cup Needle Roller Bearings SCE1110

The SCE1110 is a drawn cup needle roller bearing with a 0.6875″ bore and 0.875″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 245 lbf and spins smoothly at speeds up to 14600 RPM.
Its open-end design and press-fit mounting make it easy to install, while the steel cage ensures durability. The bearing operates well in temperatures from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for applications like small engines or machinery where space is limited but high radial load capacity is needed.
Regular lubrication is required to maintain its performance. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE1110
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.6875"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.875"
  • Outer Dia Tolerance Not Rated
  • Width 0.625"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 245 lbf
  • Static Radial Load 4047 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 14600 rpm
  • Weight 13 g
Drawn Cup Needle Roller Bearings SCE1110 dimension drawing
Download DWG Download PDF

Features

How Does SCE1110 Bearing Handle Radial Loads?
SCE1110 Bearing is built with steel rings and needles, offering robust resistance to radial loads.
Its dynamic radial load capacity reaches 245 lbf, ensuring steady performance in various applications.
The press-fit shaft mount design simplifies installation, saving time and effort.
With a maximum speed of 14,600 rpm, it delivers both durability and efficiency.

Application

Common Applications of SCE1110 Bearing
SCE1110 Bearing is widely used in industrial equipment like conveyor systems and printing machines, where its compact design helps save space. The steel construction ensures it can handle moderate radial loads with ease.
In automotive applications, SCE1110 Bearing fits well in gearboxes and steering systems, providing smooth operation. Its press-fit mounting makes installation straightforward, even in tight spaces.
For automation projects, SCE1110 Bearing works reliably in robotic arms and assembly line equipment. The open-end design allows for easy lubrication, extending its service life.
Around the home, SCE1110 Bearing can be found in appliances like washing machines and power tools. Its inch sizing makes it compatible with many North American products.
