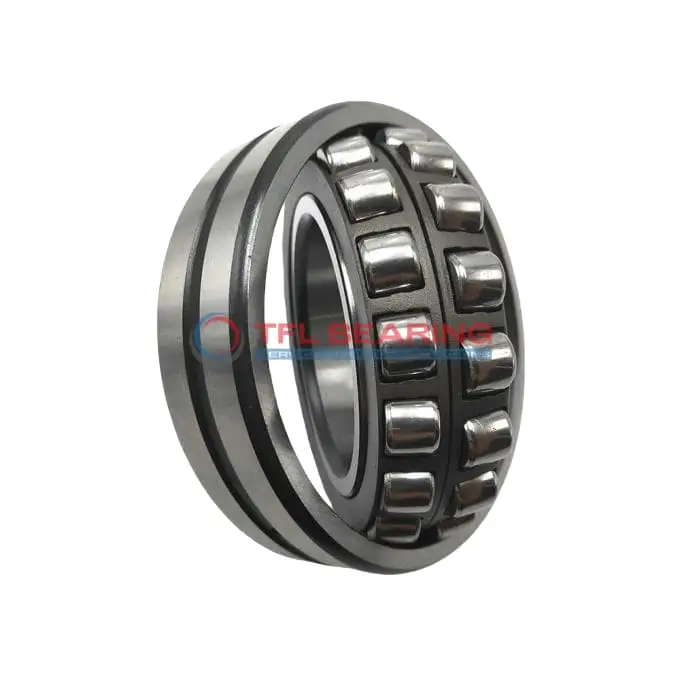

22213 C/W33 Double Row Spherical Roller Bearing

22213 C/W33 Double Row Spherical Roller Bearing

The 22213 C/W33 is a double-row spherical roller bearing with a 65mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 44512 lbf and operates smoothly at speeds up to 7000 RPM.
Its spherical roller design allows for slight misalignment, while the steel cage ensures durability. The bearing includes lubrication grooves and holes for easy maintenance.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment.
Weighing 1.55kg, it’s built to handle high loads and temperatures from -30°C to 200°C. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22213 C/W33
  • Brand TFL
  • Interchangeable SKF
  • Size 65 x 120 x 31 mm
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 31 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 80.1 mm
  • Shoulder/Recess Dia Of Outer Ring 106 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44512 lbf
  • Static Radial Load 48559 lbf
  • Max Speed 7000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.55 kg
  • Price （US$） 39.6

Features

Performance Features of 22213 C/W33 Bearing

22213 C/W33 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 44512 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 7000 rpm, it delivers reliable performance in high-speed environments.

22213 C/W33 Bearing operates efficiently in temperatures ranging from -30° to 200 °C.
Its steel cage maintains roller alignment, reducing friction and extending service life.

The lubrication groove and hole design in 22213 C/W33 Bearing ensure consistent lubrication.
This feature helps minimise wear and maintenance requirements over time.

Application

Industrial Uses of 22213 C/W33 Bearing
The 22213 C/W33 Bearing is commonly used in heavy machinery like conveyor systems and crushers, where its double-row design handles both radial and axial loads efficiently.
Its spherical roller construction allows for slight misalignment, making it ideal for rugged industrial environments.

Where Is 22213 C/W33 Bearing Used?
You’ll often find 22213 C/W33 Bearing in mining equipment, where its high dynamic load capacity ensures reliable performance under extreme conditions.
The lubrication groove and hole design make maintenance straightforward, even in dusty or high-temperature settings.

Built for Heavy-Duty Use: 22213 C/W33 Bearing
In wind turbines, 22213 C/W33 Bearing supports the main shaft, thanks to its ability to handle combined loads and high speeds.
The chrome steel construction and steel cage provide durability, ensuring long service life in demanding applications.

Automotive vs Aerospace: Applications of 22213 C/W33 Bearing
In automotive applications, 22213 C/W33 Bearing is used in heavy-duty trucks for axle support, where its robustness is key.
For aerospace, its high-temperature tolerance makes it suitable for auxiliary systems, though it’s more common in ground-based machinery.
