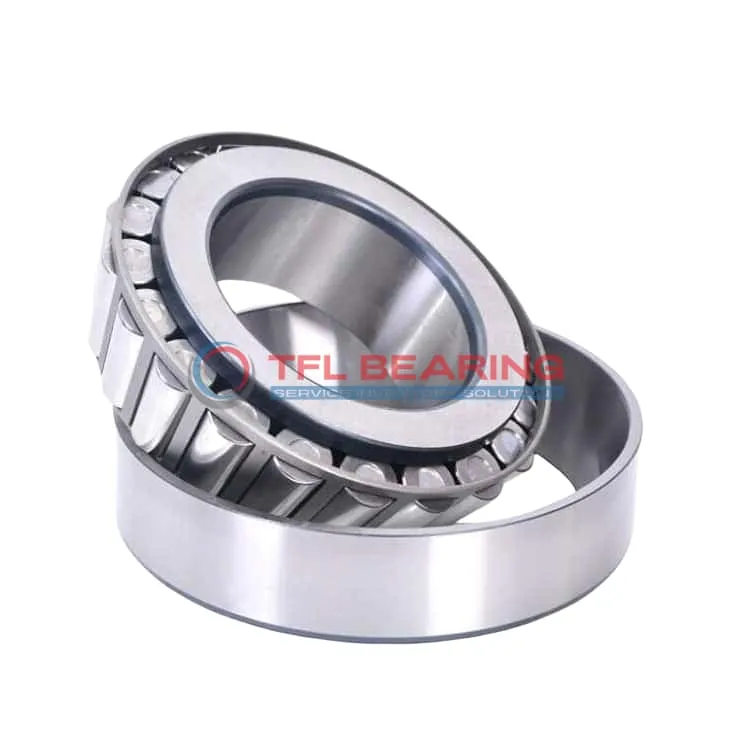

TS (Single Row Tapered Roller Bearings) (Imperial) 370A-362

TS (Single Row Tapered Roller Bearings) (Imperial) 370A-362

The 370A-362 is a single-row tapered roller bearing with a 2″ bore and 3.5433″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 22900 lbf radially and 3250 lbf in thrust, making it versatile for various applications.

Its open design simplifies lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery like gearboxes or axles where combined loads are common.

Weighing just 1.1 lb, it balances strength and portability. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 370A-362
  • Brand TFL
  • Interchangeable Timken
  • Size 2" x 3.5433" x 0.7874"
  • Bore Dia 2"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.5433"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.7874"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.2"
  • Cup Backface ToClear Radius 0.08"
  • Cone Frontface Backing Diameter 2.2"
  • Cone Backface Backing Diameter 2.56"
  • Cup Frontface Backing Diameter 3.34"
  • Cup Backface Backing Diameter 3.19"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.17"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 370A
  • Cup Part Number 362
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 365
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22900 lbf
  • Static Radial Load 21500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5930 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3250 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.1 lb

Features

How Does 370A-362 Bearing Handle Combined Loads?

370A-362 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 22,900 lbf, making it suitable for demanding industrial applications.
The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

Application

Industrial Uses of 370A-362 Bearing
370A-362 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

Where Is 370A-362 Bearing Used?
You’ll often find 370A-362 Bearing in automotive applications like wheel hubs and differentials, thanks to its ability to manage both radial and thrust loads. Its imperial sizing makes it a good fit for North American vehicle models.

Built for Heavy-Duty Use: 370A-362 Bearing
370A-362 Bearing excels in industrial settings like conveyor systems, where its open design allows for easy lubrication. The steel cage adds extra strength, making it reliable for continuous operation.

Automotive vs Aerospace: Applications of 370A-362 Bearing
In automotive systems, 370A-362 Bearing supports high-load components like axles, while in aerospace, it’s used in landing gear mechanisms. Its temperature range suits both environments well.

Key Fields for 370A-362 Bearing
370A-362 Bearing is a solid choice for mining equipment, where its robust design handles harsh conditions. The standard radial clearance ensures smooth performance under varying loads.
