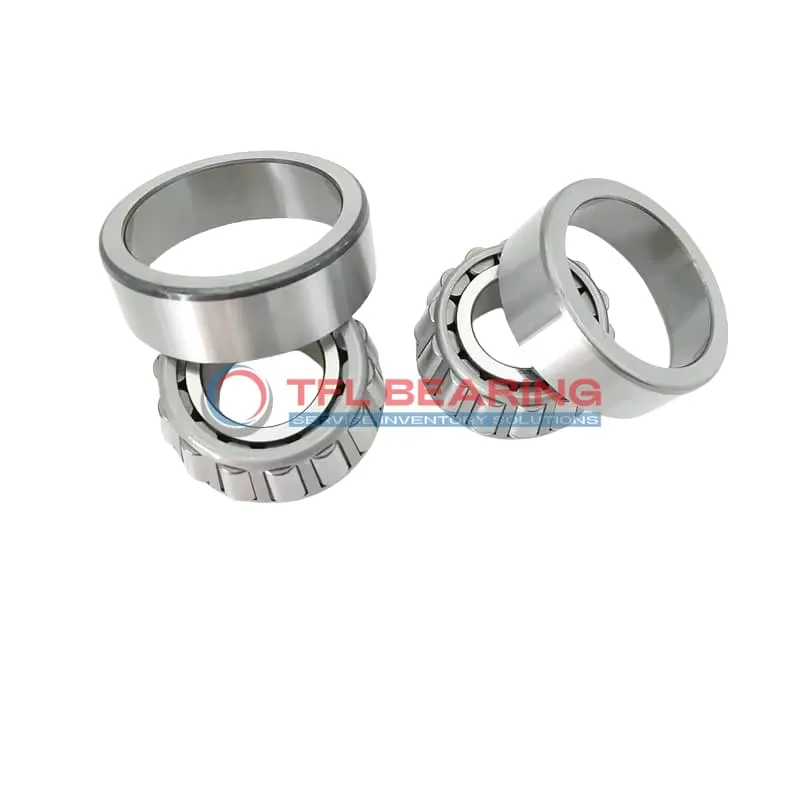

TS (Single Row Tapered Roller Bearings) (Imperial) 4367-4335

TS (Single Row Tapered Roller Bearings) (Imperial) 4367-4335

The 4367-4335 is a single-row tapered roller bearing with a 1.5625″ bore and 3.5625″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 44700 lbf radially and 5640 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery, gearboxes, or industrial equipment where combined loads are common.

Weighing 2.8 lb, it balances strength and manageability. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 4367-4335
  • Brand TFL
  • Interchangeable Timken
  • Size 1.5625" x 3.5625" x 1.5625"
  • Bore Dia 1.5625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.5625"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.59"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.3125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.5625"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.05"
  • Cone Backface Backing Diameter 2.32"
  • Cup Frontface Backing Diameter 3.39"
  • Cup Backface Backing Diameter 3.03"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.06"
  • Effective Center Location -0.59"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 4367
  • Cup Part Number 4335
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 4300
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44700 lbf
  • Static Radial Load 45900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5640 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.8 lb

Features

Performance Features of 4367-4335 Bearing

4367-4335 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 44,700 lbf, ensuring reliable performance in various applications.
The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

Why Choose 4367-4335 Bearing for Precision Tasks?

4367-4335 Bearing’s tapered roller design provides precise load distribution, enhancing stability.
The chrome steel construction ensures durability while maintaining smooth operation under stress.
Its ABEC-1 rating guarantees consistent performance for standard precision requirements.
The open seal type allows for easy lubrication, keeping maintenance straightforward.

Engineered for Reliability: 4367-4335 Bearing

4367-4335 Bearing features a single-row construction, optimised for combined load handling.
The standard radial clearance offers flexibility for different installation needs.
With a static radial load capacity of 45,900 lbf, it delivers dependable performance.
Its inch measurements make it compatible with imperial system machinery.

Application

Industrial Uses of 4367-4335 Bearing
The 4367-4335 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in tough working conditions.

Where Is 4367-4335 Bearing Used?
You’ll often find the 4367-4335 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a good fit for American-made vehicles and industrial machinery.

Built for Heavy-Duty Use: 4367-4335 Bearing
The 4367-4335 Bearing excels in conveyor systems and mining equipment, thanks to its high dynamic radial load capacity. The open design allows for easy lubrication, extending its service life in demanding environments.

Automotive vs Aerospace: Applications of 4367-4335 Bearing
In automotive settings, the 4367-4335 Bearing supports drivetrain components, while in aerospace, it’s used in auxiliary systems where reliability is key. Its ABEC-1 rating ensures consistent performance across different industries.

Essential Roles of 4367-4335 Bearing
For industrial pumps and compressors, the 4367-4335 Bearing provides stable performance under radial and thrust loads. The steel cage adds strength, making it suitable for high-vibration applications.
