TS (Single Row Tapered Roller Bearings) (Imperial) 82562A-J82945

TS (Single Row Tapered Roller Bearings) (Imperial) 82562A-J82945

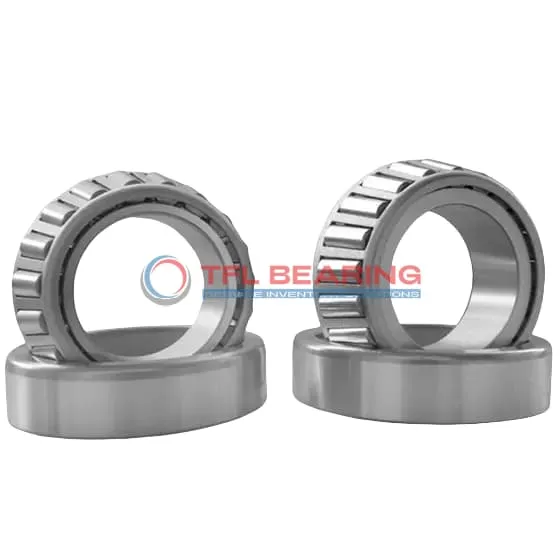

The 82562A-J82945 is a single-row tapered roller bearing with a 5.625″ bore and 9.4488″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 116,000 lbf radially and 22,700 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or heavy equipment where robust performance is needed.

Weighing 21.8 lb, it’s designed for long-lasting use and complies with RoHS and REACH standards. The standard radial clearance ensures versatility in various setups.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 82562A-J82945
  • Brand TFL
  • Interchangeable Timken
  • Size 5.625" x 9.4488" x 2.2501"
  • Bore Dia 5.625"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 9.4488"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.23"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.2501"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.310"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 7.08"
  • Cone Backface Backing Diameter 6.77"
  • Cup Frontface Backing Diameter 8.94"
  • Cup Backface Backing Diameter 8.46"
  • Cage Cone Frontface Clearance 0.12"
  • Cage Cone Backface Clearance 0.15"
  • Effective Center Location -0.14"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 82562A
  • Cup Part Number J82945
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 82000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 116000 lbf
  • Static Radial Load 182000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 30000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 22700 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 21.8 lb

Features

Performance Features of 82562A-J82945 Bearing

82562A-J82945 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 116,000 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

How Is 82562A-J82945 Bearing Engineered for Reliability?

82562A-J82945 Bearing features precise cone and cup dimensions, ensuring smooth operation under combined loads.
The standard radial clearance allows for flexibility in different applications.
Its chrome steel construction provides durability and resistance to wear.
With an ABEC-1 rating, it balances precision and cost-effectiveness.

Built for Durability: 82562A-J82945 Bearing

82562A-J82945 Bearing’s single-row tapered roller design handles both radial and thrust loads efficiently.
The steel cage and chrome steel rollers enhance its longevity and performance.
It operates within a wide temperature range, making it suitable for various industrial uses.
Regular lubrication ensures consistent performance and reduces maintenance needs.

Steel vs Ceramic Bearings: Strengths of 82562A-J82945 Bearing

82562A-J82945 Bearing uses chrome steel for both rings and rollers, providing excellent strength and durability.
Its dynamic radial load capacity of 116,000 lbf makes it ideal for heavy machinery.
The steel cage design ensures stable roller alignment, minimising wear.
With a standard radial clearance, it offers reliable performance in diverse applications.

Application

Industrial Uses of 82562A-J82945 Bearing
The 82562A-J82945 Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in tough working conditions.

Why Is 82562A-J82945 Bearing Essential in Machinery?
In automotive applications, 82562A-J82945 Bearing supports axles and gearboxes, providing reliable performance under high radial and thrust loads. The inch sizing makes it compatible with many North American industrial and vehicle systems.

Built for Heavy-Duty Use: 82562A-J82945 Bearing
This bearing is ideal for agricultural machinery, like tractors and harvesters, where its robust design withstands constant vibration and heavy loads. The steel cage adds extra strength for long-term use in demanding environments.

Light-Duty vs Heavy-Duty: Best Uses for 82562A-J82945 Bearing
For light-duty applications, 82562A-J82945 Bearing works well in conveyor systems, while heavy-duty versions excel in industrial presses. Its standard radial clearance offers flexibility across different machinery types.
