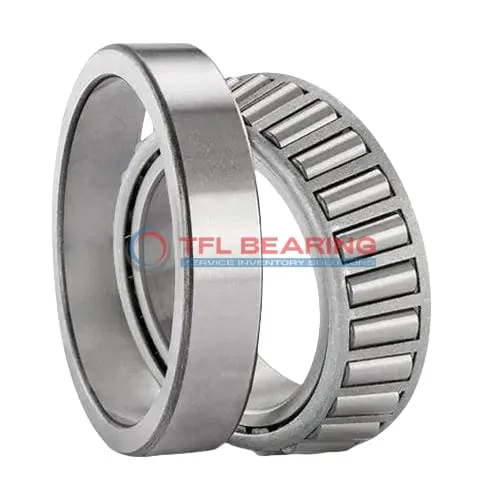

TS (Single Row Tapered Roller Bearings) (Imperial) LM603049-LM603015

TS (Single Row Tapered Roller Bearings) (Imperial) LM603049-LM603015

The LM603049-LM603015 is a single-row tapered roller bearing with a 1.78″ bore and 3.15″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 17200 lbf radially and 3250 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are common.

Weighing just 0.9 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number LM603049-LM603015
  • Brand TFL
  • Interchangeable Timken
  • Size 1.7812" x 3.1486" x 0.8437"
  • Bore Dia 1.7812"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.1486"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.7812"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.6562"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8437"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 2.05"
  • Cone Backface Backing Diameter 2.28"
  • Cup Frontface Backing Diameter 2.99"
  • Cup Backface Backing Diameter 2.8"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.09"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number LM603049
  • Cup Part Number LM603015
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series LM603000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 17200 lbf
  • Static Radial Load 17500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 4450 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3250 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.9 lb

Features

Performance Features of LM603049-LM603015 Bearing

LM603049-LM603015 Bearing is crafted from chrome steel, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 17,200 lbf, ensuring reliable operation in demanding conditions.

The tapered roller design enhances load distribution, reducing stress and extending service life.
With a standard radial clearance, it provides flexibility for various applications.

LM603049-LM603015 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design simplifies lubrication, ensuring smooth performance over time.

The steel cage maintains roller alignment, minimising wear and noise.
This bearing is interchangeable with Timken models, offering versatility and convenience.

Application

Industrial Uses of LM603049-LM603015 Bearing
LM603049-LM603015 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, LM603049-LM603015 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a convenient choice for North American vehicle models.

For industrial conveyors, LM603049-LM603015 Bearing’s open design allows for easy lubrication, extending service life in high-use scenarios. The steel cage adds extra strength, making it suitable for continuous operation.

What Makes LM603049-LM603015 Bearing a Preferred Choice?
LM603049-LM603015 Bearing stands out in applications like gearboxes, where its tapered rollers manage both radial and thrust loads smoothly. The standard radial clearance offers flexibility for different operational needs.

In robotics, LM603049-LM603015 Bearing’s precise engineering supports accurate movement in robotic arms. Its temperature range ensures stability even during prolonged use.

Built for Heavy-Duty Use: LM603049-LM603015 Bearing
LM603049-LM603015 Bearing excels in mining equipment, where its robust design withstands extreme conditions. The chrome steel rollers resist wear, reducing maintenance frequency.

For printing machinery, LM603049-LM603015 Bearing’s smooth operation ensures consistent print quality. The ABEC-1 rating provides adequate precision for most industrial needs.

Automotive vs Aerospace: Applications of LM603049-LM603015 Bearing
In automotive systems, LM603049-LM603015 Bearing is ideal for transmissions, offering reliable load handling. Its compatibility with Timken models simplifies replacements.

For aerospace ground equipment, LM603049-LM603015 Bearing’s durability supports heavy loads during aircraft maintenance. The inch sizing aligns with standard tooling requirements.
