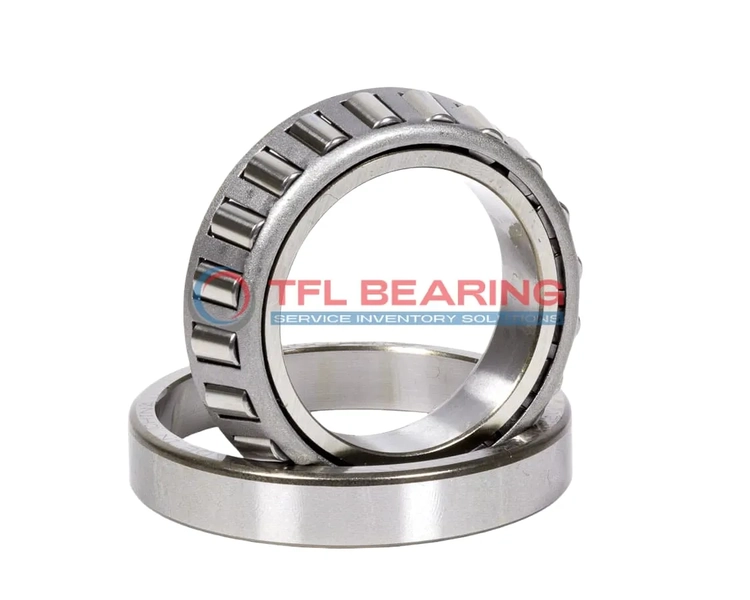

TS (Single Row Tapered Roller Bearings) (Imperial) 595-592A

TS (Single Row Tapered Roller Bearings) (Imperial) 595-592A

The 595-592A is a single-row tapered roller bearing with a 3.25″ bore and 6″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 48,600 lbf radially and 9,530 lbf thrust, making it a versatile choice for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C, suitable for various industrial environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in gearboxes, wheel hubs, or machinery where combined loads are common.

Weighing 6.6 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 595-592A
  • Brand TFL
  • Interchangeable Timken
  • Size 3.25" x 6" x 1.5625"
  • Bore Dia 3.25"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 6"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.43"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.1875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.5625"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.43"
  • Cone Backface Backing Diameter 3.94"
  • Cup Frontface Backing Diameter 5.71"
  • Cup Backface Backing Diameter 5.31"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.15"
  • Effective Center Location -0.1"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 595
  • Cup Part Number 592A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 595
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 48600 lbf
  • Static Radial Load 71600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 9530 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 6.6 lb

Features

How Is 595-592A Bearing Engineered for Reliability?

595-592A Bearing features chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 48,600 lbf, making it suitable for heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a standard radial clearance, it offers flexibility for various industrial needs.

What Makes 595-592A Bearing Suitable for High-Temperature Applications?

595-592A Bearing operates effectively in temperatures ranging from -30° to 110°C, maintaining performance in diverse conditions.
The chrome steel construction resists wear, even under high thermal stress.
Its open design allows for easy lubrication, ensuring smooth operation.
This bearing is ideal for environments where temperature fluctuations are common.

Built for Durability: 595-592A Bearing

595-592A Bearing’s single-row tapered roller design provides reliable performance under combined loads.
The precision-engineered cage ensures proper roller spacing, minimising wear over time.
With a static radial load capacity of 71,600 lbf, it handles demanding applications with ease.
Its standard radial clearance options make it adaptable to various industrial requirements.

Application

Key Fields for 595-592A Bearing
In industrial settings, 595-592A Bearing is commonly used in heavy machinery like conveyor systems and gearboxes, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability in demanding environments.

Where Is 595-592A Bearing Used?
You’ll often find 595-592A Bearing in automotive applications, particularly in wheel hubs and differentials, where its high radial and thrust load capacity is essential. Its inch sizing makes it a fit for many American-made vehicles.

Built for Heavy-Duty Use: 595-592A Bearing
For construction equipment, 595-592A Bearing provides reliable performance in excavators and cranes, thanks to its robust steel cage and standard radial clearance. The open design allows for easy lubrication and maintenance.

Automotive vs Aerospace: Applications of 595-592A Bearing
While 595-592A Bearing excels in automotive drivetrains, it’s also suitable for aerospace landing gear components, where precision and load capacity are critical. The ABEC-1 rating ensures consistent performance in both fields.

Perfect Fit for Automation: 595-592A Bearing
In automated production lines, 595-592A Bearing supports robotic arms and assembly systems, offering smooth operation under varying loads. Its steel rollers and cage provide long-lasting reliability in high-cycle applications.
