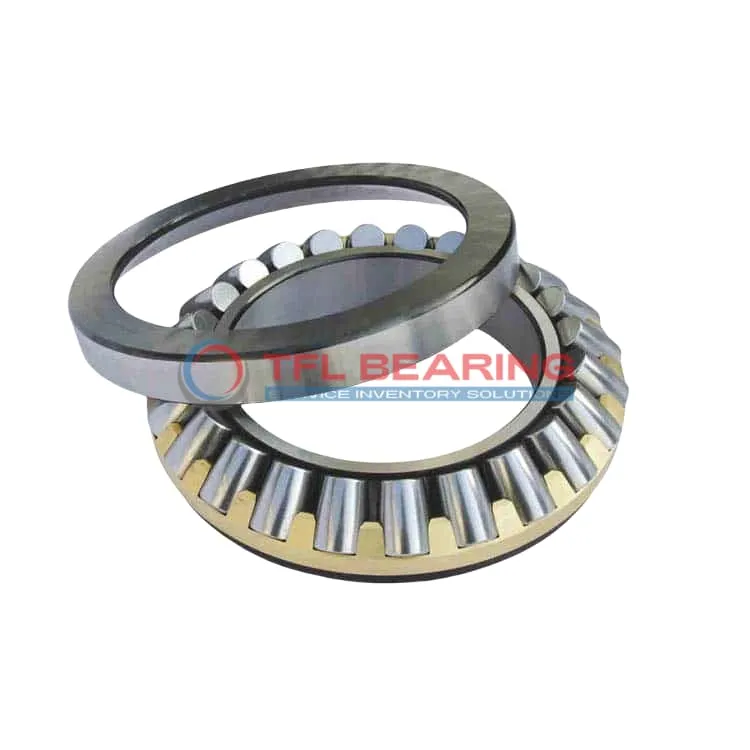

Spherical Roller Thrust Bearings 29264

Spherical Roller Thrust Bearings 29264

The 29264 is a spherical roller thrust bearing with a large 320mm bore and 440mm outer diameter, built to handle heavy combined loads. It supports dynamic thrust loads up to 249538 lbf and operates smoothly at speeds up to 1400 RPM.

Made from durable steel, its single-row design ensures reliable performance under demanding conditions. The bearing requires regular lubrication and works in temperatures from -30°C to 100°C.

Its spherical rollers accommodate misalignment, making it suitable for heavy machinery like industrial presses or mining equipment. The robust steel cage adds to its longevity.

Weighing 33kg, this bearing is built for strength and durability. It complies with RoHS and REACH standards, ensuring safe use in various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 29264
  • Brand TFL
  • Interchangeable SKF
  • Size 320 mm x 440 mm x 73 mm
  • Bore Dia 320 mm
  • Bore Dia Tolerance -0.04 to 0
  • Outer Dia 440 mm
  • Outer Dia Tolerance -0.045 to 0
  • Width 73 mm
  • Outside Diameter(d1) 430 mm
  • Shoulder Diameter Outer Ring (D1) 372 mm
  • Height Shaft Washer Cage(B1) 69 mm
  • Height Housing Washer(C) 38 mm
  • Distance From Shaft Washer End Side Face To Pressure Point(s) 172 mm
  • Chamfer Dimension Shaft Washer(r1,2) 3 mm
  • System of Measurement Metric
  • Roller Bearing Type Spherical
  • Bearing Type Roller
  • For Load Direction Combined
  • Construction Single Row
  • Roller Material Steel
  • Cage Material Steel
  • Dynamic Thrust Load 249538 lbf
  • Static Thrust Load 1146526 lbf
  • Max Speed 1400 rpm
  • Lubrication Required
  • Temperature Range -30 to 100 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 33 kg
  • Height Tolerance -0.125 to 0
  • Price（$） 1561.5

Features

Performance Features of 29264 Bearing

29264 Bearing is designed with a spherical roller construction, ideal for handling combined loads with ease.
Its dynamic thrust load capacity of 249538 lbf ensures robust performance in heavy-duty applications.

The steel rollers and cage provide durability, while the single-row design simplifies installation.
With a maximum speed of 1400 rpm, it balances efficiency and reliability.

29264 Bearing operates in temperatures from -30 to 100°C, making it versatile for various environments.
Its precise dimensions (320 mm x 440 mm x 73 mm) ensure compatibility with standard industrial equipment.

Application

Industrial Uses of 29264 Bearing
The 29264 Bearing is commonly used in heavy machinery like crushers and mining equipment, where its spherical roller design handles combined loads efficiently. Its robust steel construction ensures longevity even in demanding industrial environments.

Where Is 29264 Bearing Used?
You’ll often find 29264 Bearing in large-scale applications such as wind turbines and marine propulsion systems. Its high dynamic thrust load capacity makes it suitable for equipment requiring reliable performance under heavy stress.

Built for Heavy-Duty Use: 29264 Bearing
With a static thrust load capacity of over a million pounds, 29264 Bearing is ideal for applications like hydraulic presses and rolling mills. The steel cage and rollers provide durability, even in high-temperature conditions.

Automotive vs Aerospace: Applications of 29264 Bearing
In automotive settings, 29264 Bearing supports large drivetrain components, while in aerospace, it’s used in landing gear systems. Its metric sizing and high load capacity make it versatile across industries.

Practical Applications of 29264 Bearing
For conveyor systems in mining, 29264 Bearing offers reliable performance due to its ability to handle misalignment and heavy loads. The required lubrication ensures smooth operation over long periods.
