Spherical Roller Thrust Bearings 29352 E

Brand: TFL Bearing Interchangeable: SKF 29352 E 260 mm x 420 mm x 95 mm Metric
Part number: 29352 E
In Stock
US$1,539.00 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia260 mm
Bore Dia Tolerance-0.035 to 0
Outer Dia420 mm
Outer Dia Tolerance-0.045 to 0
Width95 mm
Outside Diameter(d1)382 mm
Shoulder Diameter Outer Ring (D1)324 mm
Height Shaft Washer Cage(B1)86.6 mm
Height Housing Washer(C)46 mm
Chamfer Dimension Shaft Washer(r1,2)5 mm
Height Tolerance-0.15 to 0
Width Shaft Washer Or Length Of Shaft(B)61 mm
Performance
Dynamic Thrust Load573,263 lbf
Static Thrust Load1,865,914 lbf
Max Speed1,400 rpm
Temperature Range-30 to 100 °C
Characteristics
Distance From Shaft Washer End Side Face To Pressure Point(s)148 mm
System of MeasurementMetric
Roller Bearing TypeSpherical
Bearing TypeRoller
For Load DirectionCombined
ConstructionSingle Row
LubricationRequired
Weight49 kg
Material
Roller MaterialSteel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant

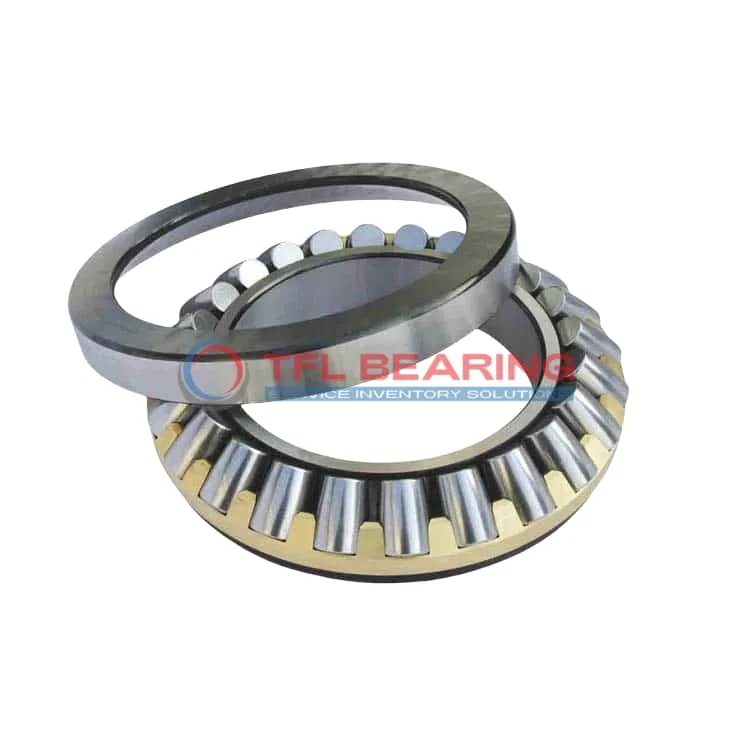

Product photo
Spherical Roller Thrust Bearings 29352 E

Description

The 29352 E is a spherical roller thrust bearing with a 260mm bore and 420mm outer diameter, built to handle heavy combined loads. It supports dynamic thrust loads up to 573263 lbf and operates smoothly at speeds up to 1400 RPM.

Made from durable steel, its single-row design ensures reliable performance in demanding conditions. The bearing requires regular lubrication and works well in temperatures from -30°C to 100°C.

Its spherical rollers and robust construction make it ideal for applications with misalignment or heavy thrust loads, such as industrial machinery or large gearboxes. Weighing 49kg, it’s a sturdy choice for heavy-duty use.

Compliant with RoHS and REACH standards, this model is interchangeable with SKF bearings, offering a practical replacement option. The chamfered edges (5mm) and precise dimensions ensure easy installation.

Features

Performance Features of 29352 E Bearing

29352 E Bearing is built with a spherical roller design, ideal for handling combined loads with high efficiency.
Its dynamic thrust load capacity of 573,263 lbf ensures reliable performance in heavy-duty applications.

The steel rollers and cage provide durability, reducing wear even under demanding conditions.
With a maximum speed of 1,400 rpm, it balances power and precision for industrial use.

29352 E Bearing operates smoothly within a temperature range of -30 to 100°C.
Its robust construction and precise tolerances make it suitable for long-term reliability.

Application

Industrial Uses of 29352 E Bearing
The 29352 E Bearing is commonly used in heavy machinery like crushers and mining equipment, where its spherical roller design handles combined loads efficiently. Its large size and high load capacity make it suitable for demanding industrial environments.

In wind turbine applications, 29352 E Bearing supports the main shaft, ensuring smooth rotation even under varying wind conditions. The steel construction provides durability, while the required lubrication ensures long-term performance.

For large-scale conveyor systems, 29352 E Bearing’s ability to manage thrust and radial loads simultaneously keeps operations running smoothly. The metric sizing ensures compatibility with a wide range of industrial equipment.

What Makes 29352 E Bearing a Preferred Choice?
The 29352 E Bearing is often chosen for its robust design, which excels in applications like marine propulsion systems. Its high static thrust load capacity ensures reliability in critical marine environments.

In steel mills, 29352 E Bearing withstands extreme conditions, including high temperatures and heavy loads. The steel cage and rollers provide the necessary strength for continuous operation.

For paper manufacturing machinery, 29352 E Bearing’s ability to handle combined loads reduces downtime. Its precise dimensions and tolerances ensure a perfect fit in complex systems.

Built for Heavy-Duty Use: 29352 E Bearing
The 29352 E Bearing is ideal for construction equipment like cranes, where its high dynamic thrust load capacity ensures stability. The single-row construction simplifies maintenance in tough conditions.

In oil and gas drilling rigs, 29352 E Bearing’s resistance to extreme pressures and temperatures makes it a reliable choice. The steel components offer excellent wear resistance over time.

For railway applications, 29352 E Bearing supports axle loads, providing smooth and safe operation. Its compliance with RoHS and REACH standards ensures environmental safety.

Automotive vs Aerospace: Applications of 29352 E Bearing
In automotive testing rigs, 29352 E Bearing handles high loads and speeds, ensuring accurate performance measurements. Its durability makes it suitable for prolonged use.

For aerospace ground support equipment, 29352 E Bearing’s precision and reliability are crucial. The wide temperature range allows it to perform in various weather conditions.

In both sectors, 29352 E Bearing’s metric sizing and high load capacity make it a versatile solution. The steel construction ensures long-lasting performance in diverse applications.
