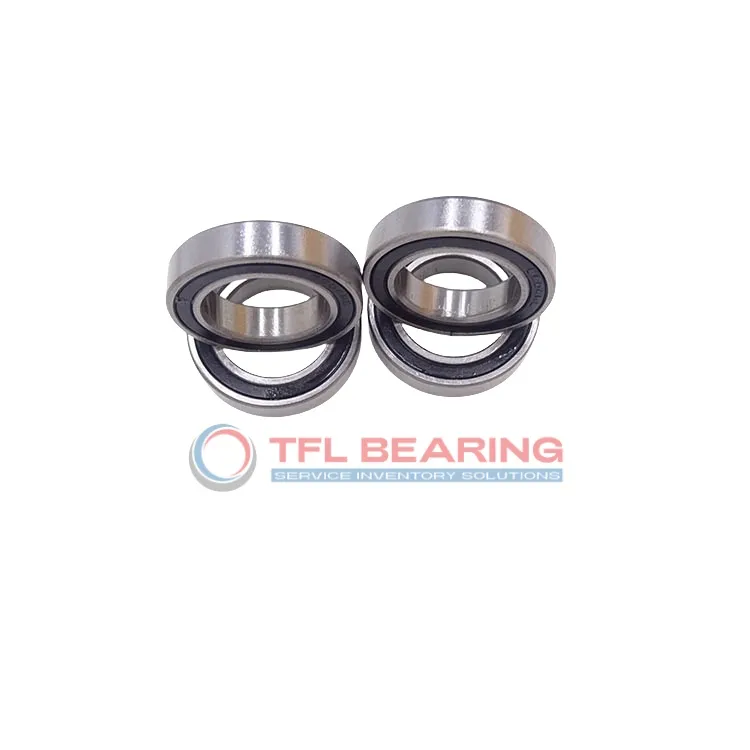

Thin Section Ball Bearings S6909 2rs

Thin Section Ball Bearings S6909 2rs

The S6909 2RS is a slim, sealed ball bearing measuring 45mm by 68mm by 12mm, crafted entirely from stainless steel for durability. It handles radial loads up to 2853 lbf and spins smoothly at speeds up to 9000 RPM.

Its sealed design keeps out dust and moisture, making it low-maintenance, while the stainless steel cage ensures reliable performance. The bearing operates well in temperatures from -86°F to 230°F.

With a radial clearance of 0.006mm to 0.023mm, it offers smooth rotation for precision applications. Ideal for use in machinery where space is tight but performance is key, such as robotics or medical equipment.

Weighing just 147g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a safe choice for various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S6909 2rs
  • Brand TFL
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 68 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 12 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.006mm to 0.023mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 2853 lbf
  • Static Radial Load 2205 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 9000 rpm
  • Weight 147 g
  • Price（$） 3
Thin Section Ball Bearings S6909 2rs dimension drawing
Download DWG Download PDF

Features

Why Choose S6909 2rs Bearing for Precision Tasks?

S6909 2rs Bearing features a sealed design, protecting against contaminants and ensuring smooth operation.
Its stainless steel construction provides excellent resistance to corrosion, making it suitable for various environments.

The bearing’s dynamic radial load capacity of 2853 lbf ensures reliable performance under stress.
With a maximum speed of 9,000 rpm, it balances precision and durability in demanding applications.

S6909 2rs Bearing operates within a wide temperature range of -86 to 230°F, maintaining performance in extreme conditions.
Its ABEC-1 tolerance class guarantees consistent precision for radial load tasks.

The stainless steel cage keeps the balls aligned, reducing wear and extending service life.
This makes S6909 2rs Bearing a practical choice for applications requiring long-term reliability.

Application

Common Applications of S6909 2rs Bearing
S6909 2rs Bearing is widely used in industrial automation, especially in robotic arms and precision machinery where its thin section design saves space without compromising performance. The sealed construction keeps contaminants out, ensuring longer service life.

In automotive applications, S6909 2rs Bearing fits well in electric motors and steering systems, thanks to its stainless steel build that resists corrosion. Its ABEC-1 tolerance ensures smooth operation even under moderate loads.

For medical devices like surgical tools, S6909 2rs Bearing offers reliable performance with its low-friction design. The wide temperature range makes it suitable for sterilisation processes without losing efficiency.

In consumer electronics, S6909 2rs Bearing is a go-to for printers and small appliances where quiet operation is key. The lightweight design and sealed feature reduce maintenance needs in everyday use.
