Snap Ring Groove Ball Bearings 6211 NRJEM

Snap Ring Groove Ball Bearings 6211 NRJEM

The 6211 NRJEM is a snap ring groove ball bearing with a 55mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 10386 lbf and operates smoothly at speeds up to 9000 RPM.

Its single-row design and open seal make it easy to maintain, while the snap ring feature ensures secure fitting. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 0.6kg, it’s a robust choice for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6211 NRJEM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 55 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 21 mm
  • Width Tolerance -0.15mm to 0
  • Outside Diameter Of Snap Ring 106.5 mm
  • Width Of Snap Ring 2.46 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 10386 lbf
  • Static Radial Load 6519 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 9000 rpm
  • Weight 0.6 kg
  • Price（$） 15.47

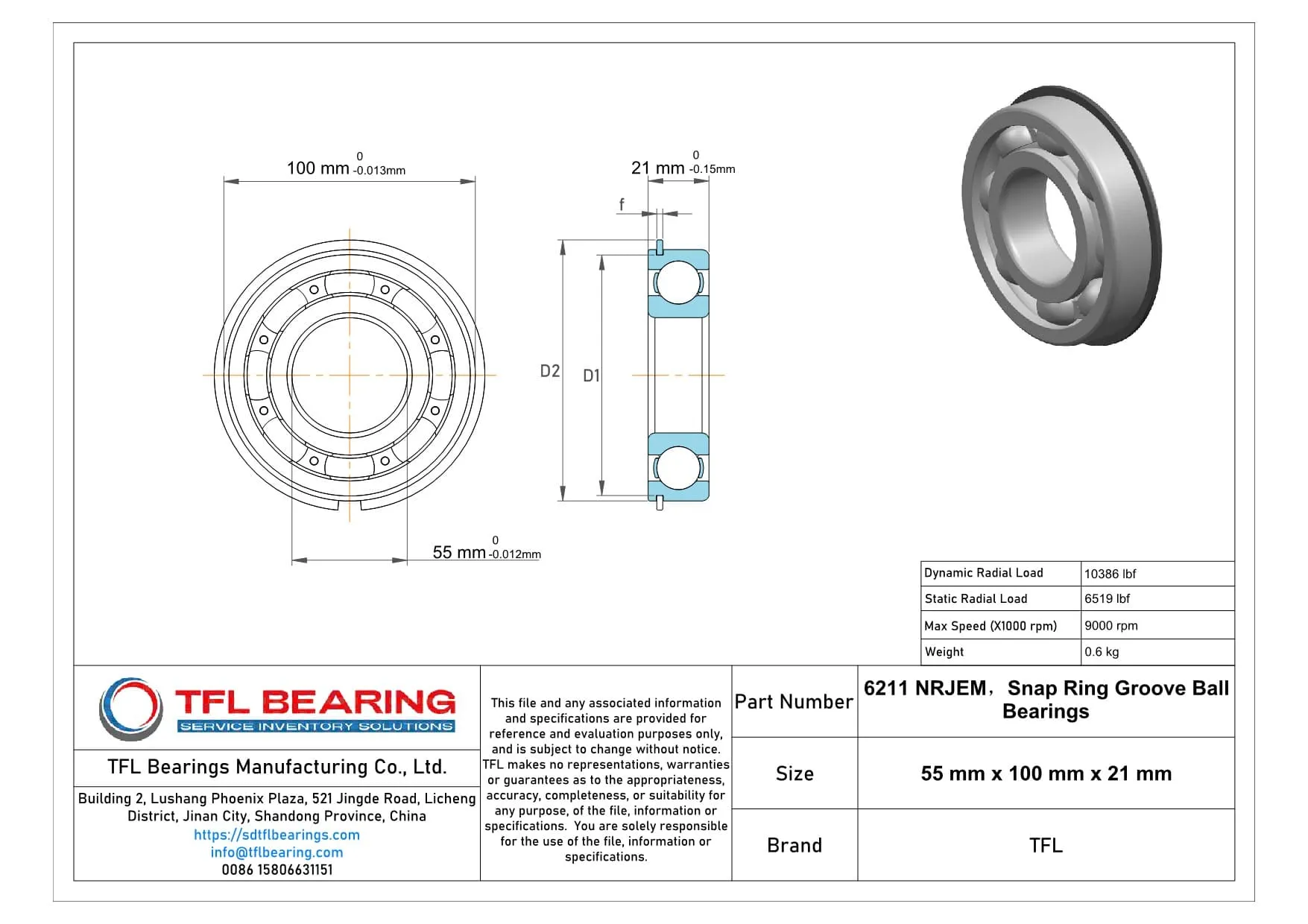

Snap Ring Groove Ball Bearings 6211 NRJEM dimension drawing
Download DWG Download PDF

Features

How Does 6211 NRJEM Bearing Reduce Friction?

6211 NRJEM Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
The single-row design and snap ring groove provide stability, reducing wear during radial load applications.

Its dynamic radial load capacity of 10,386 lbf ensures reliable performance under pressure.
With a maximum speed of 9,000 rpm, it maintains efficiency without compromising durability.

The open seal design allows for easy lubrication, further enhancing its low-friction properties.
6211 NRJEM Bearing operates smoothly in temperatures ranging from -30°C to 120°C.

Application

Common Applications of 6211 NRJEM Bearing
In industrial settings, 6211 NRJEM Bearing is widely used in conveyor systems and electric motors, thanks to its snap ring feature that ensures secure mounting. The open design allows for easy lubrication, extending its service life in demanding environments.

Where Is 6211 NRJEM Bearing Used?
You’ll often find 6211 NRJEM Bearing in automotive applications like alternators and water pumps, where its radial load capacity and snap ring design provide reliable performance. Its metric sizing makes it a versatile choice for various vehicle models.

Ideal for Precision: 6211 NRJEM Bearing
For medical devices such as centrifuges, 6211 NRJEM Bearing offers smooth operation due to its chrome steel construction. The snap ring ensures precise alignment, which is crucial in high-accuracy equipment.

Automotive vs Industrial: Applications of 6211 NRJEM Bearing
In automotive systems, 6211 NRJEM Bearing handles radial loads in components like fans and pulleys. Meanwhile, in industrial machinery, its durability shines in pumps and gearboxes, where consistent performance is key.

Practical Applications of 6211 NRJEM Bearing
In home appliances like washing machines, 6211 NRJEM Bearing provides quiet and efficient operation. The snap ring design simplifies installation, making it a practical choice for manufacturers.
