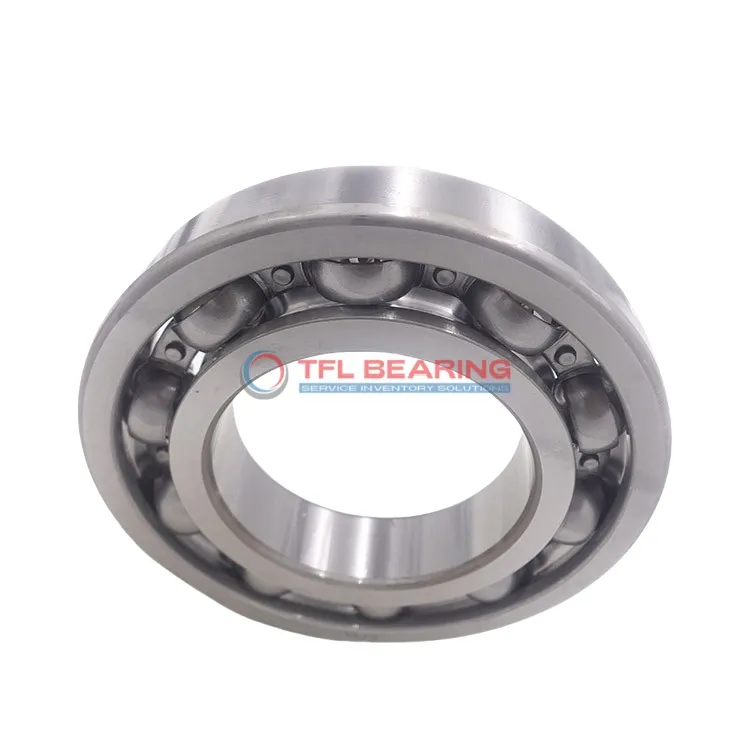

Single Row Deep Groove Ball Bearings 16030/W64

Single Row Deep Groove Ball Bearings 16030/W64

The 16030/W64 is a single-row deep groove ball bearing with a 150mm bore and 225mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 20727 lbf and operates smoothly at speeds up to 2900 RPM.

Its open design and solid oil lubrication ensure easy maintenance and consistent performance. The bearing works reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for industrial machinery or heavy equipment where radial loads are common.

Weighing 2600g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16030/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 225 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 24 mm
  • Width Tolerance -0.250mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 20727 lbf
  • Static Radial Load 22031 lbf
  • Max Speed 2900 rpm
  • Weight 2600 g
  • price（$） 175.302
Single Row Deep Groove Ball Bearings 16030/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 16030/W64 Bearing

16030/W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 20727 lbf, ensuring reliable performance in various applications.

The solid oil lubrication reduces maintenance needs while extending the bearing’s service life.
With a maximum speed of 2,900 rpm, it balances durability and efficiency.

16030/W64 Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its open design allows for easy installation and reduces operational costs.

Application

Common Applications of 16030/W64 Bearing
In industrial settings, 16030/W64 Bearing is commonly used in machinery like pumps and electric motors, where its radial load capacity ensures reliable performance. The open design and solid oil lubrication make it suitable for environments where maintenance access is limited.

Where Is 16030/W64 Bearing Used?
You’ll often find 16030/W64 Bearing in automotive applications such as wheel hubs and transmissions, thanks to its durability and smooth operation. Its metric sizing also makes it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: 16030/W64 Bearing
For automation systems, 16030/W64 Bearing provides stability in robotic arms and conveyor belts, handling consistent radial loads with ease. The chrome steel construction ensures long-lasting performance even in demanding conditions.

Light-Duty vs Heavy-Duty: Best Uses for 16030/W64 Bearing
In consumer electronics like printers and fans, 16030/W64 Bearing offers quiet and efficient operation. For heavier tasks, it’s equally capable in industrial gearboxes and large-scale machinery.
