Thin Section Ball Bearings 6803zz

Thin Section Ball Bearings 6803zz

The 6803zz is a compact thin-section ball bearing, measuring 17mm by 26mm by 5mm, crafted from durable chrome steel. Its shielded design keeps dirt out while maintaining smooth operation.

This bearing handles radial loads up to 502 lbf and spins at speeds reaching 29,000 RPM, making it suitable for fast-moving applications. The stainless steel cage ensures reliable performance under stress.

With a C0 radial clearance, it offers stable rotation in precision equipment. The bearing operates in temperatures from -30°C to 110°C, requiring proper lubrication for optimal use.

Ideal for small machinery, robotics, or medical devices where space is limited. Compliant with RoHS and REACH standards, it’s a safe choice for various industries. At just 8.2 grams, it’s lightweight yet sturdy.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6803zz
  • Brand TFL
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 26 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 5 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.003mm to 0.018mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 502 lbf
  • Static Radial Load 328 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 29000 rpm
  • Weight 8.2 g
  • Price（$） 1.8

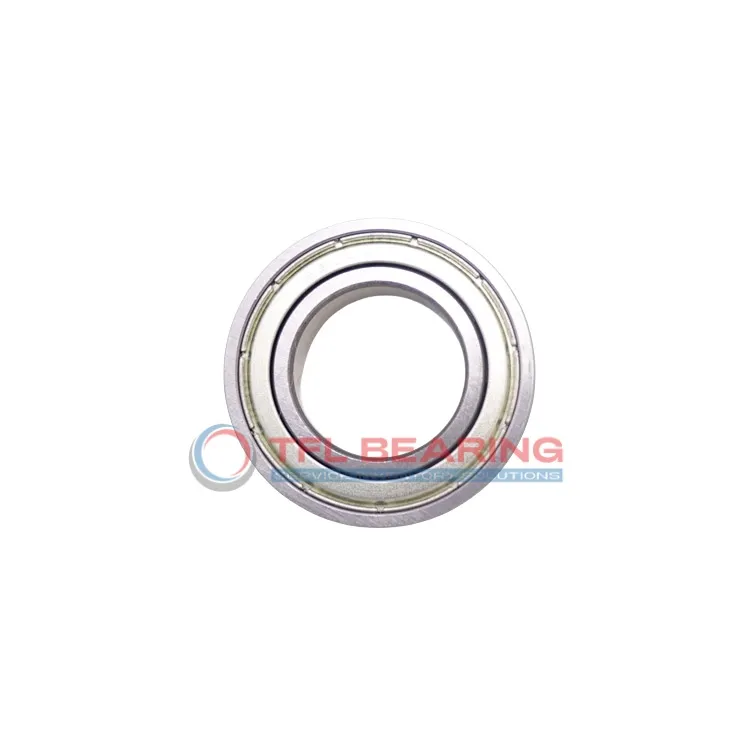

Thin Section Ball Bearings 6803zz dimension drawing
Download DWG Download PDF
