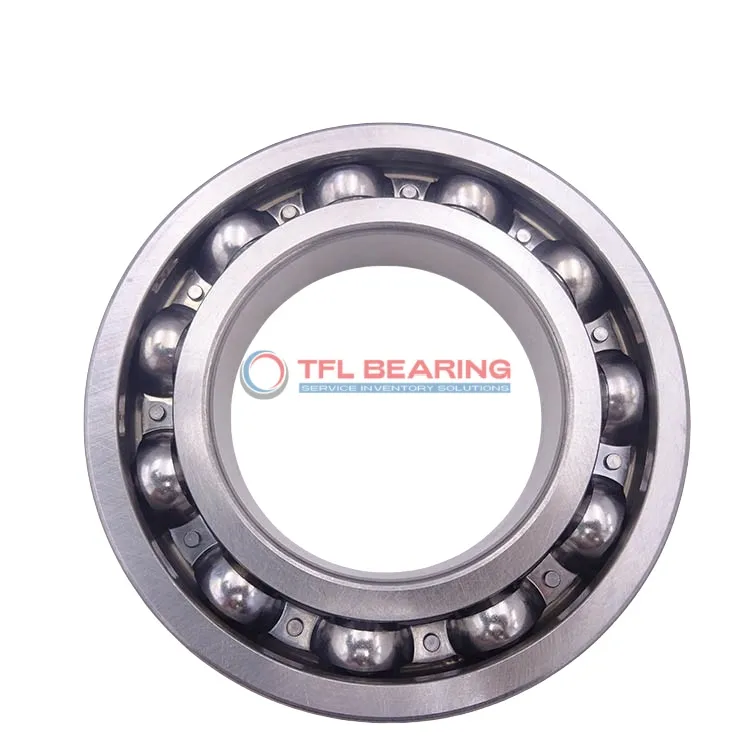

Single Row Deep Groove Ball Bearings 61922 MA

Single Row Deep Groove Ball Bearings 61922 MA

The 61922 MA is a single-row deep groove ball bearing with a 110mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 9802 lbf and operates smoothly at speeds up to 7500 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 1.04kg, it balances strength and lightness. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61922 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 9802 lbf
  • Static Radial Load 10116 lbf
  • Max Speed 7500 rpm
  • Weight 1.04 kg
  • price（$） 173.106
Single Row Deep Groove Ball Bearings 61922 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of 61922 MA Bearing

61922 MA Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 9802 lbf, ensuring reliable performance in various applications.

The stainless steel cage maintains ball alignment, reducing friction and extending service life.
With a maximum speed of 7,500 rpm, it delivers a balance of durability and efficiency.

61922 MA Bearing operates smoothly in temperatures ranging from -30° to 120°C.
Its open design allows for easy lubrication, making maintenance straightforward.

The P6 tolerance class ensures high precision, suitable for demanding industrial uses.
Weighing just 1.04 kg, it combines strength with a lightweight design.

Application

Industrial Uses of 61922 MA Bearing
61922 MA Bearing is commonly used in machine tools, where its deep groove design handles radial loads efficiently. The open seal allows for easy lubrication, extending its service life in demanding conditions.

In automotive applications, 61922 MA Bearing fits well in electric motors and pumps, providing smooth rotation. Its chrome steel construction ensures durability even under continuous operation.

For automation systems, 61922 MA Bearing supports robotic arms and conveyor belts with reliable performance. The P6 tolerance class makes it suitable for precision-driven tasks.

Where Is 61922 MA Bearing Used?
You’ll find 61922 MA Bearing in industrial fans, where its high-speed capability and radial load capacity are key. The stainless steel cage adds corrosion resistance for long-term use.

In household appliances like washing machines, 61922 MA Bearing offers quiet and efficient operation. Its metric sizing ensures compatibility with a wide range of European models.
