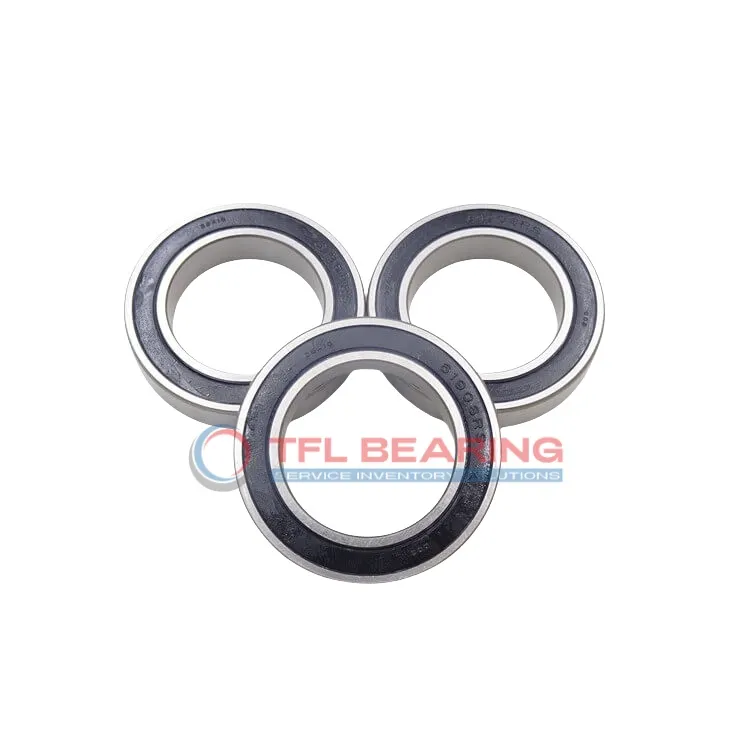

Thin Section Ball Bearings SET2316 2RS

Thin Section Ball Bearings SET2316 2RS

The SET2316 2RS is a compact thin-section ball bearing, measuring 16mm by 23mm by 4.5mm, crafted entirely from stainless steel for durability. It handles radial loads up to 196 lbf and spins smoothly at speeds up to 9000 RPM.

Sealed on both sides, this bearing keeps out dust and moisture, making it low-maintenance. Its ABEC-1 tolerance ensures reliable performance for everyday applications.

With a temperature range of -86°F to 230°F, it suits various environments. The lightweight design (just 5.29g) works well in small spaces like robotics or medical devices.

Compliant with RoHS and REACH standards, it’s a safe choice for precision equipment needing smooth, consistent rotation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SET2316 2RS
  • Brand TFL
  • Bore Dia 16 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 23 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 4.5 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.003mm to 0.018mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 196 lbf
  • Static Radial Load 125 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 9000 rpm
  • Weight 5.29 g
  • Price（$） 2.2
Thin Section Ball Bearings SET2316 2RS dimension drawing
Download DWG Download PDF

Features

How Does SET2316 2RS Bearing Reduce Friction?

SET2316 2RS Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its sealed design helps retain lubrication, further reducing wear and enhancing performance.
The single-row construction and precise radial clearance of 0.003mm to 0.018mm contribute to its efficiency.
With a maximum speed of 9,000 rpm, it delivers reliable performance in various applications.

Application

Common Applications of SET2316 2RS Bearing
SET2316 2RS Bearing works well in compact machinery like small electric motors, where its thin design saves space without sacrificing performance. The sealed construction keeps out dust and debris, making it ideal for environments where cleanliness matters.

In robotics, SET2316 2RS Bearing helps with smooth movement in joints and pivots, thanks to its stainless steel build. Its lightweight nature also reduces strain on moving parts, extending the life of automated systems.

For medical devices, SET2316 2RS Bearing’s precise tolerances ensure reliable operation in equipment like dental tools or lab instruments. The wide temperature range means it can handle both sterilisation and cold storage without issues.

Around the home, SET2316 2RS Bearing fits neatly into appliances like blenders or printers, where quiet running is a plus. The corrosion-resistant materials mean it holds up well even with frequent use.

In industrial settings, SET2316 2RS Bearing suits light conveyor systems where radial loads are moderate but consistent. The ABEC-1 rating provides good balance between precision and cost for general applications.
