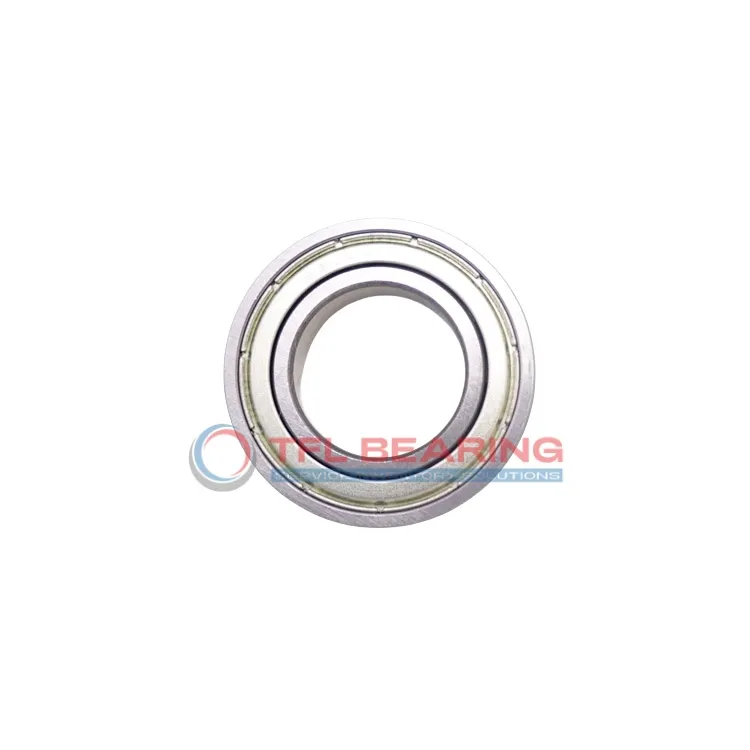

Thin Section Ball Bearings 6707zz

Thin Section Ball Bearings 6707zz

The 6707zz is a slim, shielded ball bearing with a 35mm bore and 44mm outer diameter, measuring just 5mm wide. Made from chrome steel, it handles radial loads up to 418 lbf and spins smoothly at 6000 RPM.

Its stainless steel cage and shielded design keep dirt out while maintaining smooth operation. The bearing works in temperatures from -30°C to 110°C and requires regular lubrication for best performance.

This lightweight unit weighs only 15g, making it ideal for compact spaces like small motors or precision instruments. Compliant with RoHS and REACH standards, it’s a reliable choice for everyday industrial use.

With ABEC-1 tolerance and C0 radial clearance, it balances affordability and performance. Perfect for applications where space is tight but reliability is key.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6707zz
  • Brand TFL
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 44 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 5 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.006mm to 0.020mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 418 lbf
  • Static Radial Load 367 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6000 rpm
  • Weight 15 g
  • Price（$） 2.2
Thin Section Ball Bearings 6707zz dimension drawing
Download DWG Download PDF

Features

Performance Features of 6707zz Bearing

6707zz Bearing features a compact design with dimensions of 35 mm×44 mm×5 mm, ideal for space-constrained applications.
Its shielded construction helps keep contaminants out while maintaining smooth radial load performance.

The chrome steel rings and balls ensure durability, supporting dynamic radial loads up to 418 lbf.
With a maximum speed of 6,000 rpm, it delivers reliable operation in various industrial settings.

6707zz Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its stainless steel cage enhances stability, making it suitable for precision tasks.

Application

Common Applications of 6707zz Bearing
6707zz Bearing is widely used in industrial automation, particularly in compact machinery where space is limited. Its thin section design and shielded construction help keep out contaminants while maintaining smooth operation.

In robotics, 6707zz Bearing is often found in joint mechanisms due to its low-profile design and reliable radial load capacity. The chrome steel construction ensures durability even with frequent movement.

For consumer electronics like printers and small appliances, 6707zz Bearing provides quiet and efficient performance. The ABEC-1 tolerance makes it suitable for applications where moderate precision is needed.

Medical devices such as dental handpieces benefit from 6707zz Bearing’s compact size and consistent operation. The stainless steel cage adds corrosion resistance for environments requiring frequent sterilisation.
