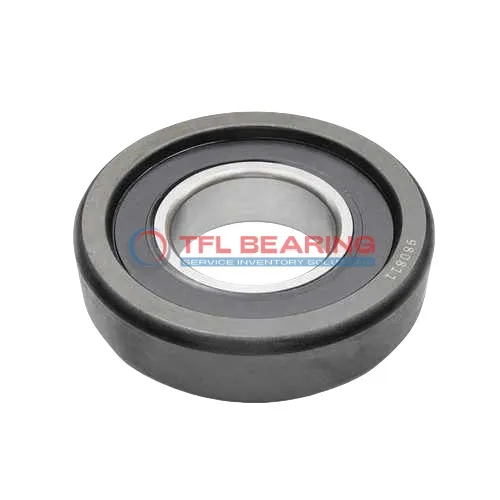

Mast Guide Bearings MG 307 FFN‑10

Mast Guide Bearings MG 307 FFN‑10

The MG 307 FFN‑10 is a mast guide bearing with a 35mm inner diameter and 106mm outer diameter, designed for sturdy performance. Its compact width of 28mm makes it suitable for tight spaces, while the 6mm radius ensures smooth movement.

This bearing handles dynamic loads up to 33,540 N and static loads up to 19,230 N, offering reliable strength for demanding applications. The chrome steel construction provides durability and resistance to wear.

With a weight of 1.3381 kg, it’s lightweight yet robust, ideal for mast guidance systems or industrial machinery. Its design allows for easy installation and maintenance, ensuring long service life.

Perfect for use in construction equipment or lifting mechanisms where precision and reliability are key. The bearing’s dimensions and load capacity make it a versatile choice for various heavy-duty tasks.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 307 FFN‑10
  • Brand TFL & OEM
  • Inner Diameter (d) 35.000 mm
  • Outer Diameter (D) 106.00 mm
  • Inner Ring Width (b) 21 mm
  • Outer Ring Width (B) 28.000 mm
  • Radius (R) 6 mm
  • Dynamic Capacity (Cr.) 33,540 N
  • Static Capacity (Cor.) 19,230 N
  • Weight 1.3381 Kg
Mast Guide Bearings MG 307 FFN‑10 dimension drawing
Download DWG Download PDF

Features

How Is MG 307 FFN‑10 Bearing Engineered for Reliability?

MG 307 FFN‑10 Bearing features a robust design with dimensions of 35.000 mm x 106.00 mm x 28.000 mm, ensuring a precise fit in various applications.
Its dynamic capacity of 33,540 N and static capacity of 19,230 N make it suitable for heavy-duty operations.
The bearing’s 6 mm radius design enhances load distribution, reducing stress on components.
With a weight of 1.3381 kg, it balances strength and practicality for industrial use.

Application

Industrial Uses of MG 307 FFN‑10 Bearing
MG 307 FFN‑10 Bearing is commonly used in construction equipment, particularly in mast guide systems for cranes and lifts. Its robust design handles heavy loads while maintaining smooth movement.

Where Is MG 307 FFN‑10 Bearing Used?
In material handling systems, MG 307 FFN‑10 Bearing ensures reliable performance in conveyor belts and hoists. The high dynamic capacity makes it suitable for continuous operation.

Built for Heavy-Duty Use: MG 307 FFN‑10 Bearing
MG 307 FFN‑10 Bearing excels in agricultural machinery, supporting components like harvesters and tractors. Its durable construction withstands harsh outdoor conditions.

Automotive vs Aerospace: Applications of MG 307 FFN‑10 Bearing
In automotive applications, MG 307 FFN‑10 Bearing is found in steering columns and suspension systems. For aerospace, it’s used in landing gear mechanisms due to its precision.

Perfect Fit for Automation: MG 307 FFN‑10 Bearing
MG 307 FFN‑10 Bearing is ideal for robotic arms and automated assembly lines. The consistent performance ensures accuracy in repetitive tasks.
