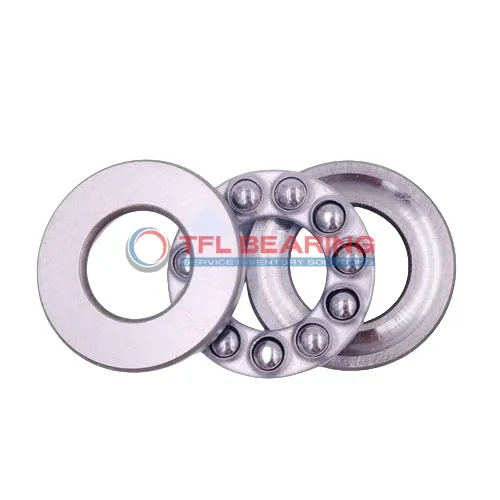

Miniature Thrust Ball Bearings F8-16

Miniature Thrust Ball Bearings F8-16

The F8-16 is a compact thrust ball bearing measuring 8mm by 16mm by 5mm, crafted from sturdy chrome steel for durability. It supports thrust loads up to 562 lbf and operates smoothly at speeds up to 4000 RPM.

Its open design with a brass cage ensures reliable performance, while the flat raceway washers provide stable load distribution. Regular lubrication is needed to maintain optimal function.

This bearing works well in temperatures ranging from -30°C to 110°C, making it suitable for various environments. It’s a practical choice for small machinery or precision instruments where space is limited.

Weighing just 5g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe and reliable option for your needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F8-16
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 16 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Outer Dia Shaft Washer 15.8 mm
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Ball Qty 9
  • Ball Dia 3.000 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Washers Type flat raceway
  • For Load Direction Thrust
  • Inner Ring Type Standard
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Thrust Load 562 lbf
  • Static Thrust Load 675 lbf
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4000 rpm
  • Weight 5 g
  • Price（$） 1.65
Miniature Thrust Ball Bearings F8-16 dimension drawing
Download DWG Download PDF

Features

Why Choose F8-16 Bearing for Precision Tasks?

F8-16 Bearing features a compact design with dimensions of 8 mm×16 mm×5 mm, making it ideal for precision applications.
The chrome steel construction ensures durability and resistance to wear, even under thrust loads up to 562 lbf.

Its brass cage maintains ball alignment, reducing friction and enhancing smooth operation.
With a maximum speed of 4,000 rpm, F8-16 Bearing balances performance and reliability in small-scale machinery.

The open design allows for easy lubrication, ensuring consistent performance across a temperature range of -30° to 110 °C.
This makes F8-16 Bearing a practical choice for various industrial and mechanical uses.

Application

Practical Applications of F8-16 Bearing
F8-16 Bearing works well in small industrial equipment, like precision instruments, where its compact size and thrust load capacity are beneficial. The open design allows for easy lubrication, keeping it running smoothly in tight spaces.

In automotive applications, F8-16 Bearing fits nicely in gear shift mechanisms, providing reliable performance under axial loads. Its brass cage helps reduce friction, making shifts smoother over time.

For medical devices, F8-16 Bearing’s chrome steel construction ensures durability in tools like dental drills. The small dimensions make it ideal for equipment where space is limited but precision is key.

Where Is F8-16 Bearing Used?
You’ll often find F8-16 Bearing in consumer electronics, such as small fans or printers, where its low weight and efficient design matter. The metric sizing ensures compatibility with a variety of compact devices.

In automation, F8-16 Bearing supports lightweight robotic arms, offering steady performance in repetitive motions. The brass cage adds durability without adding unnecessary bulk.
