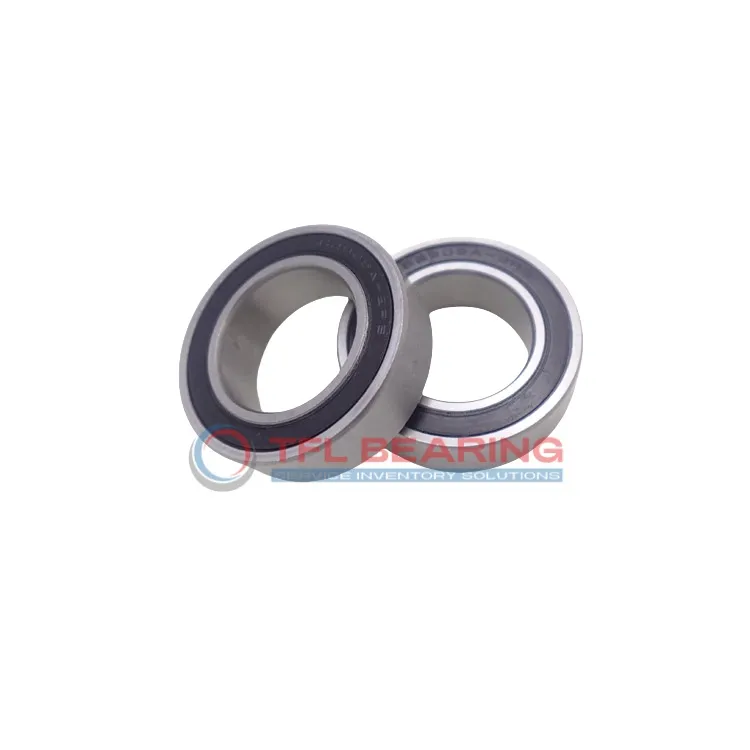

Thin Section Ball Bearings 63802 2rs

Thin Section Ball Bearings 63802 2rs

The 63802 2RS is a compact thin-section ball bearing with a 15mm bore and 24mm outer diameter, measuring just 7mm wide. Made from chrome steel, it’s designed for radial loads up to 466 lbf and can spin at speeds up to 31,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance for long-term use. The stainless steel cage adds durability while keeping the weight light at just 10g.

This bearing operates smoothly in temperatures from -30°C to 110°C. It’s ideal for small spaces like robotics or medical devices where a slim profile is needed.

Compliant with RoHS and REACH standards, it’s a reliable choice for precision applications. The ABEC-1 tolerance ensures consistent performance without being overly sensitive to alignment.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 63802 2rs
  • Brand TFL
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 24 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 7 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.003mm to 0.018mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 466 lbf
  • Static Radial Load 284 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 31000 rpm
  • Weight 10 g
  • Price（$） 2.8
Thin Section Ball Bearings 63802 2rs dimension drawing
Download DWG Download PDF

Features

How Does 63802 2rs Bearing Reduce Friction?

63802 2rs Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its sealed design keeps contaminants out, maintaining consistent performance over time.
The stainless steel cage helps align the balls precisely, reducing wear and enhancing efficiency.
With a maximum speed of 31,000 rpm, it delivers reliable performance in high-speed applications.

Application

Common Applications of 63802 2rs Bearing
The 63802 2rs Bearing is widely used in industrial equipment like conveyor systems, where its compact design and sealed construction help maintain performance in dusty environments. Its chrome steel rings provide durability for continuous operation.

In automotive applications, 63802 2rs Bearing fits well in small electric motors and gear mechanisms, offering reliable radial load support. The sealed design also protects against contaminants, extending service life.

For medical devices, 63802 2rs Bearing’s precision and smooth operation make it suitable for lab equipment and small imaging tools. Its lightweight design ensures minimal interference with delicate mechanisms.

Automation systems benefit from 63802 2rs Bearing in robotic arms and small actuators, where its low friction and high-speed capability enhance efficiency. The stainless steel cage adds corrosion resistance for long-term use.

In consumer electronics, 63802 2rs Bearing is often found in printers and small fans, providing quiet and consistent performance. Its metric sizing ensures compatibility with a variety of compact devices.
