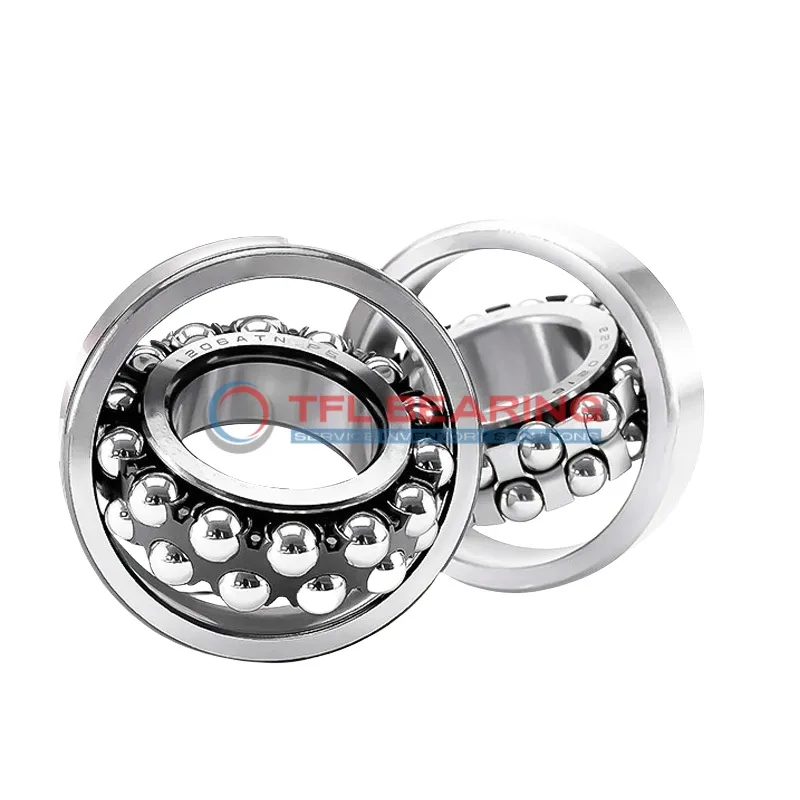

Self Aligning Ball Bearings 1220-K C/3

Brand: TFL Bearing Interchangeable: SKF 1220-K C/3 100 mm × 180 mm × 34 mm Metric Open
Part number: 1220-K C/3
Self Aligning Ball Bearings 1220-K C/3
In Stock
US$217.58 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia100 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia180 mm
Outer Dia Tolerance-0.025mm to 0
Width34 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring127 mm
Internal Diameter On Outer Ring155.8 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load15,502 lbf
Static Radial Load6,750 lbf
Temperature Range-30° to 110 °C
Max Speed4,800 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight3.7 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialStainless Steel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1220-K C/3 is a self-aligning ball bearing with a 100mm tapered bore and 180mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 15502 lbf and runs smoothly at speeds up to 4800 RPM.

Its double-row design helps compensate for misalignment, while the open seal allows for easy lubrication. The stainless steel cage adds durability, making it a long-lasting choice.

This bearing is interchangeable with SKF models, ideal for replacements in heavy machinery or industrial equipment. It performs well in temperatures from -30°C to 110°C.

Weighing 3.7kg, it’s a robust option for applications requiring radial load support and alignment flexibility. Compliant with RoHS and REACH standards for safe use.

Features

Why Choose 1220-K C/3 Bearing for Precision Tasks?

1220-K C/3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 15502 lbf makes it suitable for demanding industrial applications.

The tapered bore design allows for precise alignment, reducing stress and wear during operation.
With a maximum speed of 4,800 rpm, it balances performance and durability.

Stainless steel cage maintains ball alignment, enhancing smooth rotation and longevity.
Its open construction simplifies lubrication, ensuring consistent performance over time.

Application

Industrial Uses of 1220-K C/3 Bearing
1220-K C/3 Bearing is commonly used in heavy machinery, such as conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures stable performance under radial loads, making it suitable for continuous operation.

Where Is 1220-K C/3 Bearing Used?
In automotive applications, 1220-K C/3 Bearing can be found in gearboxes and drivetrains, where its tapered bore provides a secure fit. The chrome steel construction offers durability, even under high-speed conditions.

Built for Heavy-Duty Use: 1220-K C/3 Bearing
1220-K C/3 Bearing excels in construction equipment, such as cranes and excavators, thanks to its high dynamic radial load capacity. The open seal design allows for easy lubrication, extending its service life in demanding environments.

Automotive vs Aerospace: Applications of 1220-K C/3 Bearing
While 1220-K C/3 Bearing is popular in automotive transmissions, it also finds use in aerospace auxiliary systems due to its reliability. The metric sizing ensures compatibility with a wide range of international machinery standards.

Key Fields for 1220-K C/3 Bearing
In robotics, 1220-K C/3 Bearing supports joint movements, where its self-aligning capability reduces wear. The stainless steel cage adds corrosion resistance, making it ideal for humid or washdown environments.
