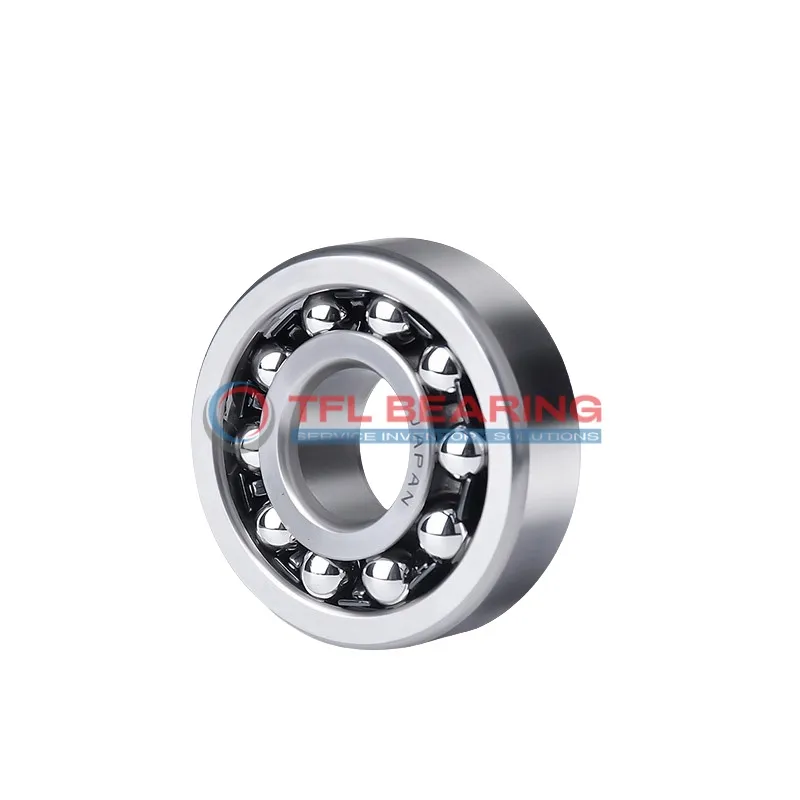

Self Aligning Ball Bearings 1212KJ

Brand: TFL Bearing Interchangeable: SKF 1212KJ 60 mm × 110 mm × 22 mm Metric Open
Part number: 1212KJ
Self Aligning Ball Bearings 1212KJ
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia60 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia110 mm
Outer Dia Tolerance-0.015mm to 0
Width22 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring78 mm
Internal Diameter On Outer Ring95.6 mm
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load7,020 lbf
Static Radial Load2,745 lbf
Temperature Range-30° to 110 °C
Max Speed8,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight0.9 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1212KJ is a self-aligning ball bearing with a 60mm tapered bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7020 lbf and operates smoothly at speeds reaching 8000 RPM.

Its double-row design and open seal allow for easy lubrication and alignment adjustments, while the steel cage enhances durability. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery with misalignment issues, such as conveyor systems or agricultural equipment.

Weighing 0.9kg, it’s a robust choice for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

How Does 1212KJ Bearing Reduce Friction?

1212KJ Bearing features a double-row design with chrome steel balls, ensuring smooth radial load distribution.
The tapered bore enhances alignment, reducing friction and improving operational efficiency.

Its dynamic radial load capacity of 7020 lbf makes it suitable for various industrial applications.
The steel cage maintains ball alignment, minimising wear and extending the bearing’s service life.

With a maximum speed of 8,000 rpm, 1212KJ Bearing offers reliable performance in demanding conditions.
The chrome steel construction ensures durability and resistance to wear in diverse environments.

Application

Industrial Uses of 1212KJ Bearing
1212KJ Bearing is commonly used in conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance under radial loads, making it suitable for heavy machinery.

Where Is 1212KJ Bearing Used?
You’ll often find 1212KJ Bearing in agricultural equipment like grain conveyors, where its tapered bore ensures a secure fit. Its chrome steel construction also makes it durable enough for harsh outdoor conditions.

Built for Heavy-Duty Use: 1212KJ Bearing
1212KJ Bearing handles radial loads effortlessly in applications like paper mill rollers. The open seal design allows for easy re-lubrication, extending its service life in demanding environments.

Automotive vs Aerospace: Applications of 1212KJ Bearing
In automotive systems, 1212KJ Bearing supports components like drivetrains, while in aerospace, it’s used in auxiliary equipment. Its metric sizing ensures compatibility with a wide range of machinery.

Perfect Fit for Automation: 1212KJ Bearing
1212KJ Bearing works well in robotic arms and automated assembly lines, where its self-aligning capability reduces wear. The steel cage adds stability during high-speed operations.
