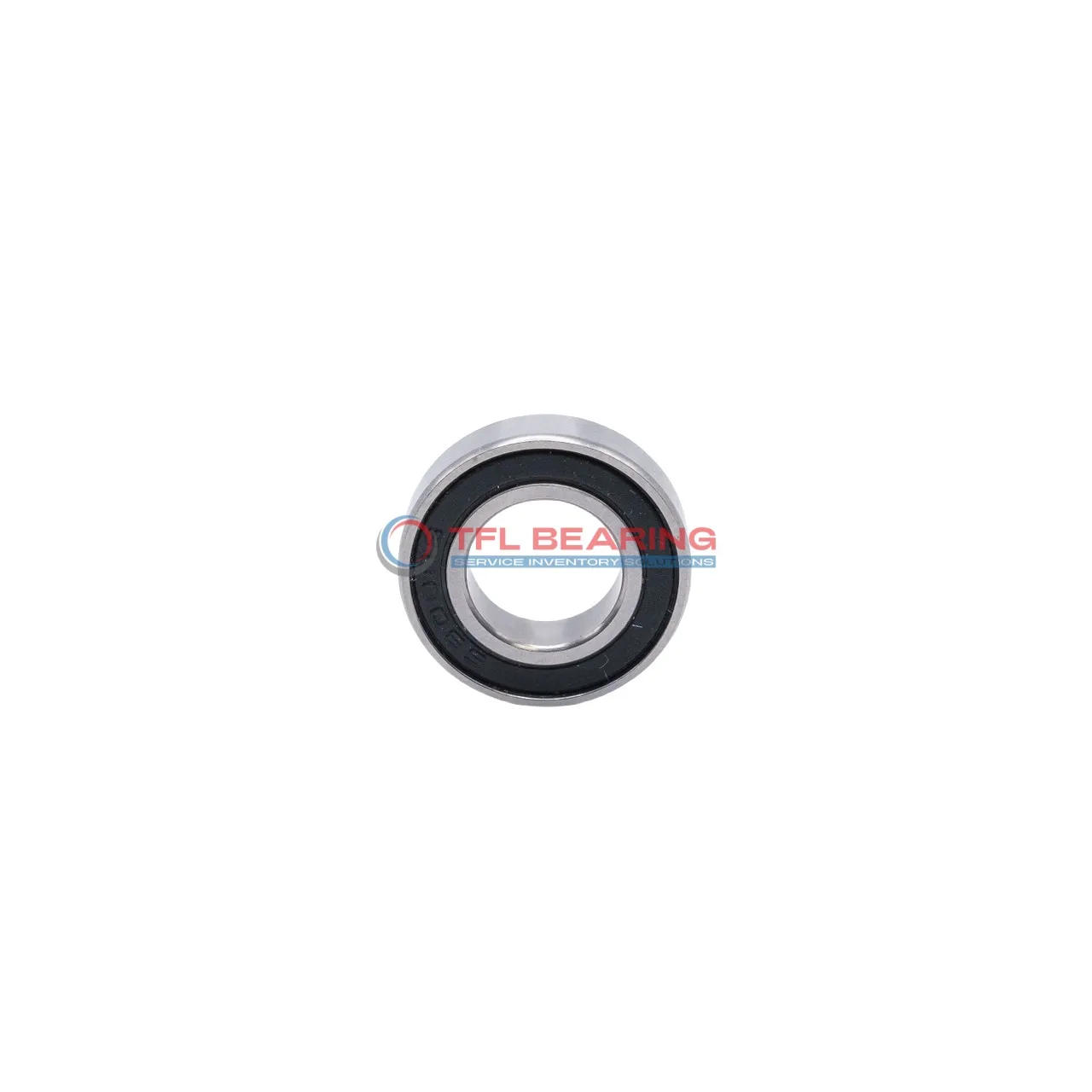

Thin Section Ball Bearings 63804 2rs

Thin Section Ball Bearings 63804 2rs

The 63804 2RS is a compact thin-section ball bearing, measuring 20mm by 32mm by 10mm, crafted from sturdy chrome steel for lasting performance. Its sealed design keeps dirt out and lubrication in, making it low-maintenance.

This bearing handles radial loads up to 904 lbf and spins smoothly at speeds up to 25,000 RPM, suitable for fast-moving applications. The stainless steel cage adds durability while keeping noise levels low.

With a temperature range of -30°C to 110°C, it works well in varied environments. The ABEC-1 tolerance ensures reliable precision for everyday industrial use.

Ideal for small machinery, robotics, or medical devices where space is tight but performance matters. Compliant with RoHS and REACH standards, it’s a safe and practical choice. Weighing just 24g, it’s lightweight yet robust.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 63804 2rs
  • Brand TFL
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.006mm to 0.020mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 904 lbf
  • Static Radial Load 554 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 25000 rpm
  • Weight 24 g
  • Price（$） 2.2
Thin Section Ball Bearings 63804 2rs dimension drawing
Download DWG Download PDF

Features

How Does 63804 2rs Bearing Reduce Friction?

63804 2rs Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its sealed design keeps contaminants out, maintaining consistent performance over time.
The stainless steel cage helps align the balls precisely, reducing wear and noise.
With a maximum speed of 25,000 rpm, it delivers efficient performance in compact applications.

Built for Reliability: 63804 2rs Bearing

63804 2rs Bearing is designed for radial loads, handling dynamic loads up to 904 lbf.
Its ABEC-1 tolerance ensures consistent performance in precision applications.
The sealed construction protects against dust and moisture, enhancing durability.
Operating between -30°C to 110°C, it suits a wide range of industrial environments.

Performance Features of 63804 2rs Bearing

63804 2rs Bearing’s compact size (20 mm×32 mm×10 mm) makes it ideal for space-constrained applications.
The chrome steel construction provides excellent resistance to wear and corrosion.
With a radial clearance of 0.006mm to 0.020mm, it ensures smooth and precise rotation.
Its lightweight design (24 g) reduces overall system weight without compromising strength.

Application

Common Applications of 63804 2rs Bearing
The 63804 2rs Bearing is widely used in industrial automation, particularly in robotic arms and conveyor systems, where its compact design and sealed construction help reduce maintenance needs. Its chrome steel rings and stainless steel cage ensure durability in continuous operation.

In automotive applications, 63804 2rs Bearing fits well in electric motors and small gearboxes, providing smooth radial load support. The sealed design also protects against dust and moisture, extending its lifespan in challenging conditions.

For consumer electronics like printers and small fans, 63804 2rs Bearing offers reliable performance with minimal noise. Its lightweight design and high-speed capability make it a practical choice for compact devices.

Medical devices such as lab equipment benefit from 63804 2rs Bearing’s precision and consistent performance. The sealed construction helps maintain cleanliness, which is essential in sensitive environments.
