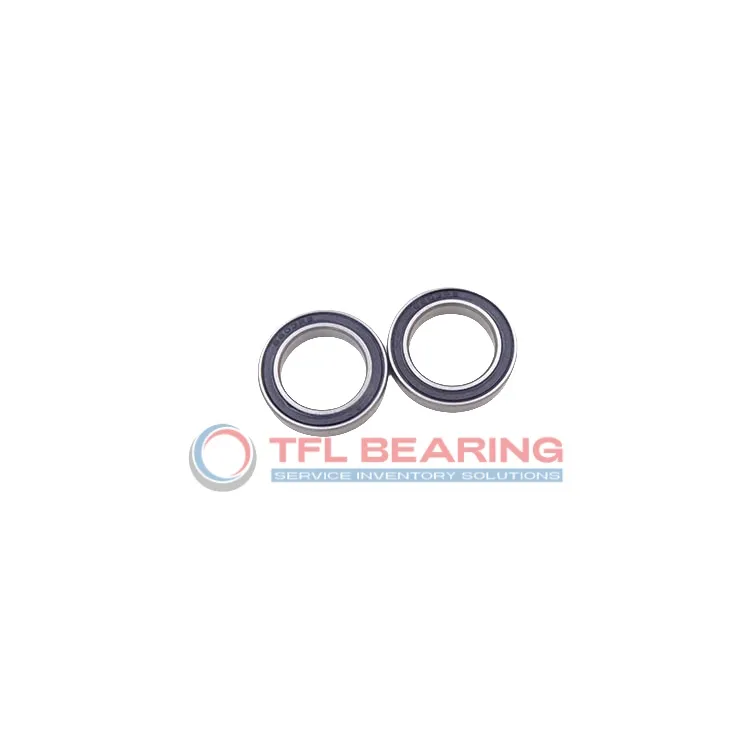

Thin Section Ball Bearings S6802 2rs

Brand: TFL Bearing 15 mm × 24 mm × 5 mm Metric Sealed
Part number: S6802 2rs
Thin Section Ball Bearings S6802 2rs
In Stock
US$1.30 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia15 mm
Bore Dia Tolerance-0.008mm to 0
Outer Dia24 mm
Outer Dia Tolerance-0.009mm to 0
Width5 mm
Width Tolerance-0.120mm to 0
Performance
Dynamic Radial Load419 lbf
Static Radial Load255 lbf
Temperature Range-86 to 230 °F
Max Speed23,400 rpm
Characteristics
Radial Clearance0.003mm to 0.018mm
System of MeasurementMetric
Bearing TypeBall
For Load DirectionRadial
ConstructionSingle Row
Seal TypeSealed
Tolerance ClassABEC-1
Radial Clearance Trade NoC0
LubricationRequired
Weight7.6 g
Material
Ring MaterialStainless Steel
Ball MaterialStainless Steel
Cage MaterialStainless Steel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The S6802 2RS is a compact thin-section ball bearing, measuring 15mm by 24mm by 5mm, crafted entirely from stainless steel for durability. It handles radial loads up to 419 lbf and spins smoothly at speeds up to 23,400 RPM.

Its sealed design keeps out dust and moisture, making maintenance hassle-free. The bearing operates in temperatures from -86°F to 230°F, suitable for varied environments.

With a lightweight build at just 7.6g, it’s easy to handle and install. Ideal for small machinery or precision instruments where space is limited but performance is key.

Compliant with RoHS and REACH standards, it’s a safe choice for eco-conscious applications. The ABEC-1 tolerance ensures reliable performance without over-engineering.

Features

Performance Features of S6802 2rs Bearing

S6802 2rs Bearing is designed with stainless steel rings and balls, offering excellent resistance to corrosion.
Its compact size of 15 mm×24 mm×5 mm makes it ideal for applications where space is limited.

The sealed construction of S6802 2rs Bearing helps keep contaminants out, ensuring smooth operation.
With a dynamic radial load capacity of 419 lbf, it handles moderate loads efficiently.

S6802 2rs Bearing operates at high speeds up to 23,400 rpm, making it suitable for precision tasks.
The stainless steel cage maintains ball alignment, reducing wear and extending the bearing’s life.

Its temperature range of -86 to 230 °F allows S6802 2rs Bearing to perform in various environments.
The ABEC-1 tolerance ensures reliable performance without requiring high precision.

Application

Industrial Uses of S6802 2rs Bearing
S6802 2rs Bearing is commonly used in compact industrial equipment like small motors and precision gearboxes, where its thin section design saves space without compromising performance. The sealed construction helps keep contaminants out, extending its lifespan in dusty environments.

What Makes S6802 2rs Bearing a Preferred Choice?
In robotics, S6802 2rs Bearing is ideal for joint mechanisms due to its lightweight stainless steel build and smooth radial load handling. Its ABEC-1 tolerance ensures reliable movement in automated assembly lines.

Perfect Fit for Automation: S6802 2rs Bearing
For 3D printers, S6802 2rs Bearing provides quiet operation and low friction, essential for precise print head movements. The wide temperature range also makes it suitable for varied workshop conditions.

Medical vs Industrial: Where S6802 2rs Bearing Excels
In medical devices like dental tools, S6802 2rs Bearing offers hygienic stainless steel surfaces and consistent performance. Meanwhile, in food processing equipment, its sealed design prevents lubrication contamination.

Light-Duty vs Heavy-Duty: Best Uses for S6802 2rs Bearing
While S6802 2rs Bearing excels in light-duty applications like optical instruments, its robust construction also handles moderate loads in small conveyor systems. The C0 clearance balances precision with durability.
