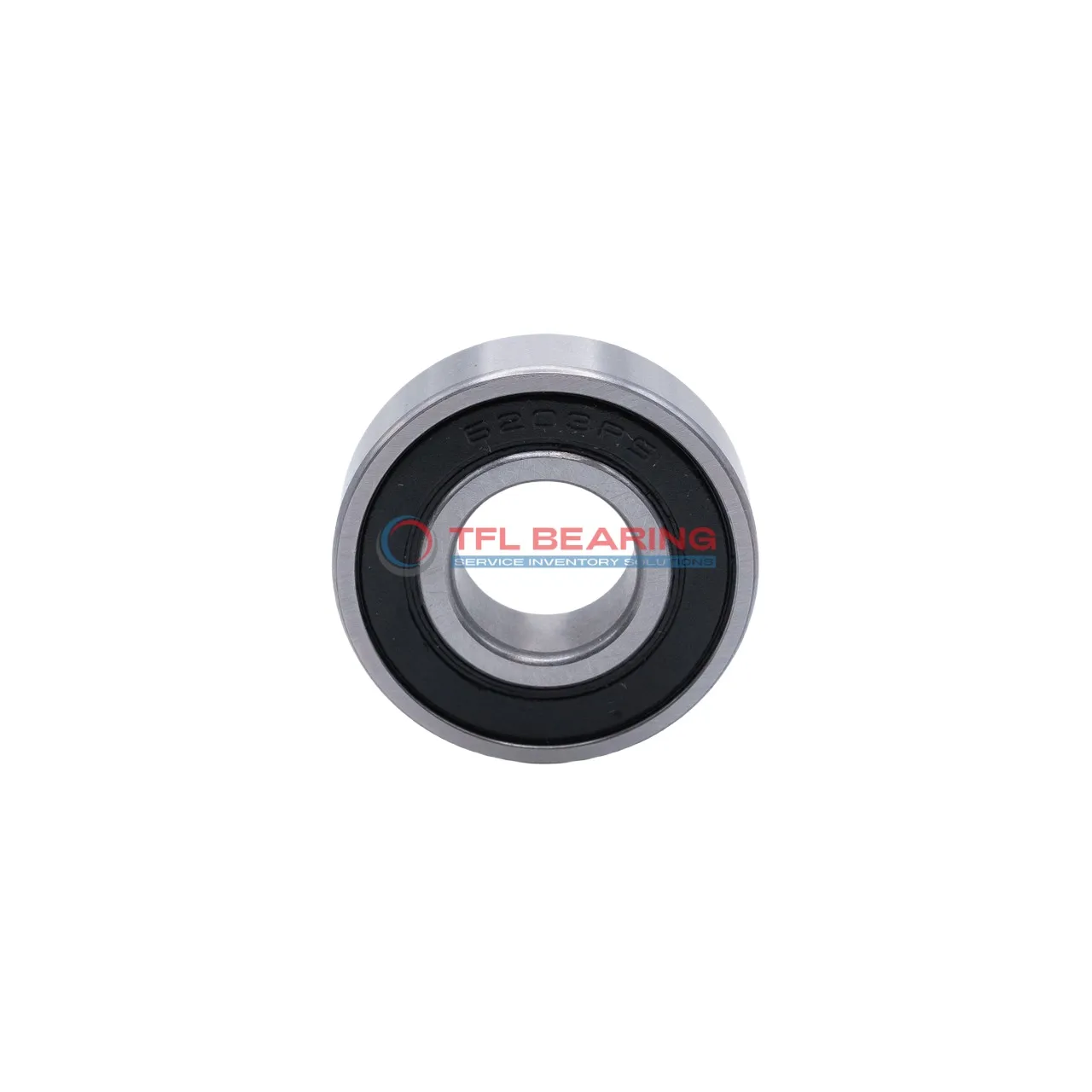

Stainless Steel Deep Groove Ball Bearings W 6202-2RS1/R799

Stainless Steel Deep Groove Ball Bearings W 6202-2RS1/R799

The W 6202-2RS1/R799 is a compact stainless steel deep groove ball bearing, measuring 15mm by 35mm by 11mm. Its sealed design keeps dirt out and grease in, making it low-maintenance.

This bearing handles radial loads up to 1432 lbf and can spin at speeds up to 30,000 RPM. The stainless steel construction resists corrosion, ideal for damp or harsh environments.

With a chrome steel cage, it offers smooth operation and long service life. The ABEC 1 tolerance ensures reliable performance for most general applications.

Suitable for small machinery, electric motors, or food processing equipment where hygiene matters. Weighing just 41 grams, it’s lightweight yet durable for its size.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6202-2RS1/R799
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 11 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 1432 lbf
  • Static Radial Load 809 lbf
  • Temperature Range -30°to 120 °C
  • REACH Compliant
  • Max Speed 30000 rpm
  • Weight 0.041 kg
  • Price（$） 10.79
Stainless Steel Deep Groove Ball Bearings W 6202-2RS1/R799 dimension drawing
Download DWG Download PDF

Features

How Does W 6202-2RS1/R799 Bearing Reduce Friction?

W 6202-2RS1/R799 Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its sealed design keeps contaminants out, maintaining performance in various environments.
The dynamic radial load capacity of 1432 lbf allows it to handle demanding applications effortlessly.
With a maximum speed of 30,000 rpm, it offers both durability and efficiency.

Application

Common Applications of W 6202-2RS1/R799 Bearing
W 6202-2RS1/R799 Bearing is widely used in industrial equipment like conveyor systems and small electric motors, where its sealed design helps keep out dust and debris.
The stainless steel construction makes it suitable for environments where corrosion resistance is important, such as food processing or marine applications.

How Does W 6202-2RS1/R799 Bearing Improve Performance?
In automotive applications, W 6202-2RS1/R799 Bearing provides smooth rotation for components like alternators and water pumps.
Its ABEC 1 tolerance ensures reliable performance while maintaining cost-effectiveness for mass-produced vehicles.

Built for Versatility: W 6202-2RS1/R799 Bearing
This bearing works well in household appliances like washing machines, where its durability handles both radial loads and moderate speeds.
The 35mm outer diameter makes it compatible with many standard appliance designs across different brands.

Medical vs Industrial: Where W 6202-2RS1/R799 Bearing Excels
In medical devices, W 6202-2RS1/R799 Bearing offers quiet operation for equipment like dental handpieces.
For industrial uses, its higher speed rating makes it practical for small power tools and packaging machinery.

Practical Applications of W 6202-2RS1/R799 Bearing
The bearing’s compact 15mm bore size fits well in space-constrained applications like computer cooling fans.
Its temperature range allows operation in both indoor and outdoor equipment without performance concerns.
