Stainless Steel Deep Groove Ball Bearings W 61907-2RS1

Stainless Steel Deep Groove Ball Bearings W 61907-2RS1

The W 61907-2RS1 is a stainless steel deep groove ball bearing with a 35mm bore and 55mm outer diameter, designed for radial loads. It handles dynamic loads up to 2104 lbf and spins smoothly at speeds up to 7500 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance and durable. The all-stainless construction ensures corrosion resistance, ideal for harsh environments.

This bearing is interchangeable with SKF models, offering a reliable replacement option. It works well in temperatures from -30°C to 120°C, suitable for food processing or marine applications.

Weighing just 0.073kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61907-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 10 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 2104 lbf
  • Static Radial Load 1720 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7500 rpm
  • Weight 0.073 kg
  • Price（$） 32.7

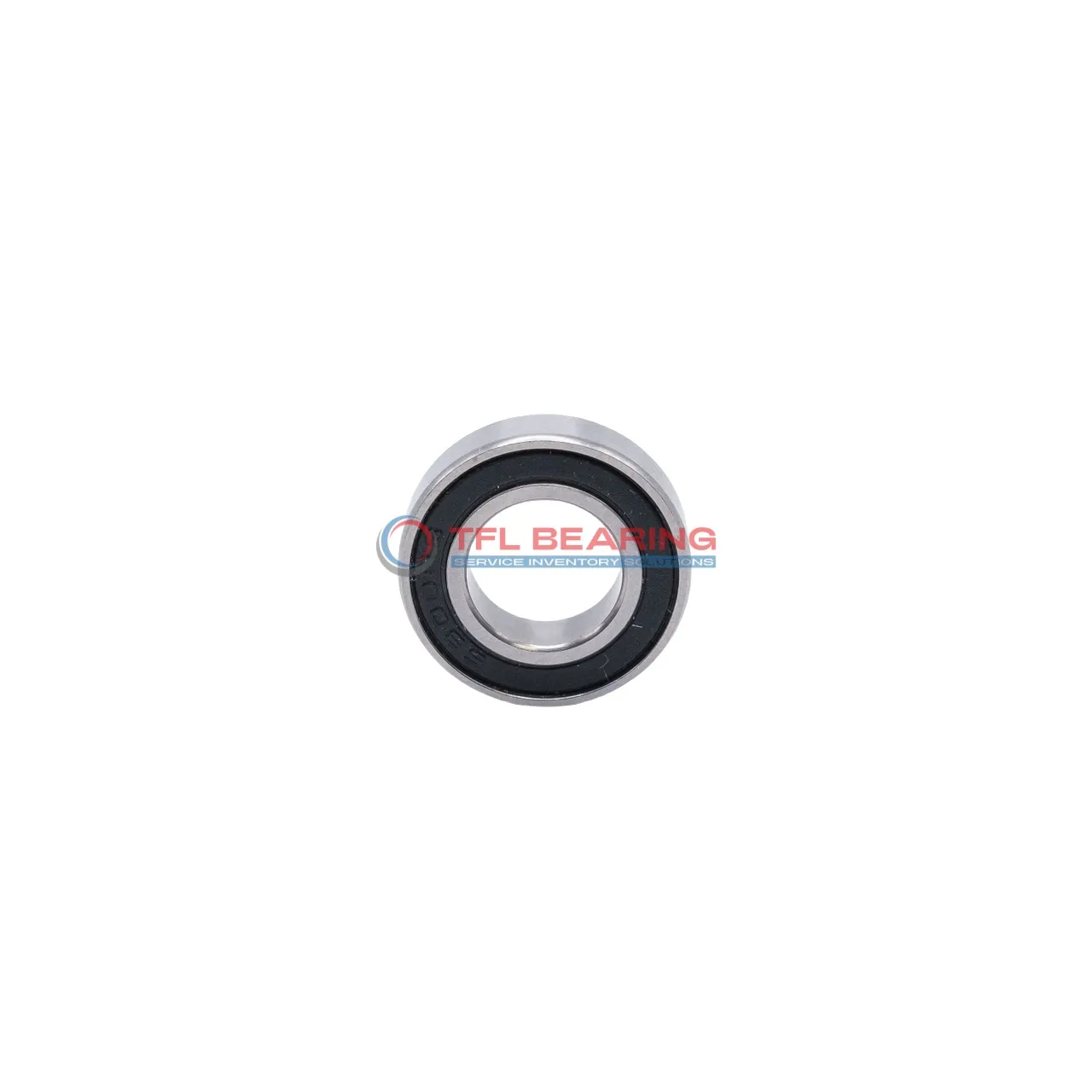

Stainless Steel Deep Groove Ball Bearings W 61907-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does W 61907-2RS1 Bearing Reduce Friction?

W 61907-2RS1 Bearing features stainless steel construction, ensuring smooth operation with minimal friction.
Its sealed design retains grease, providing consistent lubrication for reduced wear.
The single-row deep groove design enhances radial load capacity, supporting up to 2104 lbf.
With a maximum speed of 7,500 rpm, it delivers reliable performance in various applications.

Why Choose W 61907-2RS1 Bearing for Precision Tasks?

W 61907-2RS1 Bearing is built with precision-ground stainless steel components for accurate performance.
The sealed design protects against contaminants, maintaining smooth operation over time.
Its CN radial clearance ensures optimal fit and function in precision instruments.
The bearing operates efficiently within a temperature range of -30° to 120°C.

Designed for Durability: W 61907-2RS1 Bearing

W 61907-2RS1 Bearing’s all-stainless steel construction resists corrosion and extends service life.
The sealed design prevents grease leakage and keeps out dirt, reducing maintenance needs.
It handles dynamic radial loads up to 2104 lbf, making it suitable for demanding applications.
With a P0 tolerance class, it ensures consistent performance in various conditions.

Steel vs Ceramic Bearings: Strengths of W 61907-2RS1 Bearing

W 61907-2RS1 Bearing’s stainless steel construction offers excellent corrosion resistance and durability.
The sealed design provides reliable protection against moisture and contaminants.
Its deep groove design supports high radial loads, up to 2104 lbf, with smooth operation.
The bearing is pre-lubricated with grease, ensuring long-lasting performance.

Application

Common Applications of W 61907-2RS1 Bearing
W 61907-2RS1 Bearing is widely used in industrial equipment like pumps and compressors, where its sealed design keeps contaminants out. The stainless steel construction ensures long-lasting performance even in wet or corrosive environments.

In automotive applications, W 61907-2RS1 Bearing fits well in electric motors and alternators, providing smooth rotation under radial loads. Its compact size makes it ideal for space-constrained installations.

For home appliances, W 61907-2RS1 Bearing works efficiently in washing machines and fans, thanks to its low-maintenance sealed design. The grease lubrication ensures quiet operation, perfect for household use.

Medical devices like dental drills benefit from W 61907-2RS1 Bearing’s precision and reliability. The stainless steel materials meet hygiene standards while handling high-speed rotations.

Automation systems often rely on W 61907-2RS1 Bearing for robotic arms and conveyor belts. Its consistent performance and durability make it a trusted choice in automated production lines.
