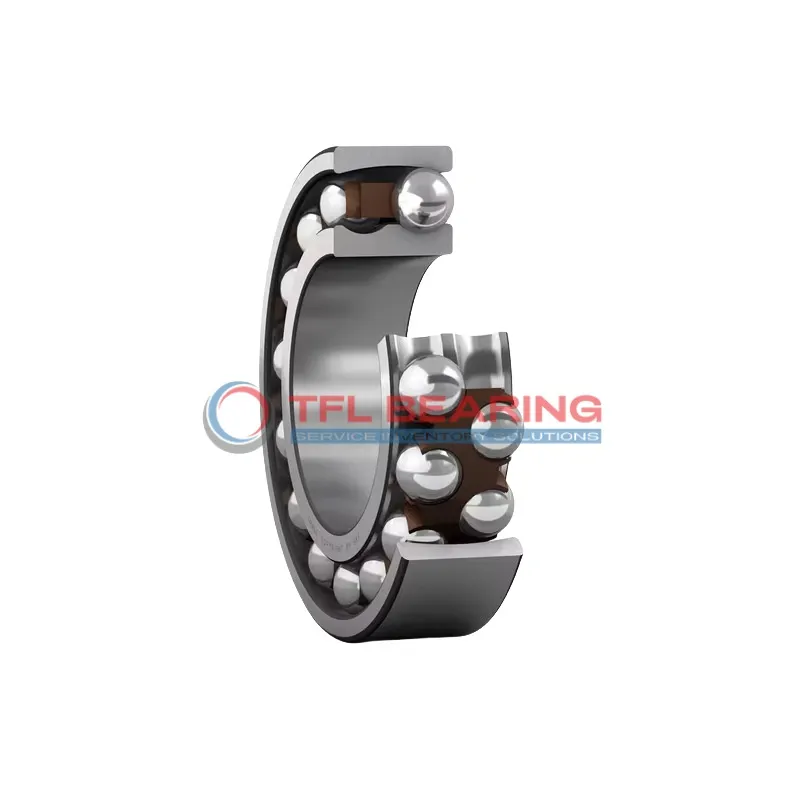

Self Aligning Ball Bearings 2311KTN

Brand: TFL Bearing Interchangeable: SKF 2311KTN 55 mm × 120 mm × 43 mm Metric Open
Part number: 2311KTN
Self Aligning Ball Bearings 2311KTN
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia55 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia120 mm
Outer Dia Tolerance-0.015mm to 0
Width43 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring72 mm
Internal Diameter On Outer Ring101 mm
Chamfer Dimension2 mm
Performance
Dynamic Radial Load17,122 lbf
Static Radial Load5,400 lbf
Temperature Range-30° to 110 °C
Max Speed7,500 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight2.1 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2311KTN is a self-aligning ball bearing with a 55mm tapered bore and 120mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 17122 lbf and operates smoothly at speeds reaching 7500 RPM.

Its double-row design and open seal type allow for easy lubrication and maintenance, while the nylon cage reduces friction for quieter performance. The bearing functions reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 2.1kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

Performance Features of 2311KTN Bearing

2311KTN Bearing is designed with a double-row ball construction, offering excellent radial load capacity up to 17122 lbf.
Its chrome steel rings and balls ensure durability and resistance to wear in various applications.

The nylon cage helps maintain ball alignment, reducing friction and noise during operation.
With a maximum speed of 7,500 rpm, it delivers reliable performance in demanding conditions.

2311KTN Bearing operates smoothly within a temperature range of -30° to 110°C.
Its tapered bore design simplifies installation and ensures a secure fit.

The open seal type allows for easy lubrication, enhancing the bearing’s longevity.
Weighing just 2.1 kg, it balances strength and practicality for industrial use.

Application

Industrial Uses of 2311KTN Bearing
2311KTN Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments.
The double-row design provides excellent radial load capacity, making it suitable for applications with high stress and continuous operation.

Where Is 2311KTN Bearing Used?
You’ll often find 2311KTN Bearing in automotive components such as gearboxes and wheel hubs, thanks to its tapered bore for secure fitting.
Its nylon cage reduces friction, ensuring smoother performance in high-speed scenarios.

Built for Heavy-Duty Use: 2311KTN Bearing
2311KTN Bearing excels in construction equipment like cranes and excavators, where durability and load handling are critical.
The chrome steel construction offers long-lasting performance even in harsh environments.

Automotive vs Industrial: Applications of 2311KTN Bearing
In automotive settings, 2311KTN Bearing supports drivetrain components, while in industrial plants, it handles heavy radial loads in pumps and compressors.
Its versatility makes it a reliable choice across different sectors.

Key Fields for 2311KTN Bearing
2311KTN Bearing is ideal for agricultural machinery, where dust and misalignment are common challenges.
The self-aligning capability ensures consistent performance despite rough operating conditions.
