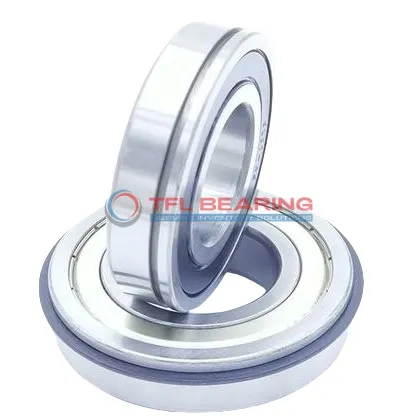

Snap Ring Groove Ball Bearings 6209-ZN

Snap Ring Groove Ball Bearings 6209-ZN

The 6209-ZN is a shielded snap ring groove ball bearing with a 45mm bore and 85mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 7351 lbf and operates smoothly at speeds up to 7700 RPM.

Its single-row design with a snap ring groove ensures secure fitting, while the shielded seals protect against dust and debris. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 407g, it offers a sturdy build for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6209-ZN
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 85 mm
  • Width Of Snap Ring 1.9 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring Groove
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 7351 lbf
  • Static Radial Load 4564 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 7700 rpm
  • Weight 407 g
  • Price（$） 11.97
Snap Ring Groove Ball Bearings 6209-ZN dimension drawing
Download DWG Download PDF

Features

How Does 6209-ZN Bearing Reduce Friction?

6209-ZN Bearing features chrome steel rings and balls, designed to minimise friction during operation.
Its shielded design helps keep contaminants out, ensuring smoother performance over time.
With a dynamic radial load capacity of 7351 lbf, it handles heavy loads efficiently.
The snap ring groove adds stability, making it suitable for high-speed applications up to 7,700 rpm.

Application

Industrial Uses of 6209-ZN Bearing
6209-ZN Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design protects against dust and debris. The snap ring groove ensures secure mounting, making it ideal for high-vibration environments.

In automotive applications, 6209-ZN Bearing fits well in wheel hubs and transmissions, offering reliable radial load support. Its chrome steel construction provides durability under constant use, while the ABEC 1 tolerance ensures smooth operation.

For automation systems, 6209-ZN Bearing works efficiently in robotic arms and conveyor belts, thanks to its balanced performance. The shielded seals help maintain lubrication, reducing maintenance needs in continuous operations.

Where Is 6209-ZN Bearing Used?
You’ll often find 6209-ZN Bearing in household appliances like washing machines, where its radial load capacity handles spinning drums effortlessly. The snap ring groove simplifies installation, saving time during assembly.

In light industrial equipment, 6209-ZN Bearing supports gearboxes and small machinery, combining durability with easy maintenance. Its temperature range of -30°C to 120°C makes it adaptable to various working conditions.
