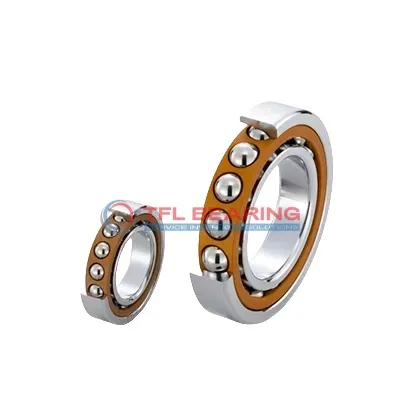

Single Row Angular Contact Ball Bearings (General) 7317 BEP

Single Row Angular Contact Ball Bearings (General) 7317 BEP

The 7317 BEP is a single-row angular contact ball bearing with an 85mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 32850 lbf and operates smoothly at speeds up to 4300 RPM.

Its 40° contact angle efficiently manages combined loads, while the nylon cage reduces friction for quieter performance. The open design allows easy lubrication, extending its lifespan in demanding conditions.

This bearing suits applications like pumps or gearboxes where angular contact is needed. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 4.45kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it works in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7317 BEP
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 41 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 122.3 mm
  • External Diameter On Inner Ring (Small Side Face) 103.03 mm
  • Internal Diameter On Outer Ring 144.95 mm
  • Chamfer Dimension 3 mm
  • Distance Pressure Point (a) 76 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 32850 lbf
  • Static Radial Load 27450 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 4300 rpm
  • Weight 4.45 kg
  • Price（$） 100.59
Single Row Angular Contact Ball Bearings (General) 7317 BEP dimension drawing
Download DWG Download PDF

Features

Performance Features of 7317 BEP Bearing

7317 BEP Bearing is designed with a 40° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls enhance durability, supporting dynamic radial loads up to 32,850 lbf.

The nylon cage in 7317 BEP Bearing ensures smooth operation while reducing friction and noise.
With a maximum speed of 4,300 rpm, it maintains reliable performance under demanding conditions.

7317 BEP Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design allows for easy lubrication, ensuring long service life with minimal maintenance.

Application

Industrial Uses of 7317 BEP Bearing
7317 BEP Bearing is commonly used in industrial machinery like pumps and compressors, where its angular contact design handles combined loads effectively. The open seal type allows for easy lubrication, extending service life in demanding conditions.

What Makes 7317 BEP Bearing a Preferred Choice?
In automotive applications, 7317 BEP Bearing supports wheel hubs and transmissions, thanks to its high dynamic radial load capacity. The nylon cage reduces friction, ensuring smoother operation at moderate speeds.

Perfect Fit for Automation: 7317 BEP Bearing
For robotics and automated systems, 7317 BEP Bearing offers precise motion control due to its P6 tolerance class. The 40° contact angle provides stability in high-precision tasks like CNC machining.

Medical vs Industrial: Where 7317 BEP Bearing Excels
In medical imaging devices, 7317 BEP Bearing’s chrome steel construction ensures reliable performance under consistent loads. Meanwhile, its robust design also suits heavy industrial gearboxes where durability is key.

Light-Duty vs Heavy-Duty: Best Uses for 7317 BEP Bearing
While 7317 BEP Bearing performs well in light-duty applications like conveyor systems, it truly shines in heavy-duty scenarios such as mining equipment. The wide temperature range makes it adaptable to various environments.
