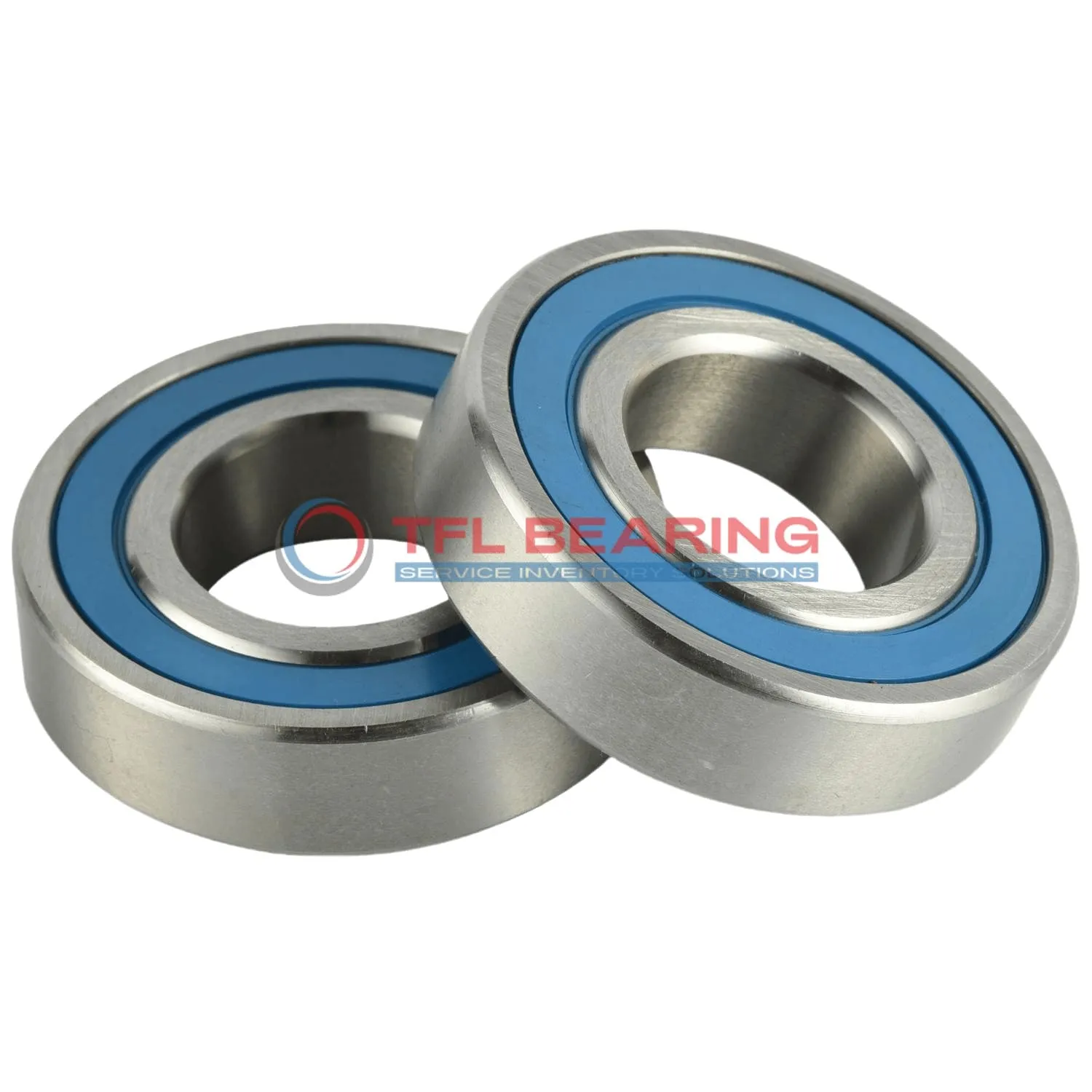

Single Row Deep Groove Ball Bearings 6306-2RS1/C3

Single Row Deep Groove Ball Bearings 6306-2RS1/C3

The 6306-2RS1/C3 is a single-row deep groove ball bearing with a 30mm bore and 72mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 6002 lbf and operates smoothly at speeds up to 9600 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The C3 radial clearance allows for slight thermal expansion, ideal for varying temperatures.

This bearing works well in temperatures from -30°C to 120°C and is interchangeable with SKF models. Perfect for electric motors, pumps, or gearboxes where reliability is key.

Weighing 346g, it’s sturdy yet lightweight. Compliant with RoHS and REACH standards for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6306-2RS1/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6002 lbf
  • Static Radial Load 3372 lbf
  • Max Speed 9600 rpm
  • Weight 346 g
  • price（$） 10.098
Single Row Deep Groove Ball Bearings 6306-2RS1/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6306-2RS1/C3 Bearing

6306-2RS1/C3 Bearing is built with chrome steel rings and balls, offering strong radial load support.
Its sealed design protects against dust and moisture, ensuring smooth operation in various environments.

With a dynamic radial load capacity of 6002 lbf, it performs reliably under demanding conditions.
The C3 radial clearance allows for thermal expansion, making it suitable for high-speed applications.

6306-2RS1/C3 Bearing operates within a temperature range of -30°C to 120°C, providing versatility.
Its chrome steel cage enhances durability, reducing wear and extending service life.

The sealed construction minimises maintenance needs, lowering long-term operational costs.
Weighing just 346 g, it balances strength and lightweight design for efficient performance.

Application

Key Fields for 6306-2RS1/C3 Bearing
6306-2RS1/C3 Bearing is widely used in industrial equipment like conveyor belts and pumps, where its sealed design helps keep out dust and debris. The C3 clearance ensures reliable performance even under varying temperatures.

In automotive applications, 6306-2RS1/C3 Bearing fits well in electric motors and alternators, providing smooth rotation with minimal maintenance. Its chrome steel construction offers good resistance to wear over time.

For home appliances such as washing machines, 6306-2RS1/C3 Bearing’s durability makes it a dependable choice. The sealed feature also helps protect against moisture and detergent exposure.

Automation systems benefit from 6306-2RS1/C3 Bearing’s ability to handle moderate radial loads efficiently. Its consistent performance supports precision in robotic arms and assembly lines.
