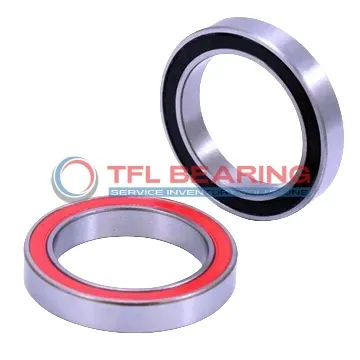

Super Precision Angular Contact Ball Bearings S7022 ACD/P4ATBTC

Super Precision Angular Contact Ball Bearings S7022 ACD/P4ATBTC

The S7022 ACD/P4ATBTC is a super precision angular contact ball bearing with a 110mm bore and 170mm outer diameter, measuring 84mm in width. Made from chrome steel, it’s designed for angular contact loads and comes in a matched set of three bearings.

With a 25° contact angle and sealed design, it handles radial loads up to 50625 lbf and spins smoothly at speeds up to 16000 RPM. The phenolic cage ensures durability, while the grease lubrication simplifies maintenance.

Its moderate preload (Class C) and P4A tolerance class make it ideal for high-precision applications like machine tool spindles or robotics. The bearing operates reliably in temperatures from -30°C to 110°C.

Weighing 5.99kg, this set is interchangeable with SKF bearings, offering a practical solution for demanding industrial environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S7022 ACD/P4ATBTC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 84 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 19.05 mm
  • Ball Qty 20
  • Contact Angle 25°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Sealed
  • Matched Arrangement 3 bearings <>> TBT
  • Number Of Bearings In Matched Set 3
  • Universal Matching Bearing No
  • Preload Moderate / Class C
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 50625 lbf
  • Static Radial Load 69750 lbf
  • Lubrication Grease
  • Temperature Range - 30°C to 110 °C
  • Max Speed 16000 rpm
  • Weight 5.99 kg
Super Precision Angular Contact Ball Bearings S7022 ACD/P4ATBTC dimension drawing
Download DWG Download PDF

Features

Why Choose S7022 ACD/P4ATBTC Bearing for Precision Tasks?

S7022 ACD/P4ATBTC Bearing features a 25° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls ensure durability and high precision in demanding applications.

The sealed design and phenolic cage maintain consistent performance, even at high speeds up to 16,000 rpm.
Moderate preload (Class C) enhances stability, making it suitable for precision machinery.

With a dynamic radial load capacity of 50,625 lbf, S7022 ACD/P4ATBTC Bearing offers reliable operation.
The matched arrangement of three bearings ensures balanced load distribution and smooth performance.

Its temperature range of -30°C to 110°C allows use in various environments.
The P4A tolerance class guarantees exceptional accuracy for critical applications.

Application

Key Fields for S7022 ACD/P4ATBTC Bearing
S7022 ACD/P4ATBTC Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate radial and axial load handling. The sealed construction helps maintain performance in environments with dust or debris.

In robotics, S7022 ACD/P4ATBTC Bearing supports articulated arms and joints, providing smooth movement under moderate preload. Its phenolic cage reduces friction, making it ideal for repetitive motions.

For aerospace applications, S7022 ACD/P4ATBTC Bearing’s chrome steel rings and grease lubrication offer reliability in critical systems like flight control mechanisms. The P4A tolerance class ensures consistent performance under demanding conditions.

In medical imaging devices, S7022 ACD/P4ATBTC Bearing’s low vibration characteristics contribute to precise positioning of scanning components. The matched set arrangement enhances stability in high-speed rotations.
