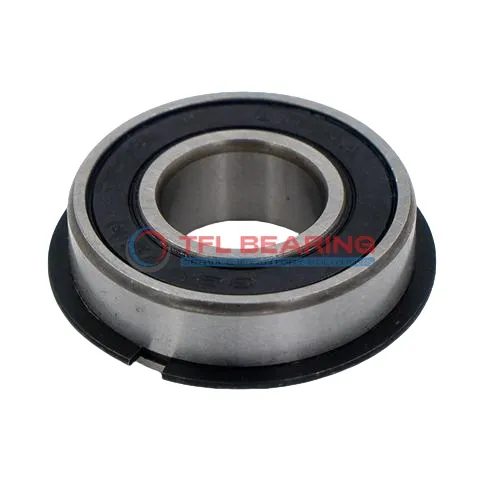

Snap Ring Groove Ball Bearings 6206-2RS1NR/C3 HT51

Snap Ring Groove Ball Bearings 6206-2RS1NR/C3 HT51

The 6206-2RS1NR/C3 HT51 is a snap ring groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 4384 lbf and spins smoothly at speeds up to 11000 RPM.

Its sealed design keeps dirt out and grease in, while the snap ring ensures a secure fit in housings. The C3 radial clearance allows for slight thermal expansion, making it reliable under varying temperatures.

This bearing is interchangeable with SKF models, offering a practical replacement option. It suits applications like electric motors or pumps where secure mounting and contamination protection are key.

Weighing 199g, it’s a compact yet robust choice. Compliant with RoHS and REACH standards, it operates well in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6206-2RS1NR/C3 HT51
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 67.7 mm
  • Width Of Snap Ring 1.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 4384 lbf
  • Static Radial Load 254 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 11000 rpm
  • Weight 199 g
  • Price（$） 6
Snap Ring Groove Ball Bearings 6206-2RS1NR/C3 HT51 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6206-2RS1NR/C3 HT51 Bearing

6206-2RS1NR/C3 HT51 Bearing is built with chrome steel rings and balls, ensuring durability under radial loads.
Its dynamic radial load capacity of 4384 lbf makes it suitable for various industrial applications.

The sealed design of 6206-2RS1NR/C3 HT51 Bearing protects against dust and moisture, enhancing its lifespan.
With a maximum speed of 11,000 rpm, it delivers reliable performance in high-speed conditions.

6206-2RS1NR/C3 HT51 Bearing features a snap ring groove for secure mounting, simplifying installation.
Its C3 radial clearance allows for thermal expansion, making it versatile in different environments.

The temperature range of -30° to 120°C ensures 6206-2RS1NR/C3 HT51 Bearing performs well in varying conditions.
Its chrome steel cage maintains ball alignment, reducing friction and wear over time.

Application

Common Applications of 6206-2RS1NR/C3 HT51 Bearing
The 6206-2RS1NR/C3 HT51 Bearing is widely used in industrial machinery, such as conveyor belts and pumps, where its sealed design protects against dust and debris. Its snap ring feature ensures secure mounting, making it ideal for high-vibration environments.

In automotive applications, 6206-2RS1NR/C3 HT51 Bearing is often found in electric motors and gearboxes, providing reliable performance under radial loads. The C3 clearance allows for thermal expansion, ensuring longevity in varying temperatures.

For automation systems, 6206-2RS1NR/C3 HT51 Bearing supports robotic arms and assembly lines, where precision and durability are key. The chrome steel construction offers excellent resistance to wear, even in continuous operation.

In household appliances like washing machines, 6206-2RS1NR/C3 HT51 Bearing ensures smooth and quiet operation. Its sealed design keeps out moisture and dirt, extending the lifespan of the appliance.
